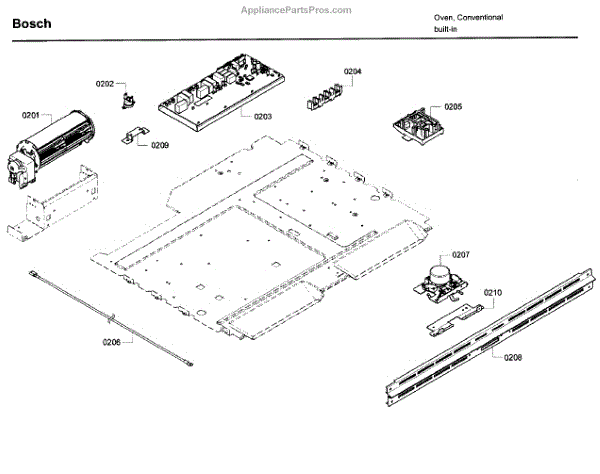

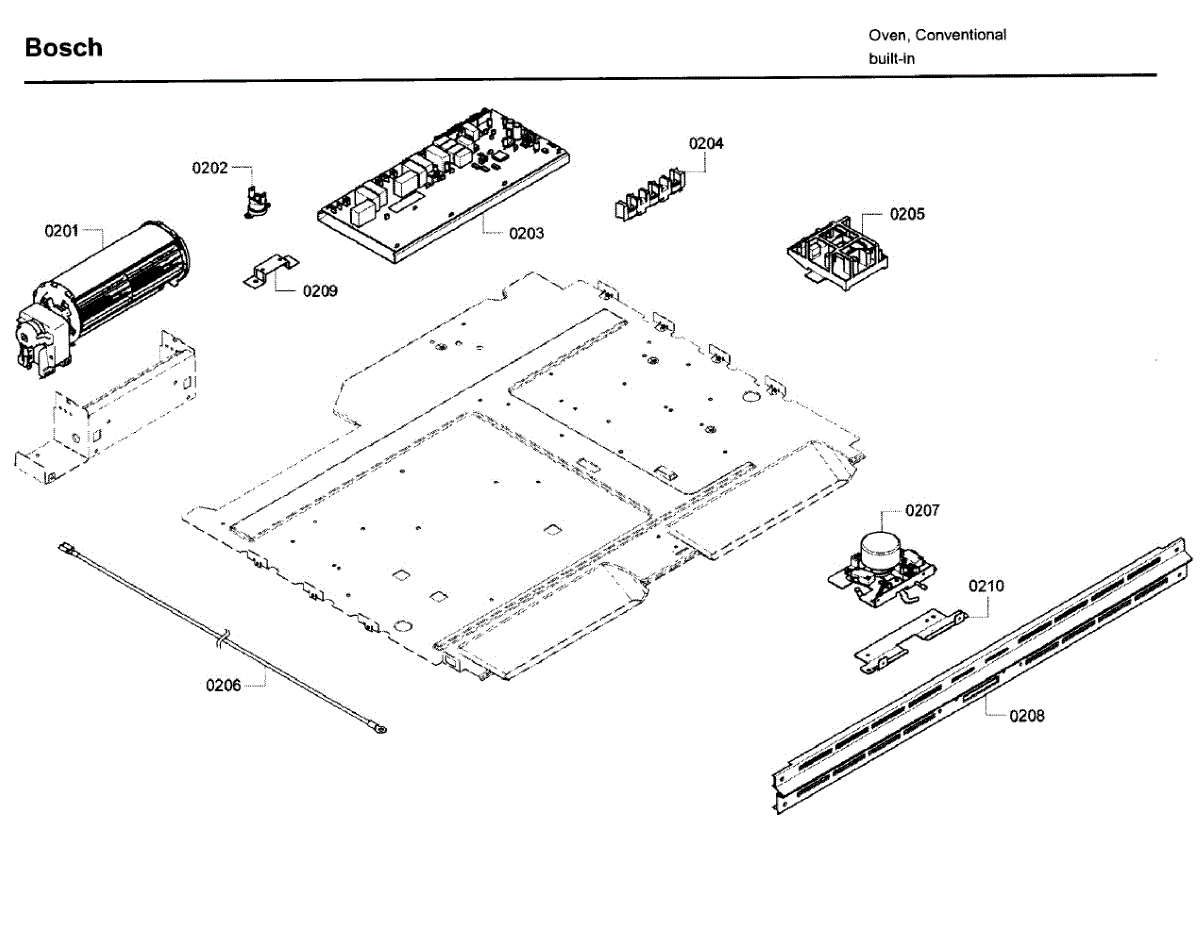

Parts for Bosch HBL3450UC/10: Latch Asy Parts

This is a cooling fan assembly used in wall ovens and ranges to circulate air and prevent overheating of internal components and surrounding cabinetry. It helps dissipate heat from the oven cavity and electronics during and after cooking cycles. Replace this fan if you notice excessive heat on the outer surfaces of the oven, the fan runs noisily or intermittently, or the oven displays overheating error codes.

Factory fixing kit with mounting hardware to secure panels, brackets, or trim on your wall oven. Replaces worn, missing, or damaged fasteners for alignment.

This electronic control board manages the oven and cooktop functions on a range, including temperature regulation, cooking mode selection, and display operation. It is mounted behind the control panel and connects to the various heating elements, sensors, and user interface. Replace this board if the oven fails to heat, displays error codes, has an unresponsive control panel, or if cooking temperatures are inaccurate.

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Relay is an OEM component specifically designed for select Bosch built-in ovens. As a basic electronic switch, it receives signals from the control unit to energize heating elements.

Durable plastic encapsulation protects delicate components from accidental spills. Precise switching facilitates customized baking and broiling temperatures within close tolerances.

Causes signaling relay failure related to prolonged thermal stresses from consistent oven use. Impacts of electric abnormalities could also cause malfunctions over time.

Symptoms requiring replacement include:

• Inability to power top or bottom heating elements during cycles
• Erratic temperature fluctuations beyond adjustment capabilities
• Buzzing or loud clicking noises emitting from the relay housing

This OEM Bosch replacement part is also compatible with Thermador, Gaggenau, and select Kenmore built-in ovens employing identical temperature modulation methods. Reinstallation ensures continued customizable and safe cycle performance.


Oven not heating or controls unresponsive? This cable harness restores power connections between controls and components, fixing intermittent failures.

Replace your wall oven door latch if the door won't stay closed, the oven won't start, or cycles are interrupted. Restores proper door closure and locking.

Secures wall oven panels and components in place. Replace this mounting bracket when the original is broken, bent, or missing, causing loose panels or misalignment.

This cable harness connects key electrical components to restore power and signal flow in the appliance. It replaces a damaged or faulty wiring harness to help return controls and components to normal operation. What it does:

• Carries power and control signals between the control board and components
• Replaces frayed, burned, or broken wires that cause intermittent or no operation
• Common symptoms it can address: appliance won't start, controls unresponsive, intermittent cycles, or error codes related to open/shorted circuits
• Helps ensure secure connector mating and correct signal routing when installed properly

• Disconnect power at the breaker or unplug the appliance before starting any repairs
• Compare the new harness to the old one and follow the appliance wiring diagram for correct routing and connector placement
• Secure connectors fully; avoid sharp bends or pinching the wires during reassembly

Wall oven not heating or displaying errors? A faulty cable harness often causes electrical failures. This internal wiring assembly typically requires 1-2 hours to replace with moderate skill.

Wall oven not heating or display not working? This cable harness connects electrical components. Common fix for power issues. DIY repair in 30-45 minutes.

This cable harness delivers the electrical connections between control circuits and components so your appliance can receive power and communicate signals reliably. Replacing a worn or damaged harness restores proper electrical connectivity and control response. What it does:

• Routes power and signal wiring between the control board and components.
• Restores lost power or intermittent operation caused by broken, chafed, or corroded wires.
• Stops control errors and communication faults that show as failed cycles, unresponsive buttons, or error codes.
• Keeps wiring organized and secured to prevent shorting or pinched cables.

• Disconnect power to the appliance before beginning any work to avoid shock.
• Note wire routing and connector locations before removal; replace connectors in the same positions.
• Handle terminals gently to avoid bending pins; ensure connectors are fully seated.
• If routing through clips or tie-downs, secure the harness to prevent contact with moving or hot parts.
