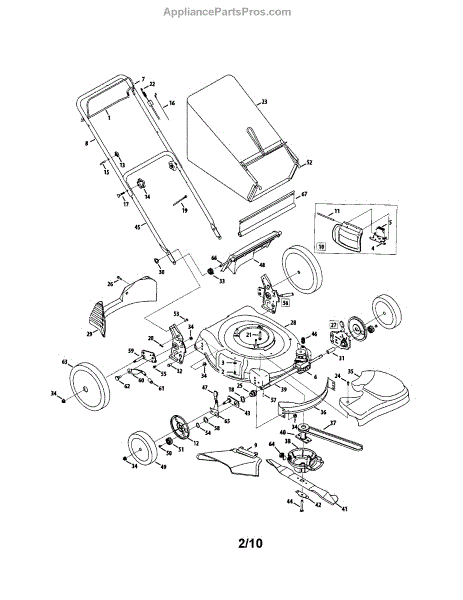

Parts for Mtd 560-MOWER: Lawn Mower Parts

Drive bail handle for walk-behind and self-propelled mowers. Mounts to the upper handle assembly. Replace if cracked, bent, or broken for safe operation.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Adapter plate for lawn mowers. Mounts between components to ensure proper alignment and secure attachment. Replace if cracked, bent, or missing.

Replace a broken torsion spring causing handle slack or engagement issues on your lawn mower. Common DIY repair restores proper tension and operation.

Mower won't move or drive wheels slip? This transmission assembly connects the engine to drive wheels, restoring self-propelled function on walk-behind mowers.

This control handle is designed specifically as a replacement for use on select walk-behind lawn mowers. The control handle is the safety that is engaged to allow the engine to run. When holding the control handle in, the pull start can be activated and the engine will run. Once the control handle is released, the engine will stop. In the event that the control handle becomes damaged or fails, it will need to be replaced so that the mower can continue to be used. This handle can provide a genuine replacement for compatible models. This control handle is manufactured to exact standards by MTD and provides an exact fit. It is compatible with hundreds of models, including select models from RYOBI, Yard Machines, Troy-Bilt, Yard-Man, Husky, Bolens, and Cub Cadet. This part is also known as the control bar, control handle, engine stop handle, bail control, or mower bail. It is made of durable metal and sold individually. No tools are required for the installation of this part. To replace the handle, simply squeeze the existing control handle to remove it from the outer handle, and then align the new handle and slide it into place. When properly installed, the pressure will hold it in place and allow for proper operation.

Upper handle for walk-behind mowers. Mounts at the top of the handle assembly to control mower movement. Replace if cracked, bent, or broken from impact.

Replacement discharge chute for 21-inch walk-behind mowers. Directs grass clippings from the deck during discharge. Needed when original is cracked or missing.

Mulch plug assembly for walk-behind mowers. Blocks the discharge chute opening to enable mulching mode. Replace if cracked, broken, or missing.

Hinge pin fastener for lawn mowers. Secures moving components and panels. Replace if bent, missing, or damaged to restore proper attachment and function.

Wheel dust cap for lawn mowers. Covers the wheel hub to protect bearings from dirt and debris. Replace if cracked, broken, or missing from your mower.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

Star knob connects upper and lower handles on lawn mowers and outdoor equipment. Replace if threading is worn, cracked, or knob is missing for secure assembly.

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

Control cable for gas walk-behind mowers. Installs to operate speed control or drive engagement. Replace if cable is frayed, broken, or stretched.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Wave washer provides cushioning between shaft assemblies in your mower. Replace if missing, damaged, or worn to prevent excessive vibration and wear.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Grass catcher bag for walk-behind mowers. Attaches to cutting deck frame to collect clippings. Replace if torn, worn, or damaged for proper collection.

The shoulder screw is used in places where a spacer or bearing surface is needed, since the top half of the screw is unthreaded. These fasteners are often used for guides, pivot points, mounting pins, axles, and even a shaft for bearings and bushings in various MTD engines. With regular use, the screws can wear down or be lost. Always repair the missing hardware promptly with genuine OEM replacements. Disengage the spark plug and wear gloves when performing work on engines for safety. This genuine OEM replacement shoulder screw has been designed to be compatible with machines from MTD, Troy-Bilt, Yard-Man, Yard Machines, Bolens, Cub Cadet, and Craftsman. It can be used for multiple applications and in multiple locations in different models of lawnmowers, tractors, and chippers that use the screw in various applications. Check your parts diagrams for the exact location and use of these screws before ordering. This is sold as an individual unit; order multiple quantities as needed.

Hex washer head screw for lawn mowers and snow blowers. Replace worn, stripped, or missing fasteners on deck, housing, or engine components.

Height adjustment assembly for walk-behind mowers. Installs on the deck to control cutting height. Replace if cracked, broken, or mechanism worn.

Height adjuster for lawn mowers. Controls blade cutting height settings. Replace if lever is broken, cracked, or won't hold adjustment position securely.

Replace your cracked or damaged 21-inch mower deck. This structural component houses the blade assembly on self-propelled walk-behind mowers.

Rear baffle for 21-inch walk-behind mowers. Directs grass clippings and airflow under the deck. Replace if cracked, bent, or missing for proper cut.

This is a genuine wing nut replacement designed for use in select walk-behind lawn mowers. Although some wing nuts are considered standard hardware on lawn mowers and other equipment, this specific wing nut connects to a bolt and secures the front baffle to the deck of the mower. Over time, this plastic wing nut can crack, fall off, or the threads may become damaged. This will result in the mover assembly being affected and the unit may not be able to be used until the nut has been properly replaced. This genuine replacement part will provide the exact fit for compatible mowers. This genuine OEM wing nut is manufactured to exact standards and comes from MTD. It can be used with hundreds of walk-behind lawn mower models from the brand, as well as those from Cub Cadet, Ryobi, Troy-Bilt, Bolens, Yard Man, Yard Machines, and Huskee. This plastic wing nut is sold individually. The carriage bolt that it connects to will need to be purchased separately if that also needs to be replaced. No tools are required for this installation, as it can simply be hand-tightened into place. Wear gloves for hand protection when performing equipment repairs.

Hex screw for lawn mowers and outdoor power equipment. Secures components and panels. Replace if stripped, rusted, or missing for proper assembly.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Replace the transmission cover on your walk-behind mower. Protects internal components from debris. Order a new cover if yours is cracked or missing.

Front baffle for lawn mowers. Installs in the deck area to direct airflow and debris. Replace if cracked, broken, or missing for proper operation.

This V-belt is a genuine MTD part, sold individually. This V-belt can be used as a replacement part for lawnmowers. The v-belt of a lawn mower is operated by a network of pulleys that work in conjunction to turn the belt powered by the engine. The purpose of the V-belt for a lawnmower is to rotate the lawnmower blades.A V-belt might suffer damage that can stop the belt from helping the lawn mower blades to rotate and mow effectively. Symptoms of a damaged v-belt can include visible cracks, deterioration, or erosion, or visible damage to the side wall. If any of these symptoms are attributable to a malfunctioning or damaged V-belt, the component should be removed and replaced with this genuine OEM replacement part before operating the lawn mower again. Remember to wear gloves when handling, repairing, and using outdoor equipment.This is an OEM part sourced directly from the manufacturer, and it is sold individually. This V-belt is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard-Man, and MasterCut.

This replacement part is an adapter assembly. It is a genuine replacement part made by MTD. This part is usually found in different types of lawnmowers and assists the blades during use. This keeps the appliance running smoothly so that the user is able to operate it effectively. A new adapter assembly might be needed if the user notices the blades are not working up to speed. This can be due to a stripped adapter assembly and it is best to replace this part as soon as possible. Be sure to wear work gloves during this repair as this assembly is situated close to the blades. Refer to the owner's manual for more information.This adapter assembly is a genuine OEM replacement part to ensure long-lasting use. This part is sold individually and is sourced directly from the manufacturer to ensure a proper fit.

Metal blade support spacer that mounts between the mower blade and bolt. Secures the blade to the deck base. Replace if worn, damaged, or missing.

Hex screw fastener for lawn mower and lawn tractor small engines. Secures components together. Replace if lost, stripped, or corroded during maintenance.

Compression spring for gas walk-behind mowers. Installs in the drive or control mechanism. Replace if worn, broken, or missing to restore proper fit.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

Replacement 8-inch wheel assembly for self-propelled walk-behind mowers. Installs on rear or front axle. Needed when original wheel is cracked or worn.

Replacement screw for gas walk-behind and self-propelled mowers. Secures components and housing panels. Needed when original is stripped or missing.

Fix mower that won't move or has grinding noises with this 14-tooth left-hand spur gear. Essential transmission component for self-propelled models.

Replace your lawn mower's worn or damaged 14-tooth right-hand spur gear. Fits gas walk-behind, self-propelled, and hi-wheel mowers. Order now.

21-inch grass catcher frame for walk-behind mowers. Holds and secures the fabric bag that collects clippings. Replace if bent, broken, or cracked.

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

Handle bracket assembly for walk-behind mowers. Mounts and secures the handle to the mower deck. Replace if bracket is bent, cracked, or broken.

Dowel pin fastener for lawn mowers and outdoor power equipment. Secures two components together. Replace if damaged, worn, or missing during repairs.

Pivot arm assembly that connects the wheel to the spring arm on walk-behind mowers. Replace if broken, cracked, or worn to restore proper height adjustment.

This replacement part is an arm assembly, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This part is typically found in lawn mowers that uses handles to steer and turn. This arm assembly is what allows the user to control the appliance and use it properly while cutting lawns. A new arm assembly might be needed if the user notices that the current arm or handle area is broken or damaged in anyway. It is possible for the arm assembly to become worn down overtime including being stripped of the color or coating. The user might want to replace the arm assembly simply for looks. Be sure to wear work gloves during this replacement as the old arm might be sharp or rigid. This arm assembly is sold individually. This replacement part is a genuine OEM part sourced directly from the manufacturer

Foam grip for lawn mower handles. Provides comfortable cushioning and vibration dampening. Replace if worn, cracked, torn, or missing for better control.

Left-hand spring lever for lawn mowers. Installs on the handle assembly. Replace if lever is bent, broken, or missing to restore proper operation.

Rear deflector shield for walk-behind mowers. Mounts to the deck to prevent grass from expelling rearward. Replace if cracked, broken, or missing.
