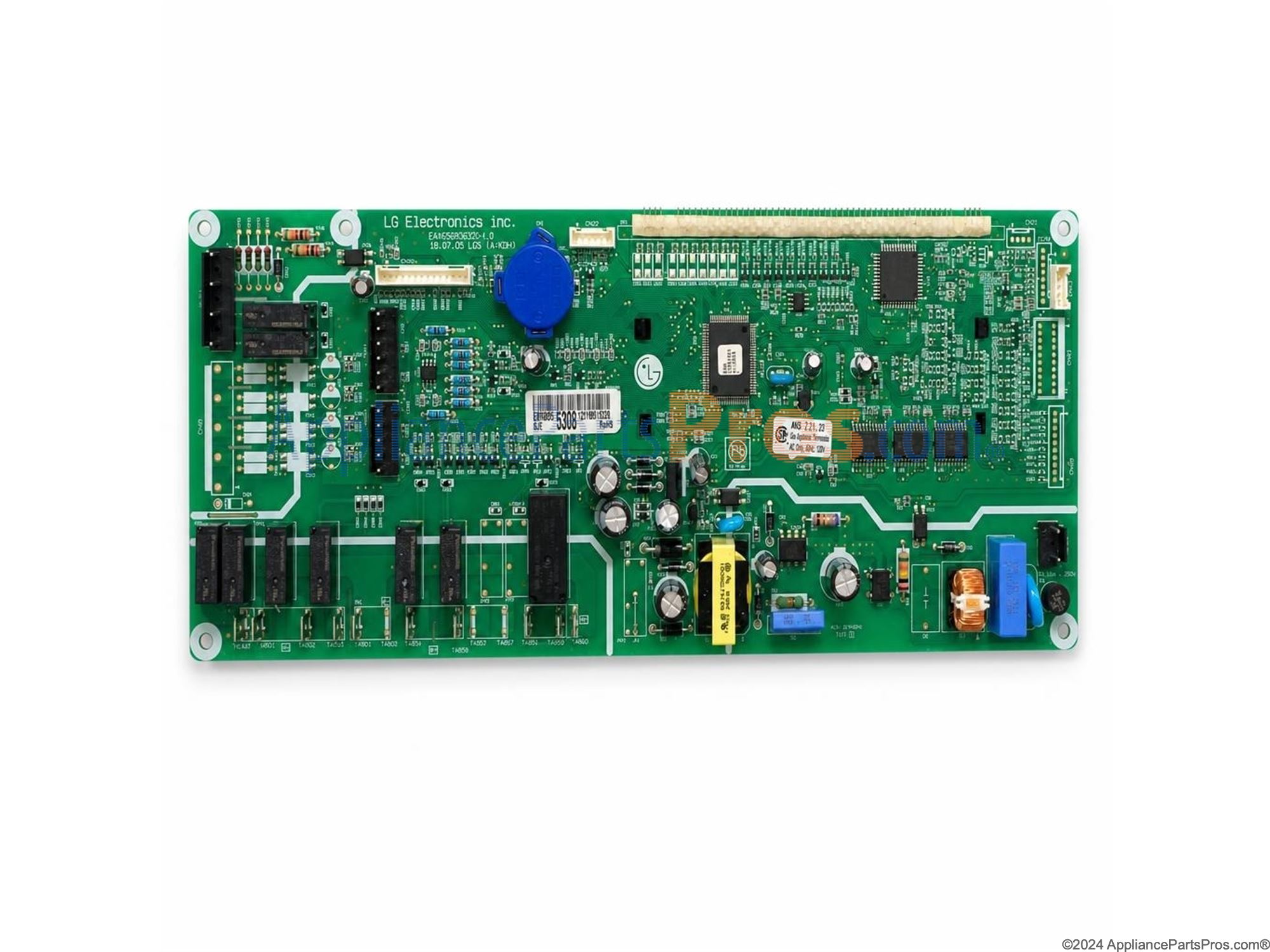

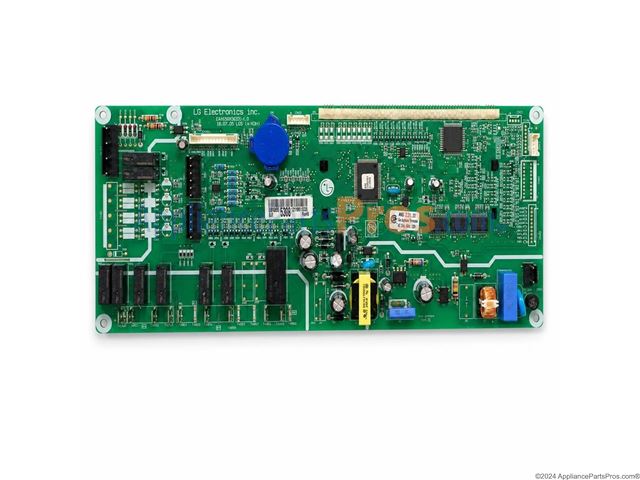

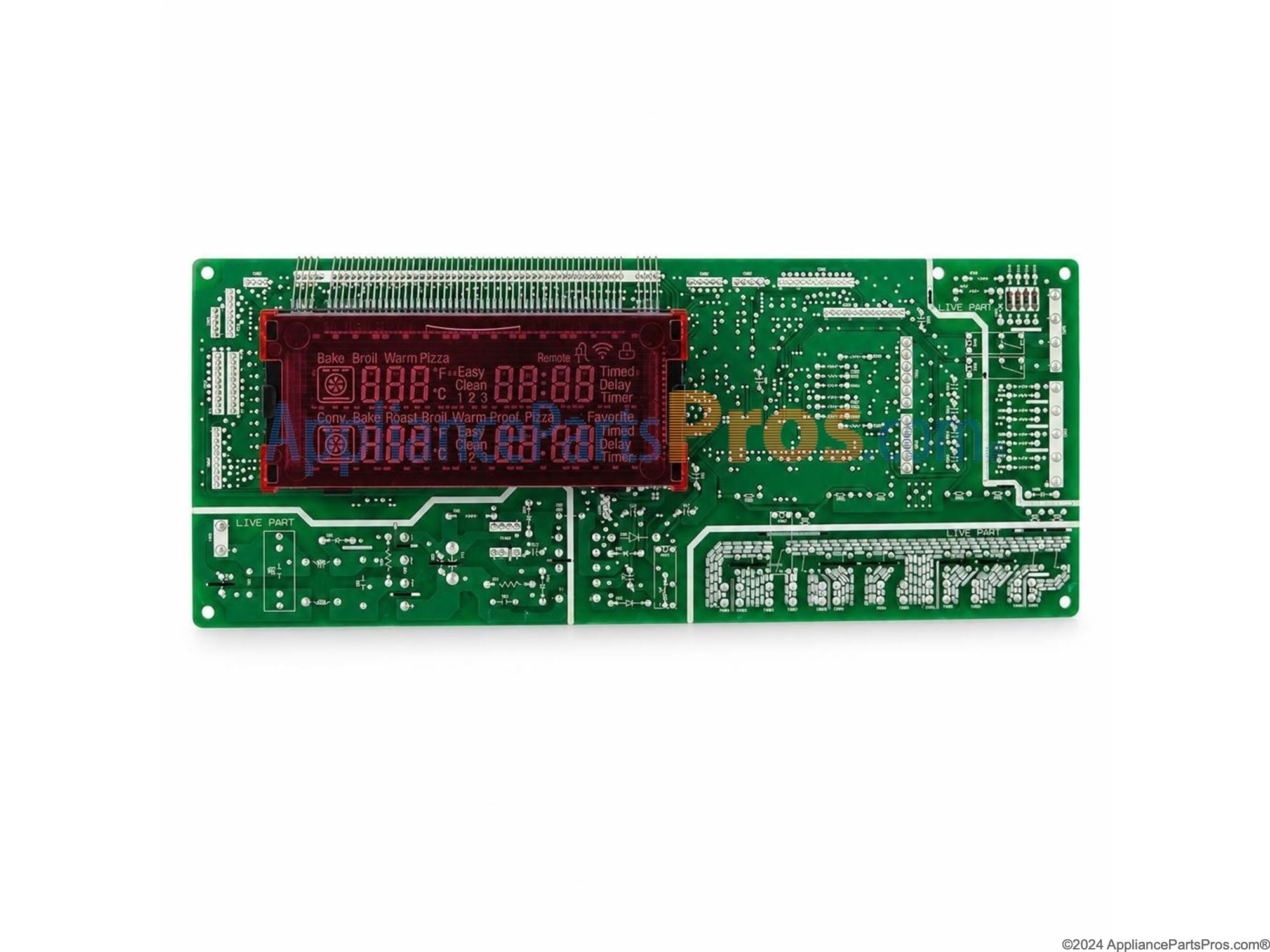

Lg EBR80595308 Main Control Board (Pcb Assembly) OEM Part

Product Details

Genuine Lg part.

Cross Reference Information

Part Number EBR80595308 replaces AP6026704, 4210570, PS11758505.

Description

This is the appliance's main electronic control board (PCB). It governs sensing, timing, and power to key components so the unit responds to the controls and runs cycles correctly when the original board has failed. What it does:

• Interprets inputs from sensors and the user interface to execute programs
• Distributes power to motors, valves, heaters, fans, and lights via onboard relays
• Controls cycle timing, temperatures, and speeds
• Monitors for faults and stores/displays error codes

Common symptoms:

• No power to the controls or unresponsive buttons/knob
• Cycle won't start, pauses, or stops mid-cycle
• Intermittent/erratic operation or repeated error codes
• Incorrect temperatures, speeds, or functions despite correct settings
• Visible burn marks or damage on the original board

What's included: One main PCB (electronic control board) assembly Install notes:

• Disconnect power before servicing; follow ESD precautions and handle the board by the edges
• Photograph/label all connectors and transfer any jumpers or settings from the original board
• Ensure harnesses are fully seated and the board is mounted securely
• Some models require calibration or service-mode programming after installation.
