Thomas V Temecula , CA March 11, 2020 Appliance: LG Refrigerator LFX25991ST05 Micro switch replacement on LG lfx25991st refrigerator. After my layman's diagnosis (hope) of a bad micro switch to the ice dispenser (would not activate and dispense ice through the chute) I purchased the both the ice and water dispenser micro switches (kill two birds with one stone). Albeit the video attached to these parts may be helpful to some it was not applicable to my refrigerator, as you could not access it from the front by removing the exterior dispenser plate. Don't try this on the LG, LFX25991ST series, refrigerator or you may break it causing you additional headaches. I would be in denial if I said I was not concerned with pulling out the entire panel dispenser / electronics panel from the door. I was worried about scratching or denting the stainless steel, or breaking the plastic panel insert itself. I used a 9-in-1 Multi-Purpose Tool, as I found this sturdier than the hard plastic putty knife I originally attempted to use. After getting the courage to force this insert away and out of the door I started at the bottom (after removing the water catch basin). I pried the handle upwards to until I heard a "pop" and was able to pull the bottom out about a 1/4 inch. I then worked my around to the right as you face the door, hearing additional "pops" as I did so, pulling on the insert a little at a time as I went around (bottom, right and top). I did not have to actually use the tool on the left side where the electronics are located, as it seemed to loosen up as the other three sides wiggled out of the door panel. After a couple moments I was able to pull it out completely without breaking any of the tabs. The switch was easily accessible at this point. It was heavily corroded at the wire terminal connection. I cleaned the terminal the best I could. The screw that holds it in place was also heavily rusted, but I cleaned it up too and reused it. This fix worked like a charm! Read More... 33 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Screwdrivers

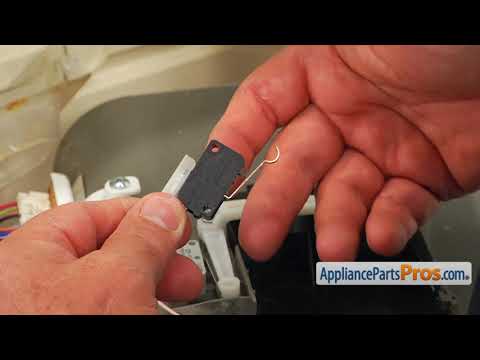

Steven M San Diego , CA September 29, 2017 Failure to dispense ice. Replaced micro switch, easy fix. Used stiff bladed putty knife to pry out bezel, then screwdriver to remove old, corroded and obviously non-functional micro switch. Electrical terminals also corroded; took a chance and just installed new one without doing anything about the corrosion. It's working so far. Here is a tip : there are 2 micro switches shown in the parts drawing, one for the ice dispensing and one for water dispensing without clear depiction as to which is which. The one with the straight blade actuator is for the ice dispenser, the hooked blade is for the water. I bought them both before I took it apart, I only wanted to do that once! Read More... 146 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Screwdrivers
Sunil D Winter Garden , FL November 20, 2020 Refrigerator not making ice It was super easy with the diagrams on the site to find the parts that I needed. Everything was shipped within a day and fit perfectly. I save myself about $400 from having a professional come out to do it. Read More... 3 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 1-2 hours Tools: Pliers, Screwdrivers
Jason R Roseville , MN March 18, 2023 Appliance: Model LFX21976ST-05 Ice maker chute closed early causing ice to build up and freezer into huge chuck blocking the chute Replaced Dispenser Switch and the Ice Dispenser Door Motor. It seemed from Youtube videos that it was the Dispenser Switch but just decided to change them both out. I only did two tests after swapping the Dispenser switch (one screw and the wire connector thing is all that holds it in) and the ice dispenser kept the chute open as long as I held it. Still swapped the motor out. I wanted to swap out the Ice Bucket Assembly as it cracked on the bottom when trying to clear out one of the "ice damns" previously before I figured out what was really happening. This video was the only one I found that was directly the problem I was experiencing https://www.youtube.com/watch?v=Mc9aUfHUgSw Got ice door front panel off using putty knife (seen in a lot of videos) and this one which didn't work until I loosed a few of the top and top sides first. https://www.youtube.com/watch?v=7V37EHMJjZQ Lock the fridge water and ice dispenser in case you press the buttons as you'll get water and ice on the floor. Read More... 2 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
Brian V Gibsonia , PA August 29, 2020 Appliance: LG Refrigerator LFXS29766S/00 My LG refrigerator wouldn't stop dispensing water I examined the water intake in the back and found no issues. After some research, the suggestion was to replace the switch, due to corrosion. The unit was only two years old, but I ordered the part. The most challenging part was taking apart the front panel. I broke one of the clips, but the YouTube videos said this would be expected. After uncoupling the wires from the panel to the main unit, I decided to test before replacing the switch. After pushing the switch from the inside a few times, the pump that dispenses the water in the main unit stopped humming. I examined the part and everything appeared to be in order. Decided to not replace the switch and reassemble the unit. Everything has been fine for the past four days, but still keeping the bucket on the floor in case the unit decides to start randomly dispensing water again. Read More... 2 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes
