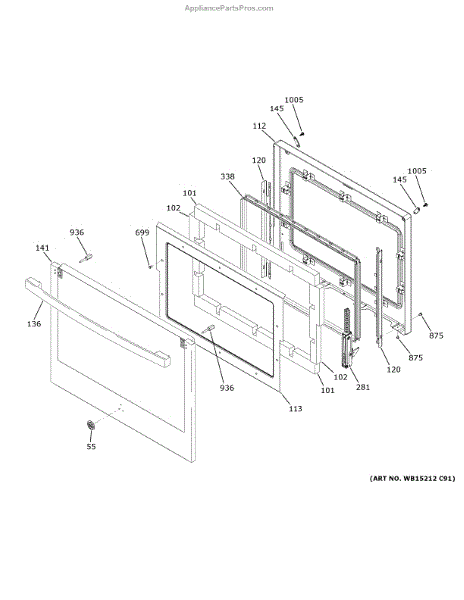

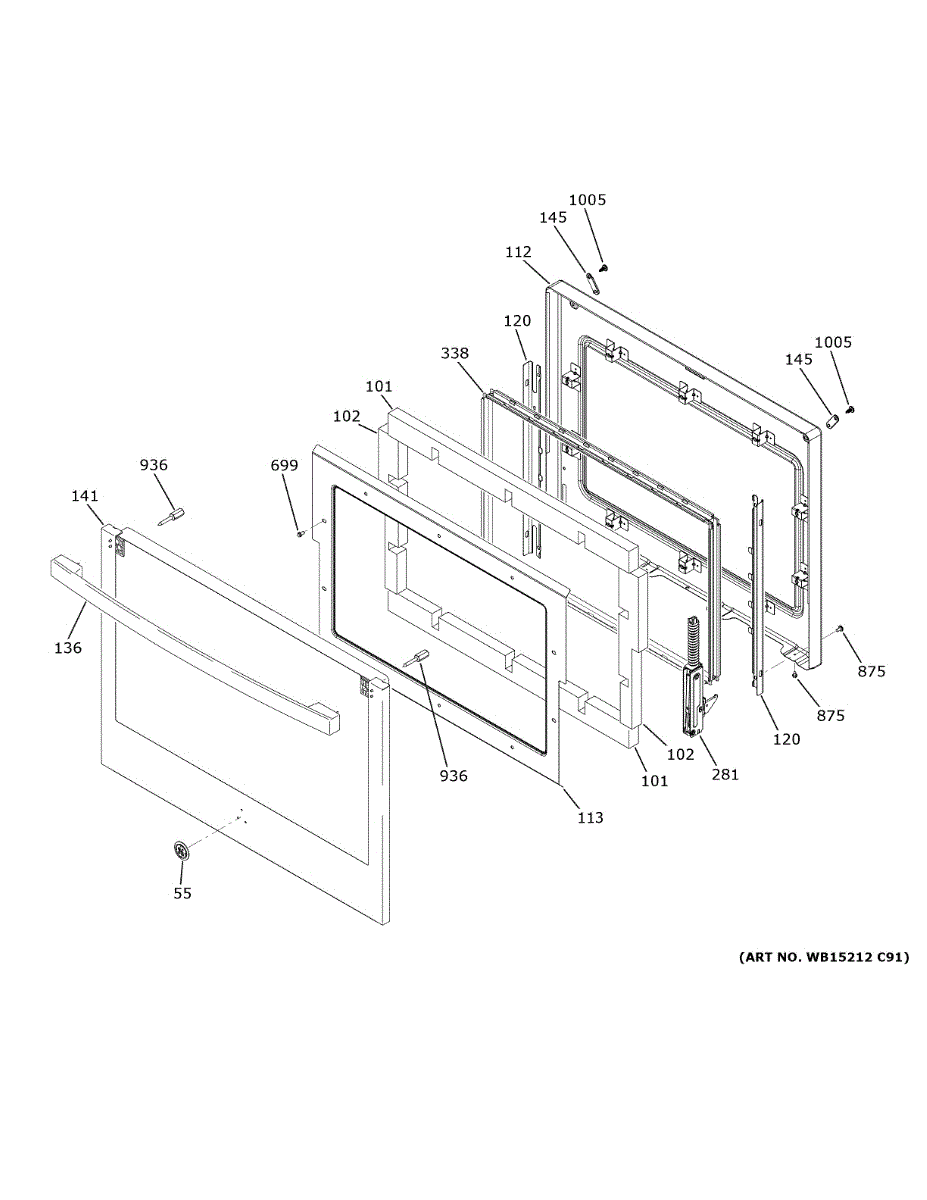

Parts for Ge JTD5000SN2SS: Lower Door Parts

The Badge Assembly is an OEM part for GE ranges. It includes the magnetic decorative badge affixed to the front of the range. This badge displays important information such as the brand name, model number, and technical specifications.

Causes of a bad badge assembly can include damage from impacts or abrasions over time, adhesive failure from repeated heat exposure, or normal wear from routine cleaning. On a range, the badge must withstand higher cooking temperatures.

Symptoms of a bad badge assembly include:

• Faded or illegible print on the badge face
• Cracks or breaks in the plastic material
• The badge lifting or peeling away from the surface
• Missing or loose attachment clips/fasteners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This door insulation retainer is a small plastic clip that secures insulation inside a refrigerator/freezer door to help maintain proper temperature and reduce noise. It replaces worn or missing retainers to keep the door liner insulation in place. What it does:

• Secures the door insulation to the inner door liner so insulation stays positioned
• Helps prevent insulation from shifting or sagging that can affect door seal performance
• Commonly used when insulation falls out or the liner shows gaps around the insulation
• Works as a direct-fit replacement for the original retainer designed for the door assembly

• One door insulation retainer clip

• Installation generally requires removing the door panel or liner; keep track of fasteners and trim
• Handle the door liner and insulation carefully to avoid damage or tearing the insulation
• Use proper tools and disconnect power if working near electrical components or lights
• Replace all affected clips for an even, secure fit

A replacement liner support that secures the refrigerator cabinet liner and keeps interior trim and panels aligned for a proper seal and appearance. Restores stability to cracked or broken support points. What it does:

• Holds the cabinet liner and interior trim in position to prevent gaps and movement
• Helps maintain door seal alignment by keeping liner edges stable
• Reduces rattling or shifting caused by a damaged support
• Commonly replaced when liner pieces are cracked, broken, or loose

• One liner support

• Disconnect power to the appliance before beginning any repair
• Remove food, shelves, and trim pieces as needed to access the damaged support
• This part typically secures with clips or fasteners; inspect existing hardware and replace if necessary

The Stainless Steel Handle and Endcap is an OEM part for GE wall ovens. The handle and endcap provide an aesthetically pleasing and durable finishing touch at the openings of the wall oven.

Causes of a bad handle and endcap can include normal wear and tear over time, exposure to harsh cleaners or accidental impacts that lead to damage or looseness.

Symptoms of a bad handle and endcap include:

• Looseness or wobbling when gripped
• Dents, scratches or cracks in the material
• Discoloration that won't wipe clean
• Handle difficult to grasp or open door with

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This outer door replaces a damaged or dented front door panel and restores the appliance's appearance and sealing surface. The stainless finish and factory badge maintain the original look and fit for compatible models. What it does:

• Replaces a warped, dented or scratched outer door panel to improve appearance
• Restores the front sealing surface and alignment for proper door closure
• Replaces a door with a loose or missing badge or cosmetic trim
• Helps eliminate gaps that can lead to temperature or performance issues when the door is damaged

• Replacement requires removing the existing door; follow manufacturer instructions and support the door weight to avoid damage or injury
• Keep work area clear and disconnect power if working near electrical components
• Handle stainless surfaces with a soft cloth to avoid scratches; use manufacturer-approved fasteners when reassembling
• If hinges, gaskets or mounting hardware are damaged, replace them separately

This door liner plug snaps into the inner door liner to cover fastener or access holes. It restores a clean, finished look and helps keep grease and debris from entering the door assembly.

• Covers exposed holes in the inner door liner
• Replaces a missing, loose, or damaged plug/cap
• Helps protect the door cavity from splashes and debris
• Restores a neat, factory-finished appearance

• Disconnect power before servicing; for gas ranges, also shut off gas. Allow the appliance to cool completely.
• Open the door and gently pry out the old plug with a plastic trim tool or flat-blade screwdriver.
• Align and press the new plug into the liner until it seats flush.
• Support glass and follow the manufacturer's instructions.

The Window Pack Assembly is an OEM part for GE ovens. This component includes the oven door window and its associated parts, providing visibility into the oven cavity during cooking. It helps retain heat within the oven while allowing users to monitor the cooking process without opening the door.

Causes of a bad window pack assembly can include thermal stress from repeated heating and cooling, accidental impact, or general wear and tear. A damaged window can compromise the oven's efficiency and safety by allowing heat to escape.

Symptoms of a bad window pack assembly include:

• Cracks or damage to the window glass
• Heat escaping from the oven door
• Condensation or discoloration between the window panes
• Difficulty seeing through the window during cooking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This reinforcement spacer assembly provides structural support for appliance panels and mounting points to maintain proper alignment and reduce movement. It helps restore secure panel fit and prevents rattling or gaps caused by worn or damaged spacers. What it does:

• Reinforces mounting points and panel connections to maintain correct alignment.
• Stabilizes panels and components to reduce vibration and rattling noises.
• Helps prevent gaps or misalignment that can affect door/panel sealing or operation.
• Commonly replaced when the original spacer is cracked, broken, or missing and causes loose panels.

• Disconnect power to the appliance before beginning any repair.
• Use appropriate hand tools; tighten fasteners snugly but avoid over-torquing.
