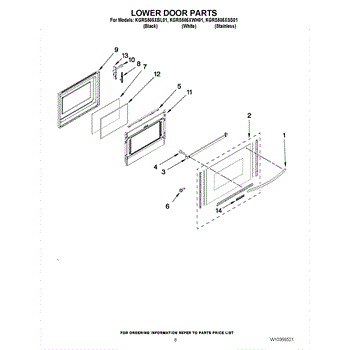

Parts for Kitchenaid KGRS505XWH01: 06 - Lower Door Parts

Parts for Kitchenaid KGRS505XWH01: 06 - Lower Door Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: W10289074

White range door handle for opening and closing your oven. Replace this cosmetic part if your current handle is cracked, broken, discolored, or missing.

More
$142.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1
By: Whirlpool
Part Number: W10289075

Black range door handle for your oven. Replace a cracked, broken, or missing handle. Mounts to the front of the oven door for opening and closing access.

More
$139.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1
Product photo
By: Whirlpool
Part Number: WPW10289076

This is a stainless steel door handle for a wall oven or microwave. It mounts to the exterior of the door and provides a grip for opening and closing. Replace this handle if it is cracked, loose, or broken, making it difficult to safely open or close the appliance door.

More
$159.73

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
2
Product photo
By: Whirlpool
Part Number: W10346116

Color: Black

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10346119

The lower outer door glass is the glass panel fitted to the bottom section of a multi-pane oven or appliance door, serving as the exterior-facing layer of the lower door assembly. It provides a heat-resistant barrier and gives the door a finished appearance while helping to insulate the oven cavity. Replace this part if the glass is cracked, shattered, or has become cloudy or discolored in a way that cannot be cleaned.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
5.0 (1)
By: Whirlpool
Part Number: W10346127

Color: Stainless

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo
By: Whirlpool
Part Number: WPW10294695

Mounting bracket for range installation. Secures appliance to cabinet or wall. Replace if bracket is bent, broken, or missing during installation.

More
$73.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4
Best Seller
Product photo
4.8 (6)
By: Whirlpool
Part Number: WPW10317886

Replacement screw secures door handles, panels, and brackets on your range or oven. Install when original screws are stripped, missing, or damaged during repairs.

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
5
By: Whirlpool
Part Number: WPW10272594

Replace your range oven door window frame if cracked, broken, or missing. This structural component holds the glass in place on the oven door assembly.

More
$133.64

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6
Product photo
5.0 (1)
By: Whirlpool
Part Number: WPW10292297

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

  • Fastens components to frames, brackets, or panels
  • Helps reduce vibration, rattling, and misalignment
  • Replaces missing, stripped, or corroded screws
  • Correct 8-32 machine thread for tapped holes in compatible assemblies
What's included: One 8-32 x 3/8 screw Install notes:
  • Disconnect power before servicing; shut off gas or water if applicable
  • Start threads by hand to avoid cross-threading
  • Tighten snugly without overtightening to prevent stripping

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP9757706

Inner glass pane for oven door window. Installs inside the door frame. Replace if shattered, cracked, or broken to restore safe viewing and thermal insulation.

More
$92.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
8
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPW10335433

Replace your right oven door hinge to restore proper alignment and smooth operation. Fixes sagging doors and gaps for a secure seal. Confirm fit by model.

More
$58.43

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
8
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPW10335434

Replace your oven's left door hinge to restore smooth opening and closing. Fixes door sag, misalignment, and sealing issues. Verify fit with your model.

More
$57.39

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9
By: Whirlpool
Part Number: WPW10292008
$136.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
10
Product photo
5.0 (4)
By: Whirlpool
Part Number: WP4449743

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

  • Provides the designated bonding point for the grounding wire/strap
  • Fastens to the frame or terminal area using 8-32 machine threads
  • Helps maintain a consistent ground path for safe operation
  • Typical reasons to replace: stripped head/threads, corrosion, or a missing screw
What's included: 1 ground screw Install notes:
  • Disconnect power at the breaker or unplug the appliance before servicing
  • Route the ground wire/strap to the specified grounding location
  • Start threads by hand to avoid cross-threading; tighten snugly without overtightening
  • Ensure the ground connection is secure and complies with local electrical codes before restoring power

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
11
By: Whirlpool
Part Number: W10340464

Secures the control panel on your range. Replace this retainer if it's cracked, broken, or missing to keep the panel properly mounted and aligned.

More
$123.67

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
12
By: Whirlpool
Part Number: WPW10321285
$43.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
By: Whirlpool
Part Number: WPW10272329

Replacement hinge receiver for range oven doors. Secures the door hinge to the frame. Replace if cracked, broken, or worn to restore proper door support.

More
$48.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
By: Whirlpool
Part Number: WPW10272328

Replacement oven door hinge receiver for ranges. Mounts to the oven frame to secure the door hinge. Order a new receiver if yours is cracked or broken.

More
$55.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14
Product photo
By: Whirlpool
Part Number: WPW10243392

Color: Black

More
$49.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
