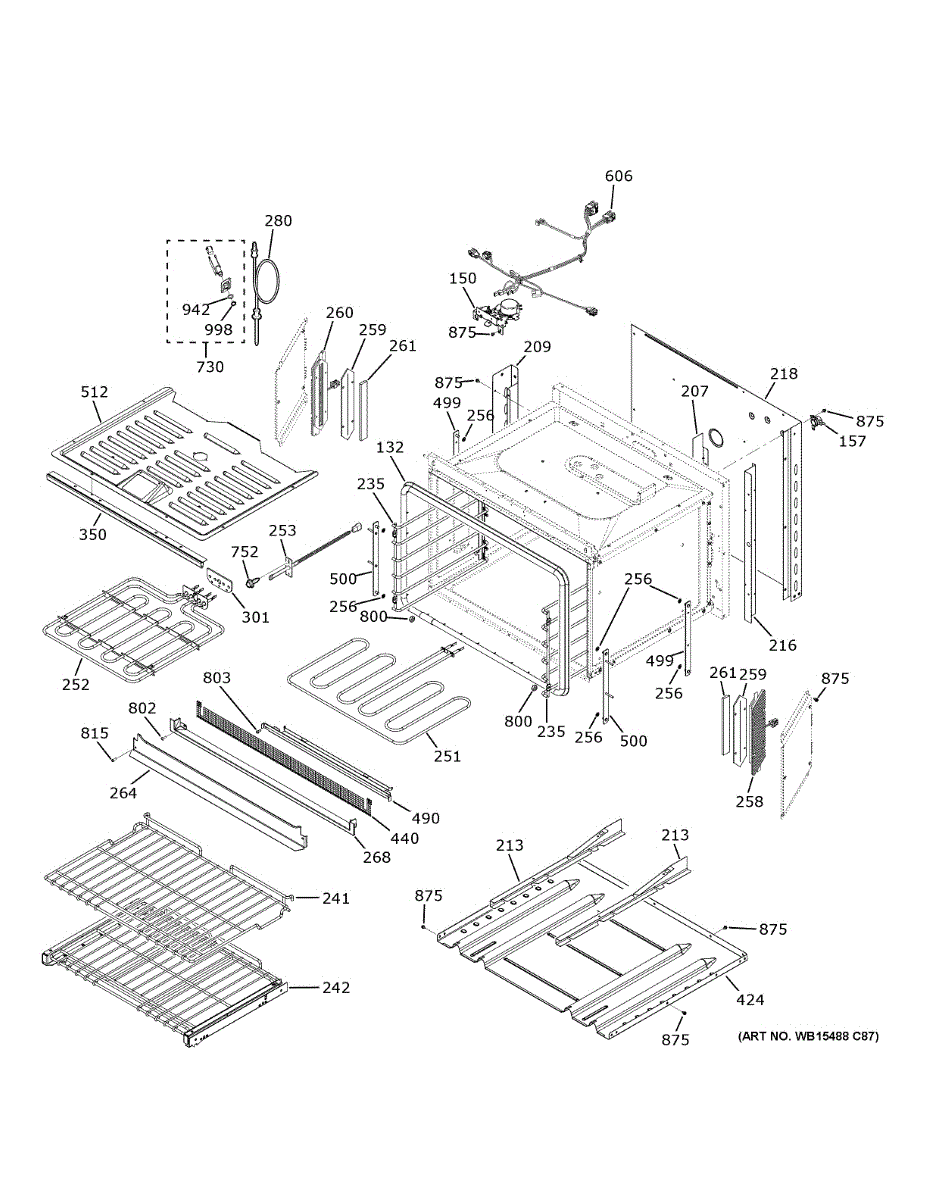

Parts for Ge ZTDX1DPSN4SS: Lower Oven Parts

Fix an oven door that won't open or close properly. This latch assembly includes the oven light switch and secures your oven door during operation.

Fixes oven not heating after self-clean cycle. This thermal safety switch cuts power when temperatures get too high. Simple diagnosis with continuity test.

This air center divider is the interior air baffle that directs airflow inside the refrigerator compartment for more even temperature control and circulation. It replaces a cracked, missing, or damaged center air divider to restore normal airflow paths. What it does:

• Guides cooled air through the refrigerator compartment to help maintain even temperatures
• Prevents air leaks and improper circulation caused by broken or warped dividers
• Helps reduce warm spots and uneven cooling inside the fresh-food section
• Restores proper airflow after impact damage or plastic fatigue

• One air center divider

• Disconnect power to the appliance before starting any work
• Remove shelves and related trim to access the center air baffle; retain all fasteners
• Handle plastic tabs/clips gently to avoid breakage during removal and installation

Replace a worn or broken right-side oven rack guide to restore smooth rack movement and stable support. Prevents binding and keeps racks aligned.

Left-side oven rack guide supports and aligns your oven rack for smooth sliding. Replace if cracked, broken, or worn to restore stable rack movement.

This flat 30" oven rack restores the proper cooking surface in your range, giving even support for cookware and bakeware. It replaces bent, warped or missing racks so pans sit level for better results. What it does

• Provides a flat, stable shelf for baking sheets, pans and dishes
• Replaces damaged or warped oven racks that cause uneven cooking or tipping
• Slides into existing rack supports to restore correct shelf positions
• Helps maintain airflow for even heat distribution when used as intended

• Allow the oven to cool completely and disconnect power before installing
• Slide rack into the desired pair of oven support rails until fully seated
• Inspect support rails for damage and ensure the rack moves smoothly
• Clean oven interior and the rack per the manufacturer's cleaning instructions before use

This oven rack slide assembly replaces the worn or damaged slide that guides a 30" oven rack, restoring smooth, stable rack movement and preventing the rack from falling or binding during use. What it does:

• Guides the oven rack in and out smoothly for loading and unloading
• Holds the rack securely to prevent tipping or falling when extended
• Replaces bent, worn, or broken slides that cause scraping or binding
• Helps restore even rack alignment and proper oven function

• Disconnect power to the appliance before starting any repair
• Remove oven racks and cool completely before installing the slide assembly
• Basic hand tools may be required; follow OEM instructions for proper alignment

Oven not heating or baking unevenly? The hidden bake element provides bottom heat for baking. This repair takes 30-45 minutes with basic tools.

Oven won't brown or broil food? This upper broil element restores focused top-side heat for proper browning and broiling. Common 30-minute repair.

Fix F2 or F34 error codes and inaccurate oven temperatures with this temperature sensor assembly. Moderate DIY repair, 30-60 minutes install time.

Retainer bolt secures internal components and panels in your range or wall oven. Replace if bolt is stripped, missing, or causing loose assemblies.

Oven display dim or lights not working? This right-side LED board assembly restores proper illumination and control signaling in electric wall ovens.

LED light board assembly powers interior oven lighting. Replace when lights flicker, dim, or fail to illuminate. Verify compatibility with your model.

Fixes dim or shadowy oven lighting. This LED light lens protects the bulb and restores clear interior visibility. Replaces cracked or cloudy lenses.

Lower vent trim for electric ranges and wall ovens. Replace this cosmetic trim piece if cracked, chipped, discolored, or missing. Installs at base.

Decorative trim piece for the lower edge of your wall oven where it meets cabinetry. Replace if cracked, damaged, or missing to cover gaps and restore a clean look.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Heat escaping around broil element? This pass-through gasket seals the opening where the element enters the oven liner, containing heat and steam. Quick DIY fix.

This bottom air duct cover directs cold-air flow inside the refrigerator to help maintain consistent temperatures and protect internal components. It replaces a cracked or missing duct cover to restore proper airflow routing. What it does

• Channels refrigerated air through the lower cabinet to support even cooling
• Protects evaporator/fan pathways from debris and accidental contact
• Helps reduce localized warm spots and uneven food cooling
• Prevents rattling or vibration caused by a damaged or loose duct cover

• One bottom air duct cover

• Disconnect power to the appliance before starting any repair
• Remove shelves, drawers and any trim blocking access to the duct area
• Handle plastic parts gently to avoid cracking; secure with original clips or screws

Shields your oven's hidden bake element from spills and debris. Directs heat for even cooking and reduces cleaning. Moderately easy DIY install.

Replacement inner top plate for wall oven ceiling. Restores interior surface, protects wiring and insulation from heat and drips. Needed when cracked or worn.

Oven not reading meat temperature accurately? This meat probe and harness assembly monitors internal food temperature during cooking cycles.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Replacement rack guide nut for wall ovens. Secures oven rack guides in place. Order a new nut if yours is stripped, broken, or missing from the cavity.

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Mounting screw secures panels, brackets, and trim in ranges and wall ovens. Replace when stripped, missing, or damaged to restore proper fastening.

Replacement screw for securing panels and components on ranges and ovens. Needed when original fastener is stripped, missing, or damaged during repairs.

Black. 8-18 AB HXW 3/8

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.
