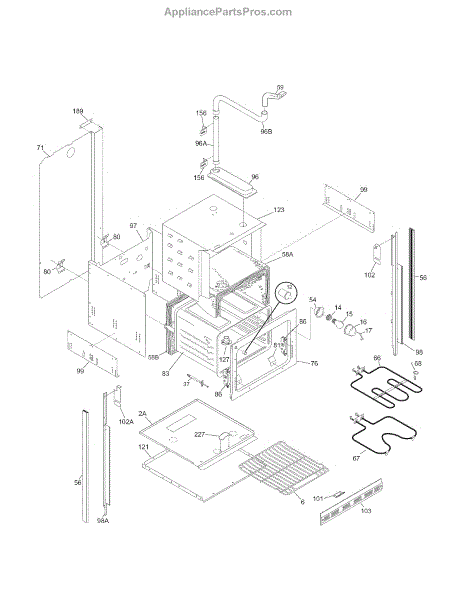

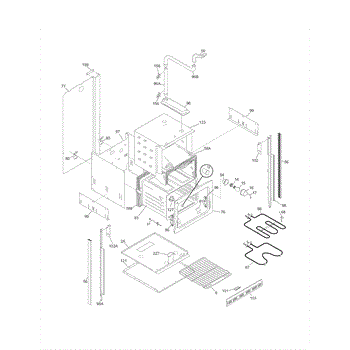

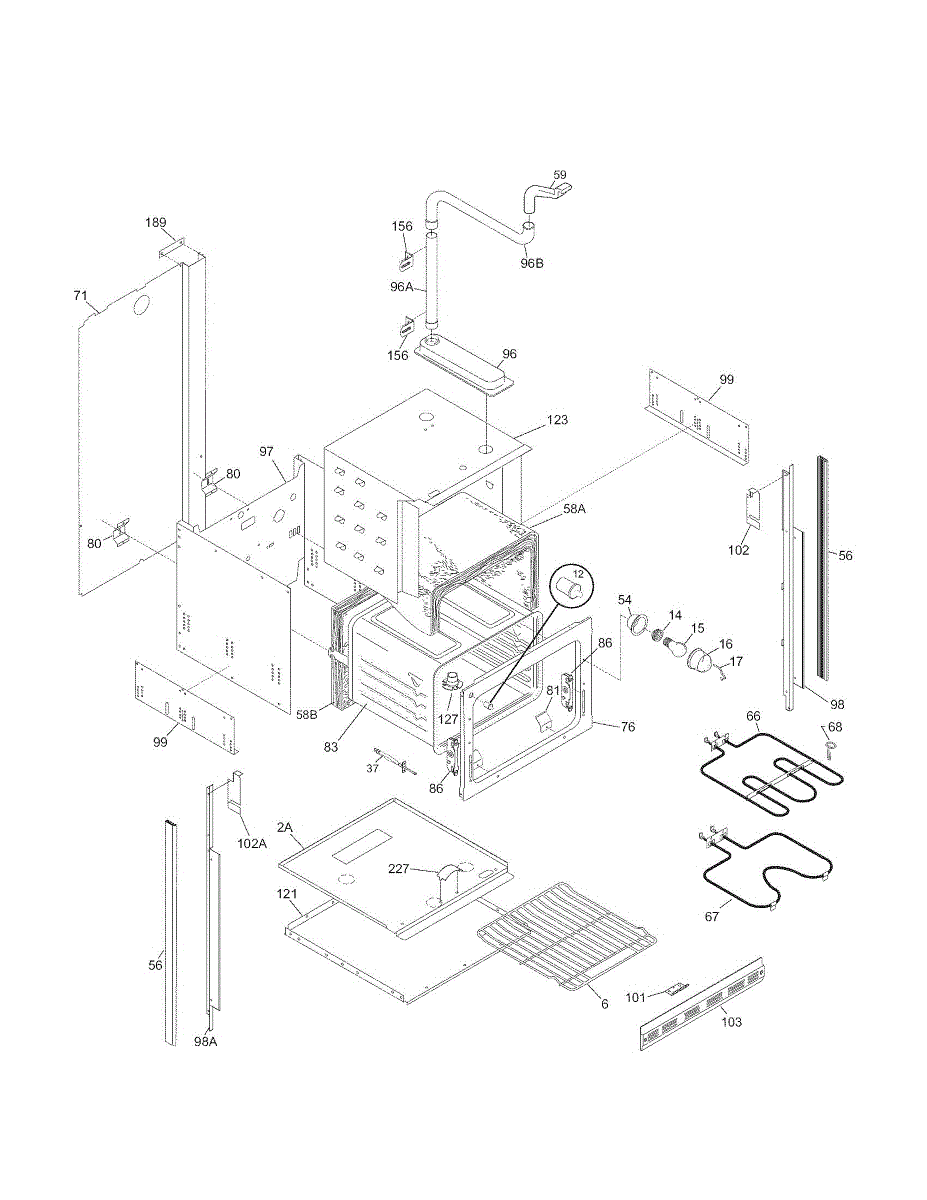

Parts for Kenmore 790.40614802 (79040614802, 790 40614802): Lower Oven Parts

This oven rack replaces a worn, bent, or missing rack to restore secure, level support for bakeware and cookware. It gives smooth slide-and-lock support so pans cook evenly and stay stable while you load and remove food. What it does

• Provides a sturdy shelf for cookware and bakeware inside the oven cavity
• Restores proper spacing and airflow for even cooking and browning
• Replaces racks that are bent, warped, rusted, or no longer sliding smoothly
• Helps prevent cookware from tipping or sliding when inserting or removing pans

• One oven rack

• Install by sliding into the oven side rails at the desired height; no tools typically required
• Wear gloves to avoid pinched fingers and allow the oven to cool completely before removing or installing
• Only use racks and accessories rated for your oven's maximum temperature

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

This bodyside trim is the exterior finish piece that restores the refrigerator's side edge in bisque color for a clean, factory look. It replaces damaged, cracked, or missing side trim to improve appearance and protect the cabinet edge. What it does:

• Covers and protects the refrigerator's side edge, preventing dirt buildup and hiding exposed cabinet seams
• Restores a finished, factory appearance after dents, cracks, or broken trim
• Helps maintain proper spacing where trim interfaces with surrounding cabinetry
• Cosmetic-only part; does not affect cooling, electrical, or mechanical systems

• Follow the refrigerator manufacturer's service instructions; have a second person help for larger units
• Typically fastens with clips or screws; retain and reuse any original fasteners unless replacement fasteners are specified
• Avoid forcing the trim into place—inspect mounting points and alignment before securing

This electric heating element restores consistent, reliable heat in your appliance, so cooking or warming functions work as intended. Replace a failed element to eliminate slow heat-up, uneven temperatures, or no-heat conditions.

• Converts electrical power into heat for the appliance's designated cavity or surface
• Common failure symptoms: no heat, uneven heating, very slow preheat/warm-up
• Visual clues: breaks, blisters, or hot spots on the coil
• May cause the unit to cycle erratically or trip a breaker if shorted

• Disconnect power at the breaker or unplug before servicing; allow all components to cool
• Wear cut-resistant gloves; avoid bending or kinking the element
• Photograph wiring and transfer connectors one-for-one; ensure tight, clean terminal fits
• Inspect wires/terminals for heat damage and replace any compromised connectors

Oven won't heat or bakes unevenly? A failed bake element is likely the cause. This lower heating element replacement typically takes 30 minutes or less.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

This oven vent duct channels hot air and cooking exhaust from the oven cavity to the appliance outlet, helping maintain proper airflow and reduce heat buildup behind the range. It's a direct-fit service replacement for the vent path. What it does:

• Routes oven exhaust from the cavity to the external vent opening so air can exit safely.
• Helps prevent excess heat buildup behind or beneath the range during operation.
• Can reduce symptoms like poor venting, unusually hot rear surfaces, or cooking odors lingering in the kitchen.
• Works with the oven's blower/vent system to keep airflow moving as intended.

• One oven vent duct

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Access may require removing the oven's back panel or lower shield; keep track of fasteners and panels.
• Handle metal parts carefully to avoid cuts; wearing gloves is recommended.

This back-side wrapper is the outer rear panel that covers and protects the appliance's rear components while restoring the unit's finished appearance. It helps keep wiring and parts shielded from dust and incidental contact. What it does:

• Covers the appliance's rear area to protect wiring and components from dust and damage
• Restores a finished exterior surface for a neat appearance
• Helps reduce incidental contact with internal parts during normal use
• Can stop minor drafts or air movement that occur through a damaged or missing rear wrapper

• Disconnect power to the appliance before beginning any service
• Remove access panels or mounting clips as required to reach the rear wrapper
• Use basic hand tools; support the panel during removal/installation to avoid scratching adjacent surfaces

Black trim bracket for wall ovens. Secures and supports trim panels around the oven cavity. Replace if cracked, bent, or missing for proper fit.

Adapter assembly for oven vent system. Installs in back wall to align vent components. Replace if cracked, broken, or missing to restore proper fit.

This part has been discontinued by the manufacturer and is no longer available.

Oven vent insulation that installs around the vent opening to reduce heat transfer and noise. Replace if yours is compressed, damaged, or missing.

This wiring harness assembly routes power and signals between appliance controls and components to restore reliable electrical connections and stable operation. Use it to replace damaged, frayed, or corroded wiring that causes intermittent or no power. What it does

• Provides bundled wiring and factory connectors to link controls, switches, sensors, and motors
• Restores lost or intermittent electrical connections that can cause the appliance to not start or to operate erratically
• Prevents short circuits from exposed or damaged wires when installed correctly
• Matches OEM connector types and wire colors to simplify replacement and diagnostics

• One complete wiring harness assembly as pictured

• Disconnect power (unplug appliance or shut off circuit) before servicing to avoid shock or damage
• Compare the new harness to the original to verify connector types, lengths, and routing before installation
• Route wires away from moving parts and heat sources; secure with existing clips or ties

Wiring harness for ovens and ranges. Connects electrical components inside the appliance. Replace if wires are frayed, damaged, or connections worn.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
