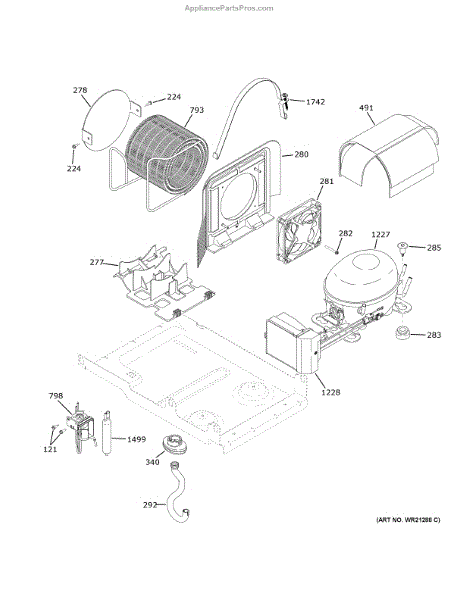

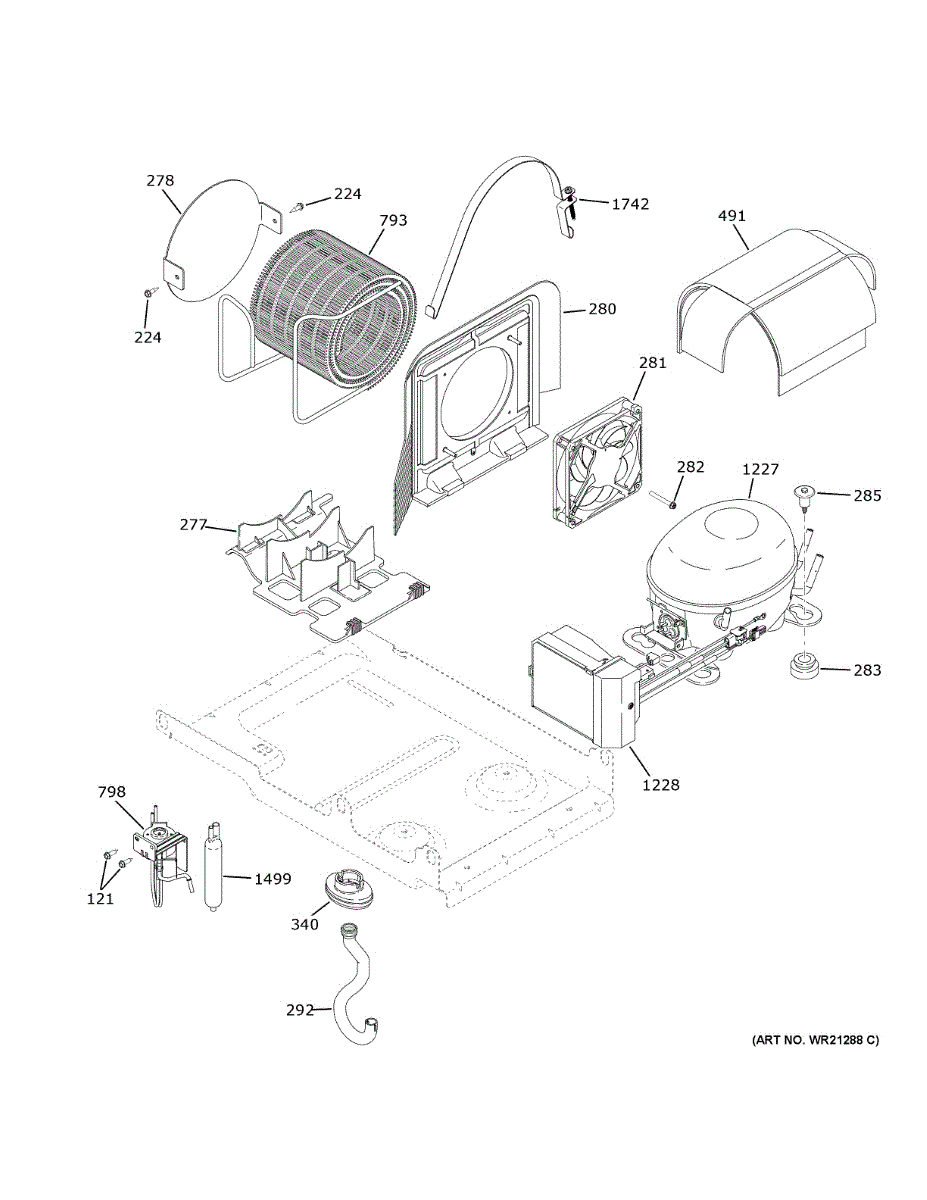

Parts for Ge CIP36NP2VDS1: Machine Compartment Parts

Mounting screw for refrigerator interior components like fan brackets, ice maker assemblies, and shelving. Replace if stripped, missing, or corroded.

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

This 3-way water inlet valve routes water to the dispenser and ice maker, restoring controlled water flow for cold-water dispensing and ice production. It replaces a worn or leaking valve to help stop unwanted leaks and restore normal water delivery. What it does:

• Directs incoming water to the ice maker and the dispenser as needed
• Opens and closes water flow in response to the fridge's control signals
• Helps stop leaks or continuous water flow when the valve fails
• Commonly replaced when the dispenser or ice maker doesn't get water or when the valve leaks

• Turn off water supply and unplug the appliance before starting work
• Use basic hand tools; keep a towel to catch residual water when disconnecting lines
• Inspect and tighten fittings; replace damaged water lines or seals if present
• After installation, restore power/water and check all connections for leaks while cycling dispenser/ice maker

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
