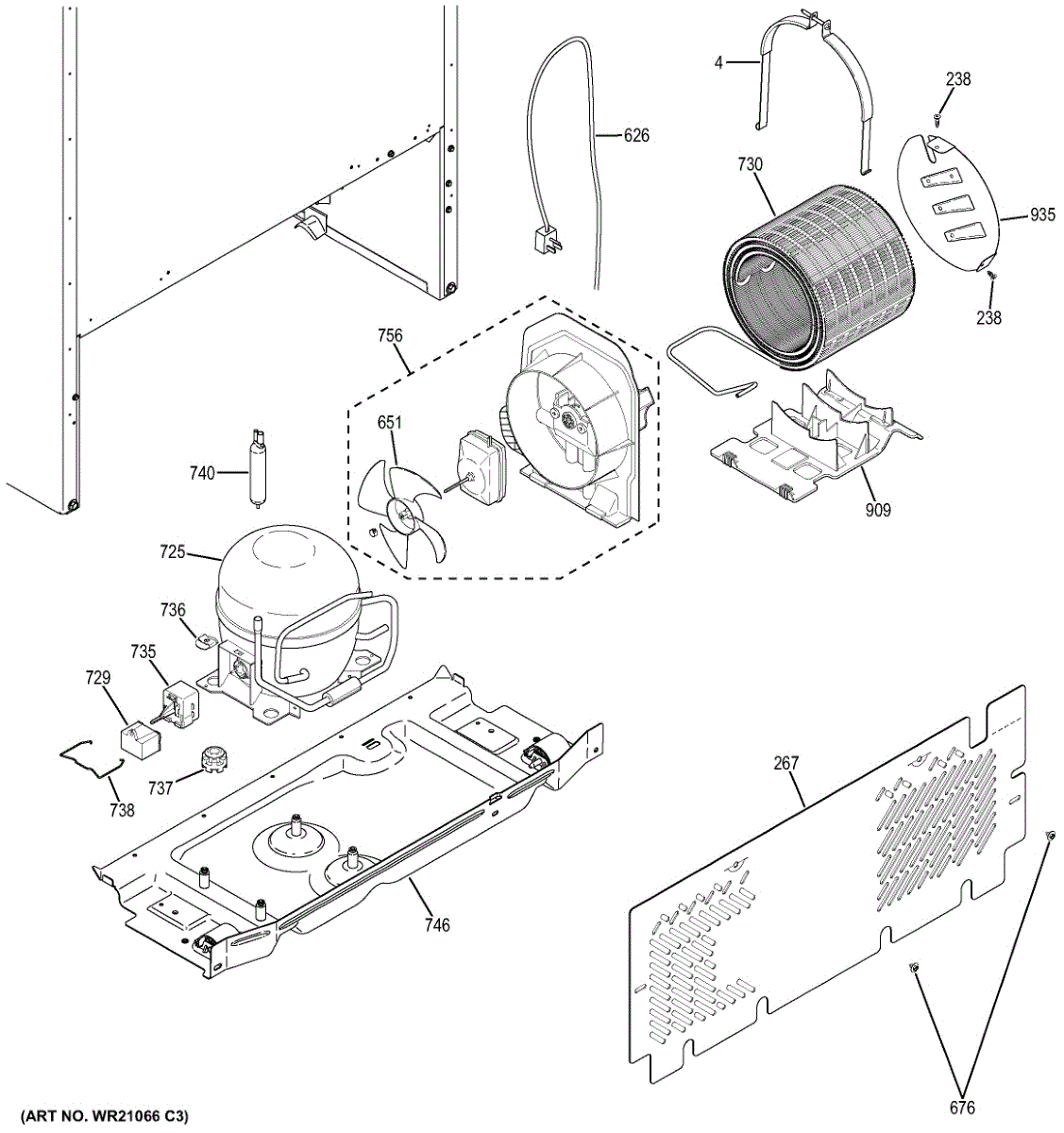

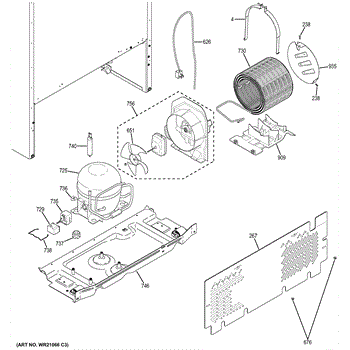

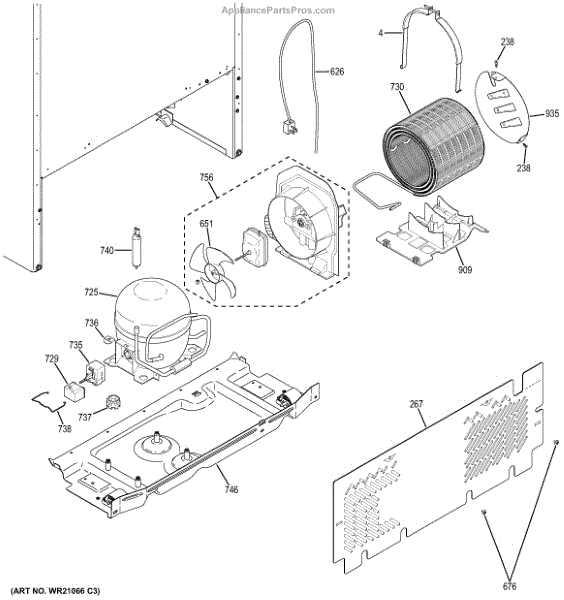

Parts for Ge GTE16DTHHRBB: Machine Compartment Parts

This condenser strap assembly secures the condenser coil to the refrigerator chassis, helping keep the coil stable and reduce vibration or contact with nearby components during operation. It's a simple replacement that restores proper condenser mounting. What it does:

• Holds the condenser coil firmly in place to prevent movement or rubbing against the cabinet
• Helps reduce rattling or vibration noises caused by a loose condenser
• Prevents wear or damage to the condenser from excessive movement
• Supports proper airflow clearance by maintaining correct condenser positioning

• Disconnect power to the appliance before beginning any repair.
• Use basic hand tools; support the condenser when removing and installing the strap to avoid bending the coil.
• Inspect surrounding components and fasteners; replace any damaged clips or screws as needed.

This hex-head screw secures dishwasher panels, brackets, and internal hardware so parts stay tight and rattle-free. Replace missing or stripped fasteners to restore a secure fit and reliable operation.

• Fastens panels, brackets, and other dishwasher components to the tub or frame
• Replaces a missing, stripped, or corroded screw that no longer holds securely
• Helps eliminate vibration and rattling caused by loose hardware
• Maintains proper alignment and secure mounting of parts during operation

• Disconnect power and shut off water supply before servicing
• Keep track of fastener locations and orientation for correct reassembly
• Start threads by hand; use an appropriate nut driver or socket to tighten
• Tighten snugly—do not overtighten, especially when threading into plastic

The Vegetable Pan Humidity Slide is an OEM replacement part for GE refrigerators. This slide is designed to allow control of the humidity levels within the vegetable pan to keep your fruits and vegetables fresh for longer periods. By sliding the control lever, you can create the ideal moisture level for different types of produce.

A bad vegetable pan humidity slide can occur due to regular use or accidental damage. If you notice that the humidity levels are not adjustable or if the slide is broken or missing, it may indicate a need to replace this part.

Symptoms of a bad vegetable pan humidity slide include:

• Inability to adjust the humidity levels in the vegetable pan
• Produce wilting or spoiling faster than usual
• Difficulty in maintaining freshness and crispness

Restore your refrigerator by replacing the faulty vegetable pan humidity slide with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This rear access cover replaces the panel that protects and conceals components at the back of the refrigerator cabinet. It restores the finished appearance and helps keep dust and debris away from electrical and service areas. What it does:

• Covers and shields rear-mounted components and wiring from dust, dirt, and accidental contact
• Helps maintain a finished exterior at the rear of the cabinet after service or component replacement
• Reduces the chance of loose debris or small tools contacting internal parts during operation
• Restores proper access panel fit for service technicians and future maintenance

• One rear access cover panel

• Disconnect power to the appliance before attempting any service
• Typically secures with screws; keep original fasteners or use OEM-specified hardware
• Move the appliance away from the wall for safe access and stable working space
• Replace any damaged clips or screws to ensure a secure fit and proper protection

The Harness and Power Cord is an OEM part for GE refrigerators. It carries power from the wall outlet to internal refrigerator components and electronically connects these components through its wiring harness. A reliable harness and power cord is essential for powering refrigerator operations like cooling, freezing, lighting, and circulating air.

Causes of a bad harness and power cord can include fraying of wires over time, cracks or splits in insulation exposing wires, and damaged or faulty connectors.

Symptoms include:

• Intermittent or complete power failures
• Lights or fans not functioning
• Inability to control temperature settings
• Error codes or diagnostic issues

Having the right harness and power cord installed ensures consistent power delivery without disruptions or electrical issues. This GE OEM replacement provides a factory fit and match for your model. This part is also compatible with some Kenmore, Hotpoint, and RCA refrigerators.

Size: 10-16 ab.

This condenser kit replaces a refrigerator's damaged or corroded condenser to help restore proper heat dissipation and improve cooling efficiency. It's the direct-fit condenser assembly used in compatible GE refrigeration units. What it does:

• Moves heat away from the refrigerant so the system can cool properly
• Commonly replaced for visible coil damage, corrosion, or bent fins
• Can address symptoms such as reduced cooling performance or longer run cycles
• Works with the existing refrigeration loop when installed correctly

• One replacement condenser kit

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the back or lower rear service panel
• Inspect mounting hardware and electrical connections during installation; follow OEM instructions

The Tsd Combo is an OEM part for GE refrigerators. This assembly includes both the start relay and the overload. The start relay is responsible for providing an extra boost of power to kick-start the compressor, while the overload acts as a safety mechanism to protect the compressor from electrical overload. Together, they help maintain cooling and prevent damage to the compressor.

A bad start relay and overload combo can occur due to electrical malfunctions or wear and tear over time. If you notice symptoms such as the refrigerator not cooling properly, unusual noises coming from the compressor, or the compressor not starting at all, it may be time to replace the combo.

Symptoms of a bad start relay and overload combo include:

• Inadequate cooling in the refrigerator
• Unusual noises coming from the compressor
• Failure of the compressor to start

Restore the proper function of your GE refrigerator's compressor by replacing the faulty start relay and overload combo with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This condenser support is the replacement mounting bracket that secures the refrigerator condenser coil and helps keep the unit stable behind the lower access panel. It restores proper condenser positioning for reliable cooling performance. What it does:

• Holds the condenser coil in the correct position to prevent contact with other components
• Reduces vibration and rattling from a loose condenser assembly
• Helps maintain proper airflow behind the cabinet when installed correctly
• Can prevent wear to nearby components caused by a displaced condenser

• Disconnect power before servicing and work with the appliance unplugged to avoid shock
• Access typically requires removing the refrigerator's lower access panel or rear service panel
• Basic hand tools are usually sufficient; keep fasteners for reuse unless damaged
• Handle edges carefully; inspect surrounding parts and wiring before reassembly
