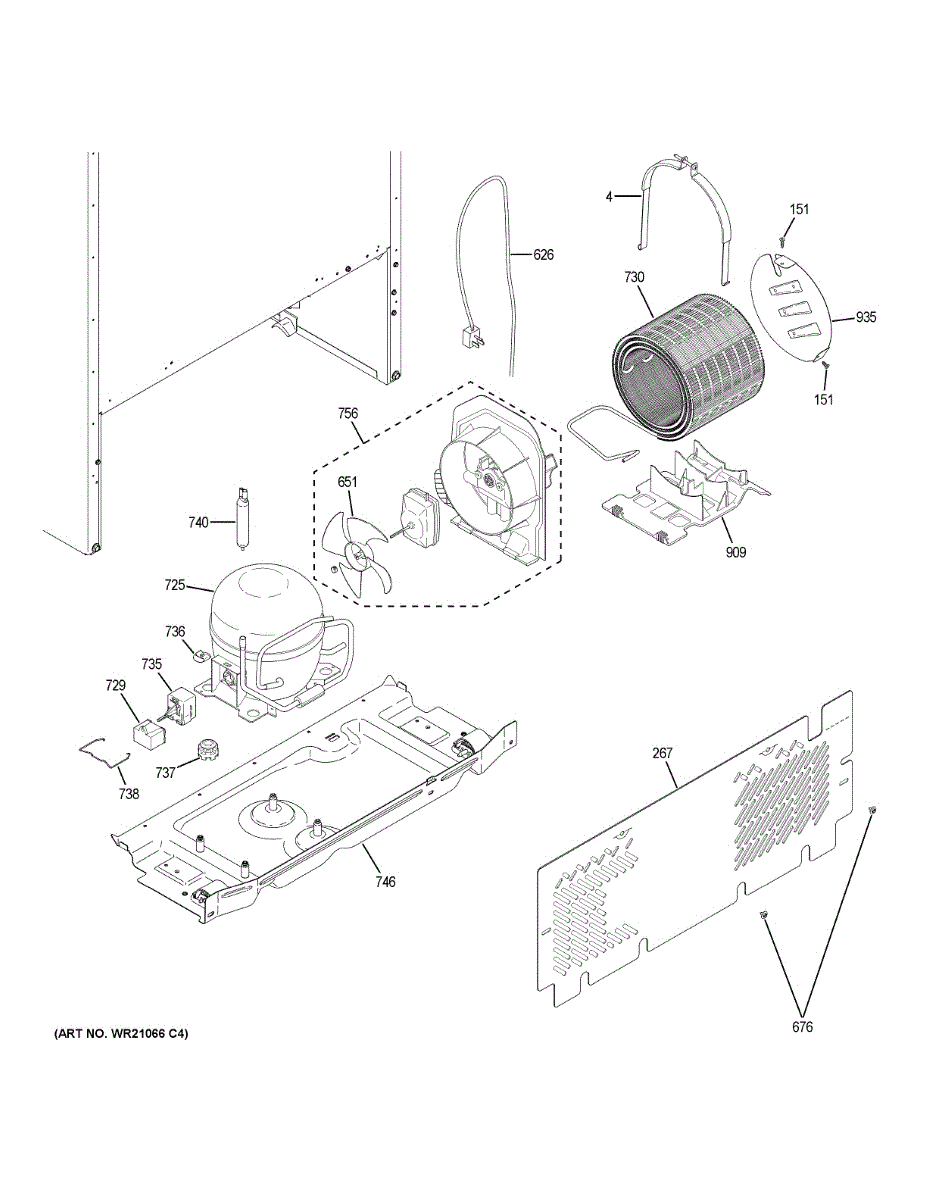

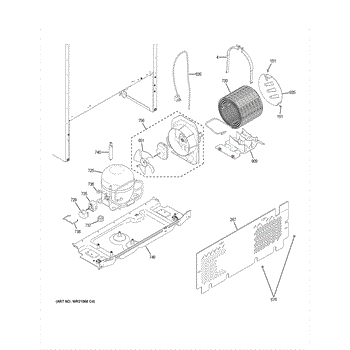

Parts for Ge GTE18CTHLRBB: Machine Compartment Parts

This condenser strap assembly secures the condenser coil to the refrigerator chassis, helping keep the coil stable and reduce vibration or contact with nearby components during operation. It's a simple replacement that restores proper condenser mounting. What it does:

• Holds the condenser coil firmly in place to prevent movement or rubbing against the cabinet
• Helps reduce rattling or vibration noises caused by a loose condenser
• Prevents wear or damage to the condenser from excessive movement
• Supports proper airflow clearance by maintaining correct condenser positioning

• Disconnect power to the appliance before beginning any repair.
• Use basic hand tools; support the condenser when removing and installing the strap to avoid bending the coil.
• Inspect surrounding components and fasteners; replace any damaged clips or screws as needed.

This hex-head screw secures dishwasher panels, brackets, and internal hardware so parts stay tight and rattle-free. Replace missing or stripped fasteners to restore a secure fit and reliable operation.

• Fastens panels, brackets, and other dishwasher components to the tub or frame
• Replaces a missing, stripped, or corroded screw that no longer holds securely
• Helps eliminate vibration and rattling caused by loose hardware
• Maintains proper alignment and secure mounting of parts during operation

• Disconnect power and shut off water supply before servicing
• Keep track of fastener locations and orientation for correct reassembly
• Start threads by hand; use an appropriate nut driver or socket to tighten
• Tighten snugly—do not overtighten, especially when threading into plastic

This rear access cover replaces the panel that protects and conceals components at the back of the refrigerator cabinet. It restores the finished appearance and helps keep dust and debris away from electrical and service areas. What it does:

• Covers and shields rear-mounted components and wiring from dust, dirt, and accidental contact
• Helps maintain a finished exterior at the rear of the cabinet after service or component replacement
• Reduces the chance of loose debris or small tools contacting internal parts during operation
• Restores proper access panel fit for service technicians and future maintenance

• One rear access cover panel

• Disconnect power to the appliance before attempting any service
• Typically secures with screws; keep original fasteners or use OEM-specified hardware
• Move the appliance away from the wall for safe access and stable working space
• Replace any damaged clips or screws to ensure a secure fit and proper protection

This wiring harness assembly connects control and electrical components to restore proper signal and power routing within the appliance. Use it to replace damaged or faulty wiring that causes intermittent or failed component operation. What it does

• Routes power and control signals between the control board and major components.
• Replaces frayed, burned, or broken wires to eliminate shorts or open circuits.
• Helps resolve symptoms like no power to components, intermittent operation, or controls that don't respond.
• Maintains correct connector fit and secure electrical connections for reliable performance.

• One wiring harness assembly as shown.

• Disconnect all power before starting any repair to avoid shock or injury.
• Compare the new harness to the original for correct connector types and lengths before installation.
• Route and secure the harness away from sharp edges, moving parts, and heat sources.

Size: 10-16 ab.

The Compressor is an OEM component specifically designed for GE top-mounted and bottom-mounted refrigerator freezers. Responsible for circulating refrigerant, its robust motor compressively moves gas to chill interiors reliably. Permanent lubrication withstands constant operation.

Symptoms of a faulty compressor commonly involve cycling off too frequently or inefficient temperature regulation. Loss of pressure from degradation risks expensive repairs necessitating replacement.

Causes of a bad compressor relate to typical wear reducing circulation. Over-activation exposes motor windings to damage requiring timely change.

Causes of a bad compressor can involve:

• Failure to maintain set temperatures
• Frost buildup impairing performance
• Vibrations transferring to cabinetry

This OEM GE part is also compatible with some Hotpoint, RCA, and Frigidaire refrigerators. Replace to retain steady refrigeration preserving freshness for dependable operation long-term.


This condenser kit replaces a refrigerator's damaged or corroded condenser to help restore proper heat dissipation and improve cooling efficiency. It's the direct-fit condenser assembly used in compatible GE refrigeration units. What it does:

• Moves heat away from the refrigerant so the system can cool properly
• Commonly replaced for visible coil damage, corrosion, or bent fins
• Can address symptoms such as reduced cooling performance or longer run cycles
• Works with the existing refrigeration loop when installed correctly

• One replacement condenser kit

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the back or lower rear service panel
• Inspect mounting hardware and electrical connections during installation; follow OEM instructions

This compressor start device is the relay-and-overload assembly that helps your refrigerator's compressor start and protects it from overheating. Replacing a failing start device can stop repeated clicking and help restore consistent cooling performance.

• Provides the initial start circuit for the compressor, then disengages once running
• Protects the compressor by opening on overcurrent/overheating (overload protection)
• Helps address symptoms like: compressor won't start, repeated clicking, and warm fridge/freezer
• Often found heat-damaged or cracked when failed

• Disconnect power before servicing; access the compressor compartment at the rear
• Note wire positions; pull the old start device straight off the compressor pins
• Transfer wires to the new device; push it fully onto the compressor terminals until seated
• Reinstall the rear cover and restore power; verify normal compressor start

This metal compressor mounting clip secures the refrigerator compressor to the base, helping keep the unit stable and reducing vibration transfer. Replaces a worn or broken clip to restore proper compressor alignment and quieter operation. What it does:

• Secures the compressor to the cabinet/base to prevent movement during operation and transport
• Helps reduce vibration and rattling that can indicate a loose or damaged mount
• Keeps the compressor aligned so refrigerant lines and mounting hardware remain correctly positioned
• Useful when the original clip is bent, cracked, or missing

• One compressor mounting clip

• Disconnect power to the appliance before beginning any repair
• Support the compressor before removing or installing the clip to avoid strain on lines or fittings
• Use appropriate hand tools; avoid over-tightening fasteners which can cause damage
• Replace rubber grommets or insulation if present and damaged for best vibration isolation

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

This clip retainer combo secures appliance panels and trim, restoring proper fit and preventing rattling or sagging. It replaces worn or broken retainers so doors, drawers, or trim pieces stay aligned and stable. What it does:

• Holds and aligns trim or panel pieces to the appliance cabinet
• Prevents loose, vibrating, or sagging panels and trim
• Replaces cracked or broken retainers that no longer secure parts
• Restores a flush, finished appearance and reduces noise from vibration

• Disconnect power to the appliance before beginning any repair
• Remove the affected panel or trim per the appliance service instructions
• Press or snap the retainer into the mounting location until it seats fully; reinstall panel/trim
• If clips are brittle or adjacent fasteners are damaged, inspect and replace as needed

This condenser support is the replacement mounting bracket that secures the refrigerator condenser coil and helps keep the unit stable behind the lower access panel. It restores proper condenser positioning for reliable cooling performance. What it does:

• Holds the condenser coil in the correct position to prevent contact with other components
• Reduces vibration and rattling from a loose condenser assembly
• Helps maintain proper airflow behind the cabinet when installed correctly
• Can prevent wear to nearby components caused by a displaced condenser

• Disconnect power before servicing and work with the appliance unplugged to avoid shock
• Access typically requires removing the refrigerator's lower access panel or rear service panel
• Basic hand tools are usually sufficient; keep fasteners for reuse unless damaged
• Handle edges carefully; inspect surrounding parts and wiring before reassembly
