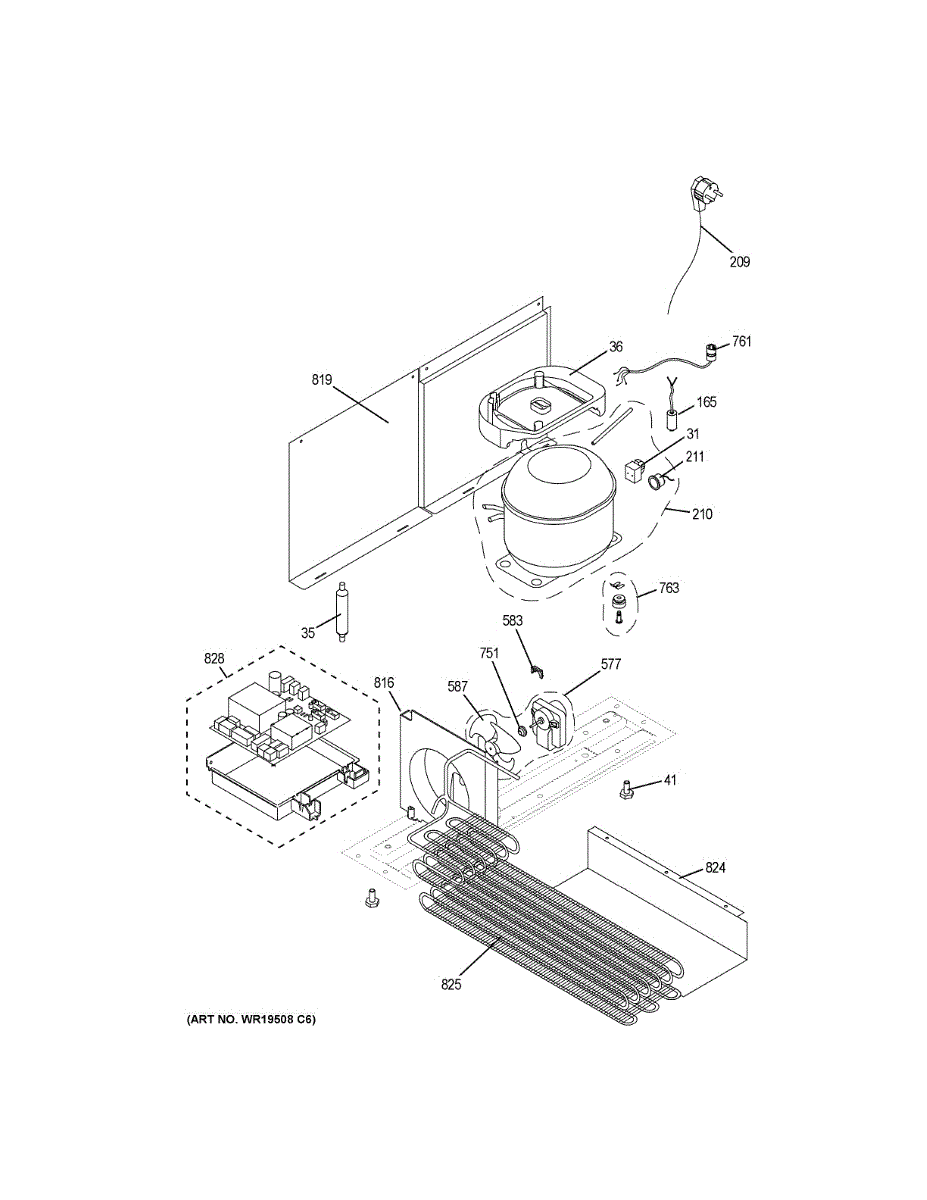

Parts for Ge ZDOD240NCSS: Machine Compartment Parts

This compressor start relay helps the refrigerator compressor start reliably so the appliance can cool properly. Replaces a failed start relay to restore compressor starting function and reduce hard-start symptoms. What it does:

• Provides the initial boost to the compressor motor during startup so the compressor can engage
• Commonly used when a fridge hums but the compressor won't start or cycles on and off
• Works with the compressor's start circuit; not a replacement for an overheat protector or run capacitor unless specified

• One start relay

• Disconnect power to the appliance before beginning any work
• Typically mounts on or near the compressor; remove access panel to reach compressor terminals
• Swap the old relay for the new unit, matching terminal positions; secure any clips or covers

This replacement drip tray catches and channels condensation or defrost water away from the refrigerator base to help prevent pooling and floor damage. It restores proper drainage and keeps the cabinet area drier. What it does

• Collects defrost and condensation water from the evaporator area and directs it to the drain or evaporator pan
• Helps prevent water pooling under the fridge or inside lower compartments
• Replaces cracked, warped, or missing trays that cause leaks or odors
• Compatible with models that use a fitted rectangular drip tray in the freezer/refrigerator base

• One drip tray

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Remove lower kickplate or access panel per your model's service instructions to reach the tray
• Replace the tray by sliding it into the molded guides; ensure proper seating for correct drainage
• Check and clear the drain tube before reassembly

This replacement power cord restores the appliance's connection to household power so it can operate safely and reliably. Designed to replace a worn or damaged cord and stop intermittent or total power loss. What it does:

• Provides the electrical connection between the appliance and the outlet
• Restores power when a frayed, cut, or damaged cord causes outages or intermittent operation
• Ensures a secure connection at the appliance strain-relief point
• Helps eliminate arcing or heat build-up from damaged wiring

• Always unplug the appliance or disconnect power at the breaker before servicing
• Route the cord and secure the strain relief per the appliance wiring harness layout

This condenser fan motor powers the refrigerator's condenser fan to move air across the condenser coils, helping the cooling system run efficiently and maintain proper temperature. Simple swap for a failed or noisy motor. What it does:

• Spins the condenser fan to draw air over condenser coils so the compressor and refrigerant can shed heat
• Restores proper airflow when the condenser fan is not running
• Can stop or reduce loud humming, grinding, or clicking caused by a failing motor
• Helps correct problems like elevated fridge/freezer temps or the compressor running constantly when airflow is impaired

• One condenser fan motor

• Disconnect all power to the appliance before removing or installing the motor
• Handle sharp sheet metal and condenser fins with care; wear gloves and eye protection
• Verify fan blade clearance and electrical connector fit before restoring power
• Test the motor, fan rotation, and cooling system after installation

This wiring harness assembly connects the refrigerator compressor to the electrical system so the compressor receives power and control signals. Replaces a damaged or worn compressor harness to restore reliable electrical connection. What it does:

• Provides the electrical pathway between the compressor and the appliance wiring/controls
• Transmits power and control signals required for compressor operation
• Prevents loose or corroded connections that can cause intermittent compressor function
• Commonly replaced when the compressor won't start, the fridge cycles abnormally, or there is visible wire damage

• Always disconnect power to the appliance before servicing electrical components
• Inspect connectors and routing; replace if terminals are corroded or insulation is cut
• Match connector orientation and secure harness to prevent chafing or contact with hot surfaces

This is a power supply board used in refrigerators and beverage coolers. This component is used to manage and monitor temperatures and other settings related to the appliance. It is a part made up of many small components and any one of them can go bad and cause problems over time. If there is an issue with the power supply board, it will often cause the refrigerator to stop working. In this situation, the power supply board should be replaced.Basic tools will be needed to replace the refrigerator power supply board. It should also be unplugged before starting the replacement process. The location of this component may vary based on the appliance model. Often, it will be behind an access door on the back of the refrigerator. Unscrew the door to remove the original power supply board. Reinstall the wires and other components on the new part, install, and return power to the appliance.This is an authentic OEM replacement part that is sourced directly from the manufacturer. The power supply board is sold on an individual basis. It is designed to be used with refrigerators and wine and beverage coolers by General Electric.
