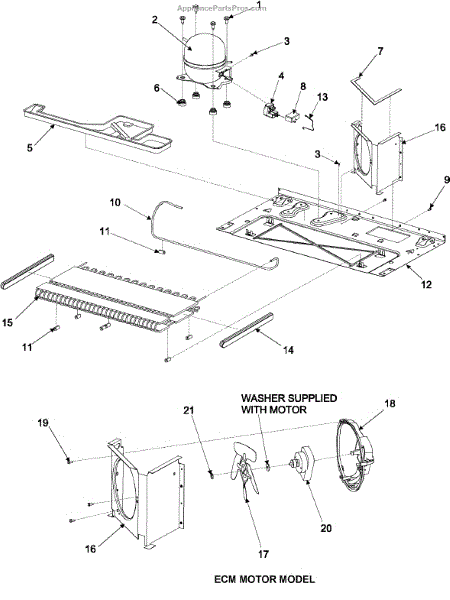

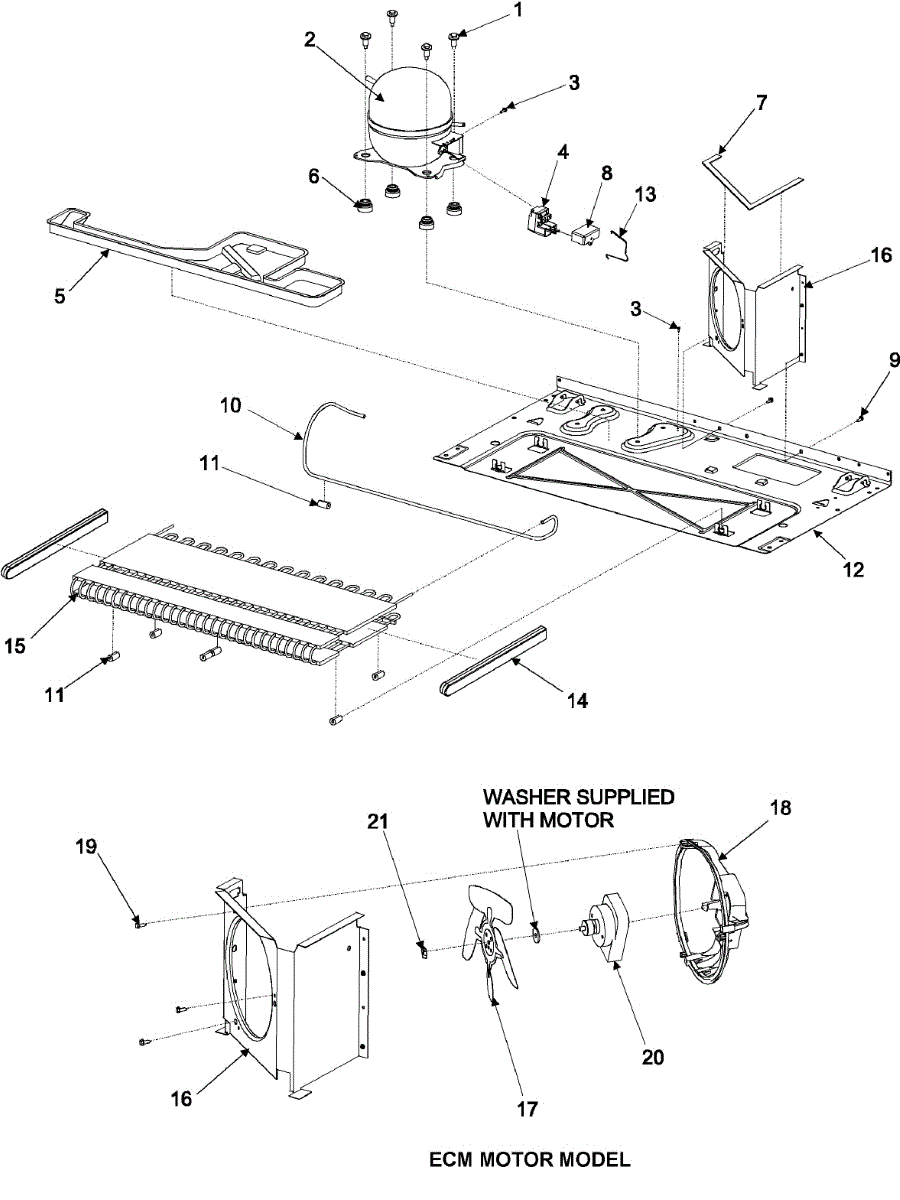

Parts for Kenmore 596.53464302 (59653464302, 596 53464302): Machine Compartment Parts

Shoulder screw for secure mounting and alignment in appliances. Replace if screw is stripped, missing, or damaged to restore proper assembly and fit.

Fix a refrigerator that won't cool or runs constantly with this compressor. Essential sealed system component. Professional installation recommended.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This component helps to kickstart the compressor, facilitating the refrigeration cycle that cools the interior of the fridge.

Such issues can stem from electrical failures within the relay, physical damage, or wear and tear from regular use. When the relay does not function correctly, it can lead to inconsistent cooling and, in severe cases, cause the compressor to overheat and fail prematurely.

Symptoms of a failing Compressor Start Relay include:

• The refrigerator not cooling properly or not cooling at all
• A noticeable clicking sound emanating from the back of the refrigerator, indicating the relay is trying to start the compressor but failing
• The refrigerator starts and stops frequently, unable to maintain a constant temperature

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Condensate drain pan collects water under your refrigerator. Replace if cracked, leaking, or damaged to prevent floor water pooling and spillage.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

This small replacement screw secures trim, panels, or internal components so parts stay aligned and appliances operate quietly. Use it to replace a missing or damaged fastener and restore proper fit and function. What it does:

• Fastens small panels, brackets, or trim pieces to the appliance body
• Keeps components aligned to prevent vibration, rattling, or gaps
• Replaces stripped, rusted, or missing screws that can cause loose parts
• Restores secure mounting after service or component replacement

• Disconnect power (and gas where applicable) before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Keep track of tiny fasteners and use a magnetic tray to prevent loss
• Do not overtighten; snug until seated to avoid damaging threads or components

Rubber grommet that cushions and secures the refrigerator condenser assembly. Replace if cracked, worn, or missing to reduce vibration and noise.

Refrigerator not cooling properly? This 36-inch condenser coil removes heat from your fridge. Common fix for warm temps and overheating compressors.

Fix a refrigerator that's not cooling properly with a new condenser fan blade. Restores airflow across condenser coils for consistent temperatures.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
