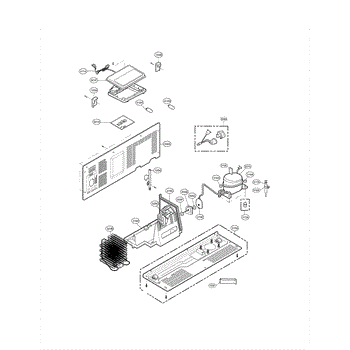

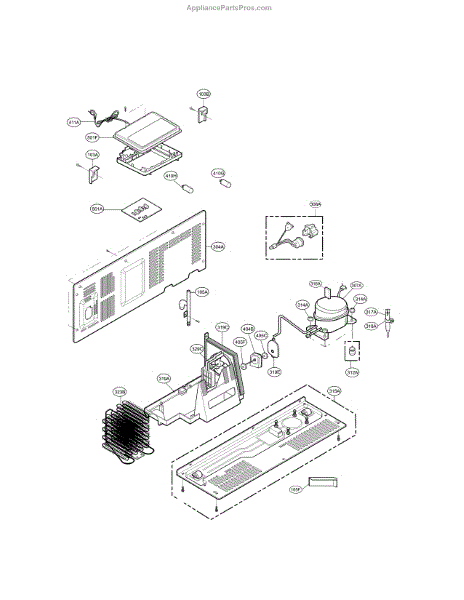

Parts for Kenmore 795.51833411 (79551833411, 795 51833411): Machine Parts

The Water Filter LT800P is an OEM part for LG refrigerators. This filter is designed to remove contaminants from the water supply, ensuring clean and fresh-tasting water and ice.

Causes of a bad water filter can include extended use beyond its recommended lifespan, exposure to high levels of contaminants, or damage to the filter itself.

Symptoms of a bad Water Filter LT800P include:

• Unpleasant taste or odor in the water or ice
• Reduced water flow from the dispenser
• Indicator light signaling the need for replacement
• Visible sediment or particles in the water

This OEM LG part is also compatible with Sears/Kenmore.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Compressor Overload is an OEM part for LG refrigerators. It works to prevent damage by automatically shutting off power to the compressor in the event of overheating, helping to extend the life of the compressor.

Causes of a bad compressor overload include normal wear and tear over time, extended use in high-heat conditions, or physical damage that impacts its protective functions.

Symptoms of a bad overload include:

• The compressor failing to start or run
• Strange noises coming from the compressor
• An increase in the refrigerator's operating temperature
• Frequent and unexpected shut-offs of the compressor

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

This damper cushions and isolates the refrigerator compressor to reduce vibration and noise for smoother operation. It helps maintain stable compressor mounting and prevents metal-to-metal contact that can cause wear or rattling. What it does:

• Absorbs compressor vibrations to reduce noise and movement
• Helps protect the compressor housing and mounting points from shock
• Can reduce rattling or knocking sounds originating near the compressor area
• Supports proper alignment of the compressor assembly during operation

• One compressor damper (mounting isolator)

• Turn off power at the breaker and unplug the appliance before servicing
• Inspect mounting area and hardware; replace any damaged fasteners before installing the damper
• Position the damper on the compressor mount as shown in the service manual and secure per OEM guidance

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This fan guide is the molded support bracket that positions and protects the refrigerator/freezer evaporator or condenser fan blade, helping maintain proper airflow and reduce noise from the fan assembly. Designed to fit into the fan housing area. What it does:

• Holds the fan blade and motor assembly securely in the correct position for consistent airflow
• Directs airflow across the evaporator or condenser for efficient cooling performance
• Helps prevent fan blade contact with other components, reducing rubbing noise and wear
• Keeps debris away from the fan to protect the motor and prolong fan life

• One fan guide/support bracket

• Disconnect power to the appliance before inspecting or replacing the part
• Access may require removing interior panels or the rear access panel depending on model
• Verify correct orientation and secure mounting; do not force the part into place
• Test fan operation after reassembly to confirm proper fit and clearance

The Condenser Fan Blade is an OEM replacement part for LG refrigerators. The condenser fan motor blade is located on the condenser fan motor which is usually located on or near the compressor at the back of the refrigerator. This part is responsible for circulating air over the condenser coils. This helps to remove heat from the condenser and evaporate water in the defrost drain pan.

Causes of blade failure can include normal wear over extended runtime, accumulated dirt and dust impeding airflow, or physical impact damage.

Symptoms of a faulty condenser fan blade include:

• Refrigerator fails to properly cool and maintain temperatures
• Condenser unit runs excessively as heat fails to dispel
• Abnormal noises such as grinding or squealing emanate from the condenser area

This OEM LG part is also compatible with some Sears/Kenmore model refrigerators.

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

This motor start/run capacitor helps the appliance motor or compressor start and run more reliably, restoring proper motor performance and reducing symptoms caused by a weak or failed capacitor. What it does:

• Provides the momentary electrical boost motors or compressors need to start
• Helps maintain stable motor operation during run cycles
• Resolves symptoms like motors that hum but won't start, intermittent starting issues, or cycling problems
• Replaces a worn or failed capacitor to restore consistent performance

• One replacement capacitor as shown

• Disconnect power before servicing and verify the appliance is de-energized
• Capacitors can hold charge — discharge safely before touching terminals
• Match terminal type and mounting location to the original part; do not force connections

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.
