Parts for Bosch HMV8051U/01: Magnetron Asy Parts

Parts for Bosch HMV8051U/01: Magnetron Asy Parts

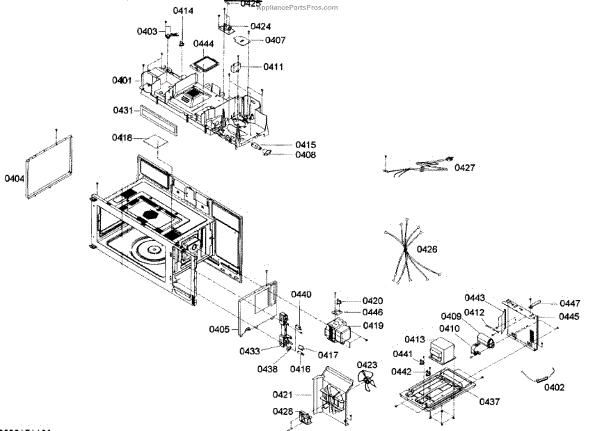

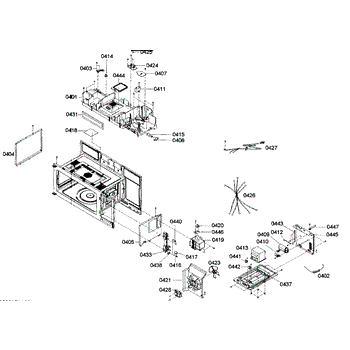

Location on Diagram
Part Description
Price & Availability
401
By: Bosch
Part Number: 00701255
$58.50

IN STOCK
Ships Today Guaranteed
Add to Cart
402
Product photo
By: Bosch
Part Number: 00620531

Replacement electrical fuse that protects the appliance's control circuits from overloads and short circuits. Installing a correct replacement fuse restores circuit protection and can allow the appliance to power up normally after a blown fuse. What it does:

  • Protects control and power circuits by opening when excess current or a short occurs.
  • Common symptom: appliance is completely dead or the control panel is unresponsive.
  • Also used when intermittent power or repeated tripping indicates a failed circuit protector.
  • Keeps a failed circuit isolated to help prevent further damage to the control board or wiring.
What's included: One replacement electrical fuse. Install notes:
  • Always disconnect power at the breaker or unplug the appliance before inspecting or replacing the fuse.
  • Verify the part number and electrical rating on the old fuse matches the replacement; replace only with an identical-rated fuse.
  • Test the old fuse for continuity with a multimeter to confirm failure before replacing.

More
$7.79

IN STOCK
Ships Today Guaranteed
Add to Cart
403
By: Bosch
Part Number: 12014096
$106.16

IN STOCK
Ships Today Guaranteed
Add to Cart
404
By: Bosch
Part Number: 00702690
$13.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
405
By: Bosch
Part Number: 00702692
$15.23

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
407
By: Bosch
Part Number: 00621572
$8.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
408
Product photo
5.0 (1)
By: Bosch
Part Number: 00617214

Holds the bulb and provides electrical connection for interior lighting. Replace if cracked, heat-damaged, or loose causing lights to fail. Confirm fit.

More
$9.61

IN STOCK
Ships Today Guaranteed
Add to Cart
409
By: Bosch
Part Number: 00617248

Fix a microwave that won't start or heat properly with this high voltage capacitor. Restores proper electrical performance to the control circuit.

More
$25.57

IN STOCK
Ships Today Guaranteed
Add to Cart
410
By: Bosch
Part Number: 00609862
$7.44

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
411
By: Bosch
Part Number: 00617216

This motor start/run capacitor helps the appliance's motor start smoothly and run more efficiently. Replacing a failing capacitor can restore normal motor operation and reduce humming or intermittent motor stops. What it does:

  • Provides the temporary energy boost the motor needs to start and maintain proper speed.
  • Commonly linked to symptoms such as motor humming, slow motor start, or motors that stall or run inconsistently.
  • Works with the motor's starting circuit to stabilize performance during load changes.
  • Matches the original function and electrical role of the factory-installed capacitor when replaced with the correct part number.
What's included:
  • One capacitor as shown.
Install notes:
  • Disconnect power to the appliance before attempting any repair.
  • Discharge the capacitor safely (use insulated tools and follow manufacturer procedures) to avoid electrical shock.
  • Replace only with a capacitor that matches the original specifications and mounting.

More
$35.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
412
Product photo
By: Bosch
Part Number: 00617249

If your microwave won't heat or runs but food stays cold, a failed rectifier diode may be blocking power to the magnetron. This replacement restores heating.

More
$11.53

IN STOCK
Ships Today Guaranteed
Add to Cart
413
By: Bosch
Part Number: 00620524

Microwave not heating food? The high voltage transformer powers the magnetron. Moderately difficult repair requiring electrical safety precautions.

More
$170.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
414
Product photo
By: Bosch
Part Number: 00617232

This temperature regulator is the thermostat control that helps maintain the correct interior temperature by cycling the cooling system on and off. It replaces a failed regulator to restore steady temperature control and reduce temperature swings. What it does:

  • Senses and regulates appliance temperature to keep the compartment within set range
  • Cycles the compressor or cooling components to maintain consistent cooling
  • Commonly used when interior temperature is too warm, fluctuating, or compressor runs continuously
  • Works with the appliance's control system to trigger cooling actions as needed
What's included: One temperature regulator Install notes:
  • Disconnect power before servicing to avoid shock or damage
  • Handle the sensor and terminals carefully; avoid bending or stressing the connector
  • Verify correct orientation and secure mounting; confirm electrical connector is fully seated

More
$5.57

IN STOCK
Ships Today Guaranteed
Add to Cart
415
Product photo
5.0 (8)
By: Bosch
Part Number: 00617215

This replacement lamp restores proper lighting in your appliance, making it easier to see contents and monitor cycles. Install it when the original bulb burns out or flickers to bring clear, reliable illumination back.

  • Provides illumination when the appliance's light circuit or door switch activates
  • Common symptoms: no light, intermittent or flickering light, or a visibly failed bulb
  • Heat, age, vibration, or moisture can cause the lamp to fail
  • A new lamp typically resolves lighting issues if the socket and switch are sound
  • Disconnect power at the breaker or unplug before servicing
  • Allow the area to cool fully before opening the light cover
  • Handle the glass with clean gloves or a cloth to avoid skin oils
  • Install the exact replacement specified for your model; do not exceed the manufacturer's rating

More
$11.54

IN STOCK
Ships Today Guaranteed
Add to Cart
416
Best Seller
Product photo
4.9 (7)
By: Bosch
Part Number: 00617230

This door switch is a safety interlock that detects whether the microwave door is properly closed before allowing the unit to operate. It is mounted near the door latch mechanism inside the microwave's cabinet. Replace this switch if the microwave does not start when the door is closed, runs with the door open, or if it blows a fuse when the door is opened or closed.

More
$15.57

IN STOCK
Ships Today Guaranteed
Add to Cart
417
Best Seller
Product photo
4.9 (19)
By: Bosch
Part Number: 00617229

The Microwave Switch is an OEM part for Bosch microwaves. It functions as a safety device that ensures the microwave operates only when the door is securely closed.

You should replace this microwave switch if it becomes faulty due to wear and tear, or if it's damaged from electrical issues or physical impact. A malfunctioning switch can prevent the microwave from starting, cause it to stop unexpectedly, or lead to safety hazards by allowing the microwave to run with the door open.

Symptoms of a bad microwave switch include:

  • Microwave not starting
  • Intermittent operation or shutting off unexpectedly
  • Microwave running with the door open
  • Error codes related to door or safety switches

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

More
$8.95

IN STOCK
Ships Today Guaranteed
Add to Cart
418
By: Bosch
Part Number: 00621571
$8.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
419
By: Bosch
Part Number: 00652690

Fixes microwaves that won't heat or heat weakly. This magnetron generates microwave energy to cook food. Moderately difficult repair requiring safety precautions.

More
$153.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
420
Product photo
By: Bosch
Part Number: 00617232

This temperature regulator is the thermostat control that helps maintain the correct interior temperature by cycling the cooling system on and off. It replaces a failed regulator to restore steady temperature control and reduce temperature swings. What it does:

  • Senses and regulates appliance temperature to keep the compartment within set range
  • Cycles the compressor or cooling components to maintain consistent cooling
  • Commonly used when interior temperature is too warm, fluctuating, or compressor runs continuously
  • Works with the appliance's control system to trigger cooling actions as needed
What's included: One temperature regulator Install notes:
  • Disconnect power before servicing to avoid shock or damage
  • Handle the sensor and terminals carefully; avoid bending or stressing the connector
  • Verify correct orientation and secure mounting; confirm electrical connector is fully seated

More
$5.57

IN STOCK
Ships Today Guaranteed
Add to Cart
421
By: Bosch
Part Number: 00652689
$13.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
423
By: Bosch
Part Number: 00648914
$8.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
424
4.0 (1)
By: Bosch
Part Number: 00636703

This is an electrical noise filter module that mounts inside the microwave cabinet. It filters out electromagnetic interference generated by the microwave's components to prevent disruption to other nearby electronics. Replace this part if the microwave trips a breaker, fails to start, or causes interference with other appliances.

More
$36.68

IN STOCK
Ships Today Guaranteed
Add to Cart
425
Best Seller
Product photo
5.0 (2)
By: Bosch
Part Number: 00631389

Microwave won't start or trips the breaker? This circuit protection fuse opens during overloads or shorts to protect components. Easy fix after resolving cause.

More
$3.34

IN STOCK
Ships Today Guaranteed
Add to Cart
426
By: Bosch
Part Number: 00652691
$60.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
427
By: Bosch
Part Number: 00648920
$20.04

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
428
By: Bosch
Part Number: 00617236
$27.74

IN STOCK
Ships Today Guaranteed
Add to Cart
431
Product photo
5.0 (4)
By: Bosch
Part Number: 00676120

This is a charcoal filter used in over-the-range microwaves to remove odors and smoke when the microwave is set to recirculate air rather than vent outside. The filter traps grease and odor particles from cooking fumes. Replace it if you notice persistent cooking odors, reduced air filtration performance, or if the filter appears visibly saturated or discolored.

More
$13.95

IN STOCK
Ships Today Guaranteed
Add to Cart
433
Best Seller
Product photo
4.9 (8)
By: Bosch
Part Number: 00648909

This is a door latch assembly that also serves as the switch holder in a microwave. It engages the door switches when the door is closed, ensuring the microwave operates safely and only when properly sealed. Replace this part if the microwave door won't latch securely, the unit fails to start, or the door switches are not activating correctly.

More
$13.70

IN STOCK
Ships Today Guaranteed
Add to Cart
437
By: Bosch
Part Number: 00676134
$13.27

IN STOCK
Ships Today Guaranteed
Add to Cart
438
Best Seller
Product photo
5.0 (5)
By: Bosch
Part Number: 00621573

This lever is part of the door lock/latch mechanism. It engages with the latch to allow the door to lock and unlock smoothly, helping the appliance start and run only when the door is securely closed.

  • Transfers motion from the handle/lock assembly to engage or release the latch
  • Worn or broken levers can cause the door not to latch, not start, or show door-closed errors
  • Cause difficulty opening/closing or a loose handle feel when faulty
What's included: 1 lever Install notes:
  • Disconnect power and shut off water before servicing
  • Access is typically from the inner door panel; retain original screws and clips
  • Note the lever's orientation and linkage points before removal
  • Test door operation and cycle start after reassembly

More
$4.45

IN STOCK
Ships Today Guaranteed
Add to Cart
440
Best Seller
Product photo
4.9 (16)
By: Bosch
Part Number: 00617228

The Switch is an OEM part for Bosch microwaves. It plays a role in the safety and functionality of the microwave, acting as a security mechanism that prevents the microwave from operating when the door is open. This ensures that microwave radiation is contained and only in use when the door is securely closed, protecting users from accidental exposure.

Causes of a malfunctioning door switch can range from physical damage, such as cracks or wear from repeated use, to electrical issues like short circuits or disconnections.

Symptoms of a bad Microwave Door Switch include:

  • The microwave fails to start or stops unexpectedly.
  • The interior light fails to turn on or off appropriately.
  • Unusual sounds when the door is opened or closed.
  • The microwave operates only when the door is in a certain position or not at all.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

More
$8.95

IN STOCK
Ships Today Guaranteed
Add to Cart
441
Product photo
By: Bosch
Part Number: 00617233

This temperature regulator is the replacement control component that helps maintain proper temperature regulation in your appliance, restoring consistent heating or cooling performance when the original regulator fails. What it does:

  • Senses and regulates temperature input to the appliance control system to maintain set temperatures
  • Can cause inaccurate temperatures, inconsistent cycling, or failure to heat/cool when worn or faulty
  • Replaces a failed or intermittent regulator to restore normal temperature control behavior
  • Works as part of the appliance's thermal control circuit
What's included: One temperature regulator Install notes:
  • Disconnect power to the appliance before attempting any service to avoid shock or damage
  • Handle the part by its housing; avoid touching electrical contacts or circuit traces
  • Basic tools may be required; follow the appliance service manual for access and mounting steps

More
$6.68

IN STOCK
Ships Today Guaranteed
Add to Cart
442
Product photo
By: Bosch
Part Number: 00617234

The Temperature Regulator is an OEM replacement part for Bosch microwaves. It plays a crucial role as an electronic interface governing set temperatures and interior heating levels. Consistent and calibrated regulation is necessary for safe and evenly cooked meals.

Causes of a bad temperature regulator can include normal wear from continual heating cycles. Water damage from condensation or spills has the potential to impact electrical components.

Symptoms of a bad temperature regulator include:

  • Inaccurate or fluctuating interior heat, causing cold or hot spots
  • Temperature settings that do not correspond to actual conditions
  • Failure to properly increase or decrease power as programmed
  • Sensor malfunctions requiring foods to be under or overcooked

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models. Replacing it ensures continued precise temperature control and safe, reliable microwave operation.

More
$4.64

IN STOCK
Ships Today Guaranteed
Add to Cart
443
By: Bosch
Part Number: 00648919
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

444
By: Bosch
Part Number: 00648888
$8.02

IN STOCK
Ships Today Guaranteed
Add to Cart
445
By: Bosch
Part Number: 00676141
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

446
By: Bosch
Part Number: 00617231
$6.95

IN STOCK
Ships Today Guaranteed
Add to Cart
447
By: Bosch
Part Number: 00621574
$8.28

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
