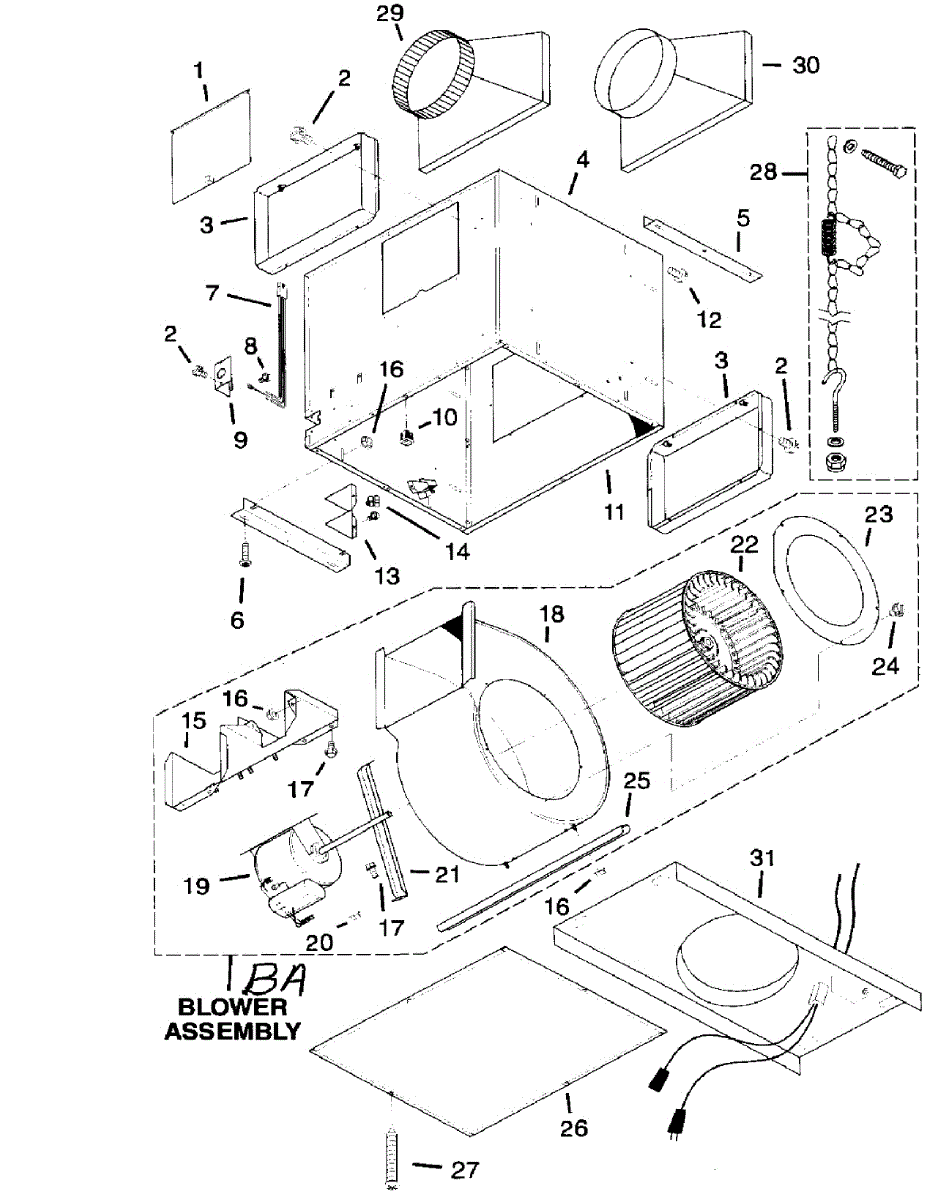

Parts for Broan ILB9: Main Asy Parts

This replacement plate serves as the appliance's mounting or cover component, restoring proper fit and finish and helping protect internal parts from debris and heat. Use when panels are loose, misaligned, or damaged. What it does:

• Covers and protects internal components from dust and grease
• Provides a secure mounting surface for adjacent parts
• Restores proper panel alignment and appliance appearance
• Helps prevent minor airflow or clearance issues caused by damaged panels

• One replacement plate as shown

• Inspect surrounding fasteners and gaskets; replace if worn before installing the plate
• Use appropriate screwdrivers and retain all original hardware
• Disconnect power to the appliance before accessing internal panels to avoid electric shock

This replacement wheel restores smooth, quiet movement for compatible Broan range hood components and assemblies. Designed to replace worn or damaged rollers so vents, dampers, or assemblies operate without binding or excess noise. What it does:

• Replaces a worn or broken roller to restore proper rotation and movement.
• Reduces grinding, scraping, or rattling caused by a damaged wheel.
• Helps maintain correct alignment of the moving component it supports.
• Prevents accelerated wear to linked parts by restoring smooth operation.

• One replacement wheel.

• Intended for qualified DIYers; disconnect power and follow OEM safety procedures before accessing internal assemblies.
• Inspect surrounding parts (axles, clips, brackets) for wear and replace if damaged.
• Use appropriate tools; do not force components—ensure the wheel seats and turns freely.

This duct transition connects a rectangular hood plenum to a round duct, providing a secure path for exhaust air and restoring proper ventilation performance. It's a direct-fit replacement designed to match original blower openings. What it does:

• Adapts a rectangular exhaust opening to standard round ducting for proper vent routing
• Maintains airflow from the range hood blower to the house duct system
• Prevents leaks and backflow when properly sealed to the hood and duct
• Helps eliminate reduced suction or noisy airflow caused by damaged or missing transitions

• Disconnect power to the hood before installing or servicing components
• Secure transition to the hood plenum and duct with sheet-metal screws and/or approved fasteners
• Use foil HVAC tape or approved duct sealant to ensure an airtight connection
• Wear gloves and eye protection when handling sheet metal to avoid cuts
