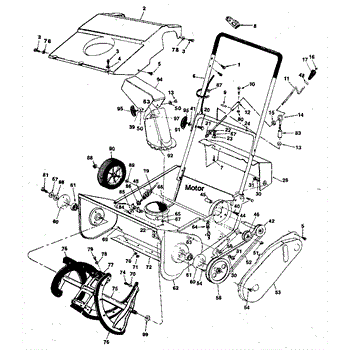

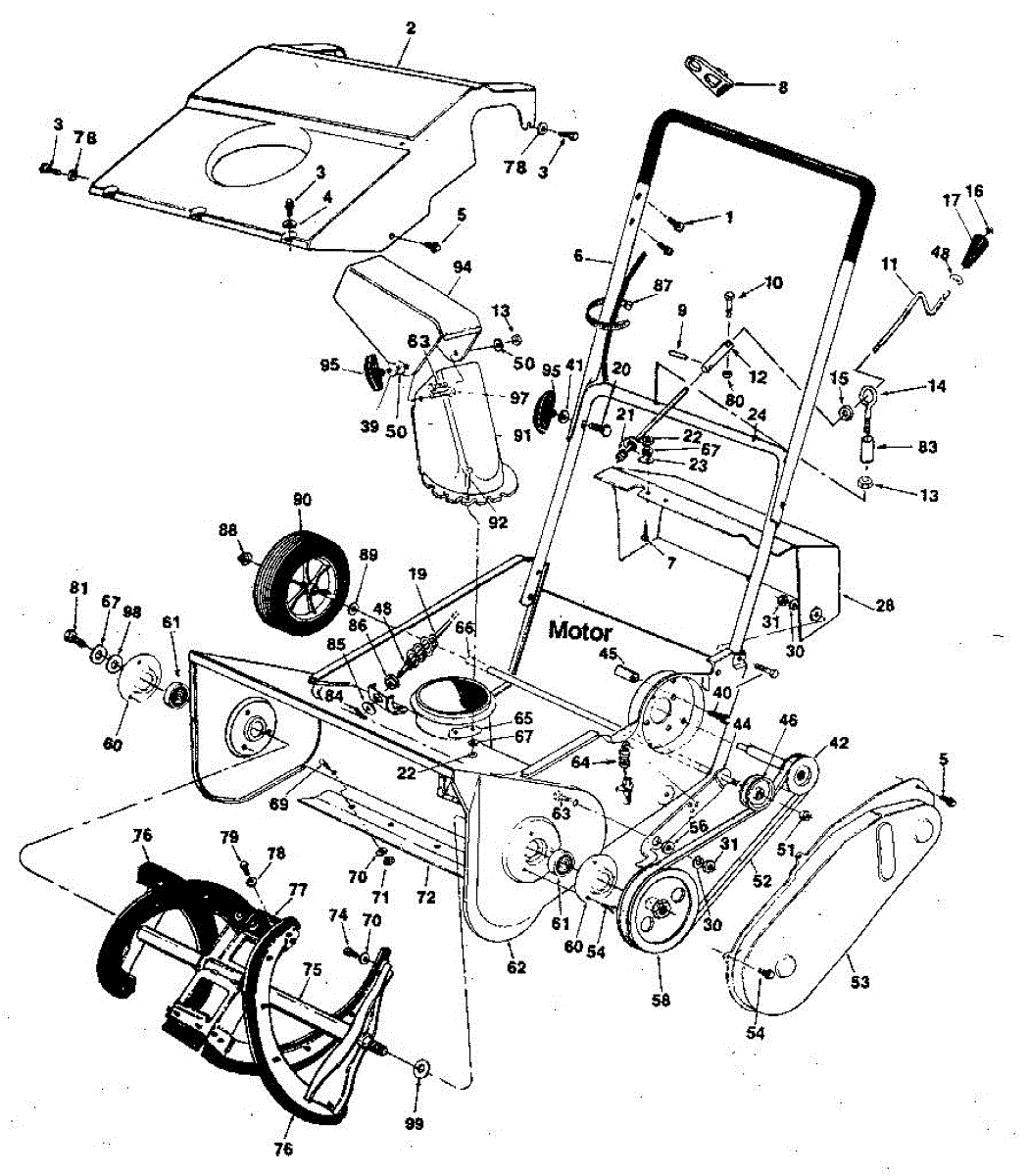

Parts for Craftsman 247882901: Main Frame Parts

This part is a replacement push nut. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or detached push nut in snow blowers.Push nuts are a special type of fastener that secures together different equipment components. Push nuts will need to be replaced if worn, broken, lost, or otherwise ineffective. When working on or near an engine, it's important to make sure the equipment is powered off and completely cool before starting any repairs. For more accurate information on how and where to install this push nut, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This push nut can be used with different models of snow blowers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This is a bushing made from black plastic with a cleft down the middle to provide enough flex for easy insertion. It has a flanged design, which means it won’t easily pop out after installation, even under stress from constant vibration. The bushing’s primary purpose is to protect wires and cables from damage as they pass through a channel. As such, the material is fairly durable and does not need to be replaced under ordinary circumstances. That said, there are some situations in which it can become damaged. For one thing, it’s easy to damage while repairing the wires or cables that run through the bushing. If the bushing does need to be replaced, it requires disconnecting any cables or wires that run through the bushing. Pop out the old bushing with a rubber mallet, install the new bushing the same way, reconnect the wires, and the repair is complete. This is an OEM part sourced directly from MTD, and it is sold individually. It was initially used on snowblowers but has also been used on lawnmowers and lawn tractors.

The drive V-belt, manufactured by Craftsman, is used in one- and two-stage snow blowers as well as tillers. This is a drive belt that connects the engine to the auger of the tiller or snowblower via a pulley at either end. This turns the blades of the tiller or the auger blades of the blower to expel snow. As a flexible, hardened rubber part connecting other moving parts, a V-belt is considered “replaceable,” meaning that users should expect to have to replace this part during normal use of the equipment. Signs that a drive V-belt may be going bad are a squealing sound when the blower's auger or the tiller's blades are first engaged, or if the auger is slow to engage and loses power during use. To replace the V-belt, the equipment must be secured and the spark plug caps removed. Tilt the device to reveal the location of the belt. It must detached from the engine pulley and the transmission pulley. When replacing the V-belt, before tightening the pulley, make sure all moving parts are properly aligned. This genuine OEM part is compatible with machines sold by MTD, Yard Man, Craftsman, and Yard Machine.

This hex screw is a genuine MTD part, sold individually. A hex screw can be used as a replacement part for outdoor appliances including lawn mowers, snowblowers, leaf blowers, and wood chippers. This part is a fastener.The hex screw in a outdoor appliance might be easily lost or damaged at some point within its typical lifespan. If the screw has been lost, it should be immediately replaced by this genuine OEM replacement part; additionally, if the screw has been punctured, dented, cracked, warped, or eroded, it should be immediately replaced.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Husky, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

The sealed ball bearings are used as a means to limit the amount of friction that occurs between a fixed part of the assembly and a rotating shaft. They can be used for numerous applications in lawn and garden equipment. The ball bearings are used in various locations of different types of machines, so the issues that could crop up will vary. Typically, bad ball bearings will create knocking sounds in the engine, or parts in the engine could be difficult to turn. When the ball bearings are no longer sealed or not functioning properly, they should be replaced. This genuine OEM replacement ball bearing is sold individually. The ball bearing works with many models of lawn mowers, snowblowers, edgers, wood chippers, and tillers. Compatible brands include Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. Buyers should always ensure they are buying the correct parts for their make and model.

This carriage bolt is a self-locking bolt designed to be used in an unthreaded square or round hole. These bolts are used in outdoor lawn and garden equipment due to their ability to handle heavy weight loads.Carriage bolts are often used to join lawnmower handles to the base of the mower. Over time, the vibration of the lawnmower may cause the bolt to become loose. During routine maintenance, if the bolt is loose, use a wrench to tighten the nut holding the bolt in place. If the bolt is missing, this carriage bolt replacement can be installed. Push the bolt through the hole; if the fit is snug, it may need to be lightly tapped. Once the bolt is through the other side, thread a nut on the bolt. Tighten the nut with a wrench.This is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit and does not come with the nut. This carriage bolt is designed for lawnmowers, snowblowers, and other outdoor lawn and garden equipment manufactured by Bolens, Craftsman, Cub Cadet, Huskey, Troy-Bilt, Turf Pro, MTD, Ryobi, and Mastercut.

The shave plate, also called the scraper bar, is an important but often overlooked part of a snowblower. This thin metal strip sits at the bottom of the auger housing against the ground and gathers the snow the auger will expel through the chute. Made of hard plastic, the shave plate is the only part of the snowblower that actually touches the snow-covered ground without rolling. As durable as the shave plate is manufactured to be, it constantly comes into contact with unseen objects that pound, slice, and pit it. Eventually, the shave blade has to be replaced. To replace the blade, simply invert the blower, unscrew the old blade, attach the new blade, and put the blower right side up again. As long as the user is replacing the shave plate and has the machine upside down, this is an ideal time to check for damage to the wheels, the auger blades, driveshaft, and the condition of the shear pin. If this replacement is taking place in preparation for the coming winter, it might be a good time to replace the oil and oil filter as well. Be sure to use genuine OEM replacement parts that perfectly match the factory originals. This blade is compatible with snowblowers made by Yard-Man, Bolens, Yard Machines, Troy-Bilt, Craftsman, Ryobi, Cub Cadet, Huskee, Montgomery Wards, and Ryobi.

This replacement part is a rubber spiral. This is a genuine replacement part made by MTD. This particular part is found in snowblowers and is able to keep the entire machine running smoothly and effectively. A new rubber spiral might be needed if the current one is visibly not up to working standard. If the rubber is worn down, torn, cracked, or chipped, it is recommended that it be replaced so that the machine can return to working order. Be sure to wear work gloves during this repair to allow for safety. It is also recommended that the power to the appliance be turned off to ensure that the engine is not running when replacing this part. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit. This part is a genuine OEM replacement part.

This replacement part is a hex screw. It is a genuine replacement part made by MTD. This type of part is very common in different types of appliances and machines. Hex screws are important in holding parts together so that the user is able to operate the appliance smoothly.A new hex screw might be needed if the user notices that different parts of the appliances are loose or missing. It is possible for hex screws to become stripped over time and will need to be replaced. The repair for this screw should be simple and will most likely require a screwdriver and perhaps pliers if the previous screw is stuck in place. This is a genuine OEM replacement part. This part is sold individually. It is sourced directly from the manufacturer to ensure proper fit and long-lasting use.

This part is a replacement push cap. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current push cap is broken or has been misplaced, this part can be used as a replacement. It is intended for use with several lawnmower models.The push cap is attached to the wheel hub cap and fits over the end of the axle shaft. This helps to protect the end of the shaft and the attached bolt that holds the wheel into position. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this push cap, the appropriate owner's manual and equipment diagrams should be referred to. This push cap is suitable for use on a variety of lawnmower models manufactured by MTD, Yard Machines, Craftsman, Yard Man, and Troy-Bilt. It is a genuine OEM part and thus is made of high-quality, durable materials. This part is sold individually.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.
