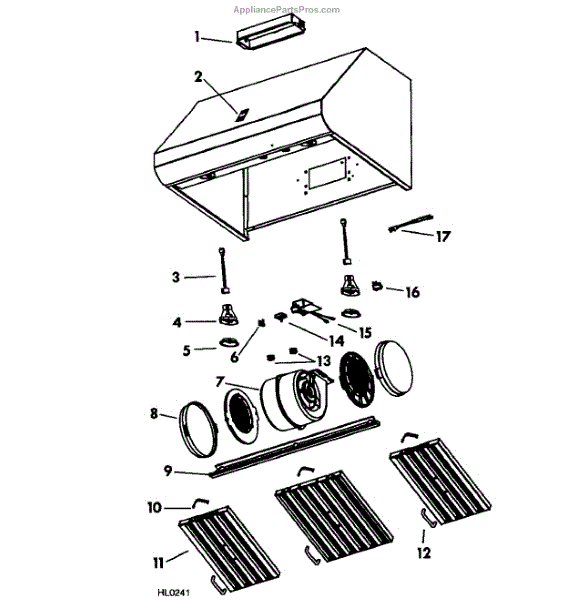

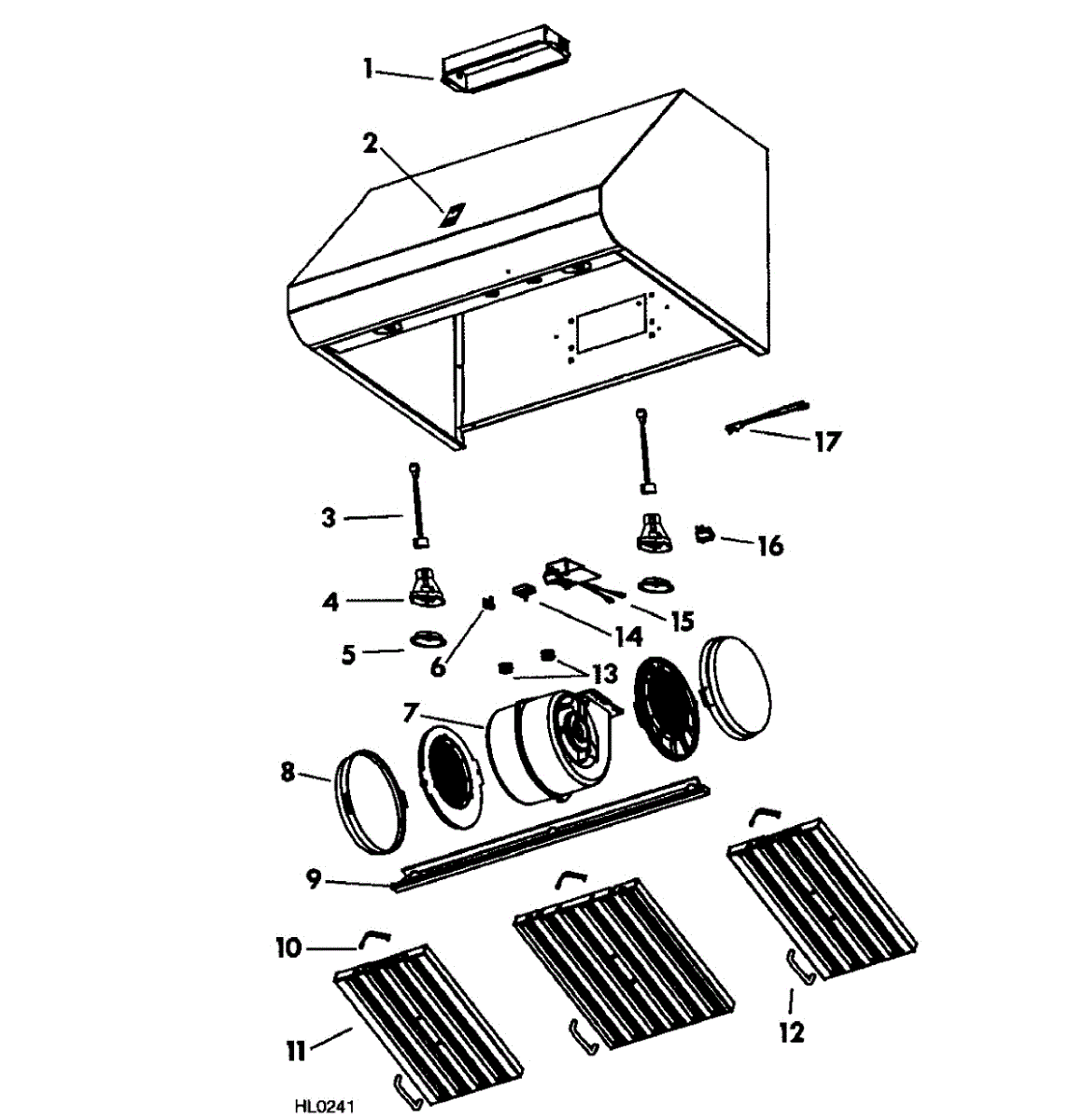

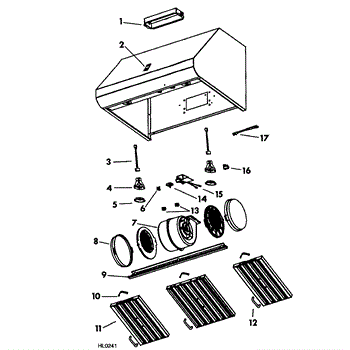

Parts for Kenmore 233.56043510 (23356043510, 233 56043510): Main As Parts

This lamp socket is the replacement bulb holder that completes the electrical connection for a range-hood or ventilation light assembly, restoring reliable illumination when a socket is worn or damaged. What it does:

• Holds and secures the light bulb while providing the electrical contact needed for the lamp to operate.
• Replaces a cracked, loose, or burned socket that can cause intermittent lighting or a bulb that won't stay seated.
• Helps resolve symptoms such as flickering lights, no light output even with a good bulb, or visible socket damage.
• Re-establishes a safe connection so the light can operate at normal brightness when the fixture and bulb are functional.

• Always disconnect power to the appliance at the breaker or unplug before starting work.
• Remove the bulb and any housing or grille to access the socket; replace the socket and secure wiring connections per the appliance's wiring layout.
• Use only compatible bulbs and follow the appliance manufacturer's instructions; if wiring is damaged or corroded,
• After installation, restore power and test the light; if problems persist, verify wiring continuity and fixture compatibility.

This trim ring is the finished outer ring that fits around a ventilation or range hood opening to restore a clean, sealed look and cover the gap between the housing and ceiling or cabinet. It provides a simple cosmetic repair and helps hold the hood trim in place. What it does:

• Covers and finishes the visible edge of the vent or hood opening for a neat appearance
• Conceals cut edges and mounting gaps for a professional-looking installation
• Helps stabilize and align the outer grille/trim to reduce rattling or misalignment
• Restores the original exterior look after removing or replacing internal components

• One trim ring

• Turn off power to the appliance at the breaker before working on the hood or vent
• Handle edges carefully; trim pieces can have sharp edges
• Installation generally requires removing the existing trim and securing the ring with the original fasteners; consult your model's installation instructions

This thermostat is a temperature-sensitive switch used in select ventilation products. It controls power based on heat, helping the unit start or stop automatically and safeguarding internal components for consistent, reliable operation.

• Monitors temperature and opens/closes the circuit at a preset point
• Helps the fan or motor turn on/off automatically as temperatures change
• Common signs include: won't start or won't shut off with temperature, runs only when bypassed, or cycles erratically

• Disconnect power at the breaker before servicing
• Note wire positions; transfer leads one at a time to the new thermostat
• Mount in the original location and orientation; avoid bending or contaminating the sensing surface
• Restore power and verify proper operation

This motor and blower wheel assembly powers the fan that moves air through your ventilation unit. Replace it to restore proper airflow when the original motor is noisy, slow to start, seized, or the wheel is damaged. What it does:

• Electric motor spins the blower wheel to move air through the housing and out of the unit
• Helps resolve weak airflow, humming without turning, failure to start, or intermittent operation
• Addresses loud squealing/grinding noises, rattling, or excessive vibration from a wobbly wheel
• Restores normal ventilation performance when the wheel is cracked, seized, or out of balance

• One motor with attached blower wheel

• Disconnect power at the breaker before servicing
• Remove grille/cover; note wire locations and orientation of the old assembly
• Transfer any mounting brackets or connectors from the original assembly if required by your unit
• After installation, spin the wheel by hand to ensure free movement and clearance before restoring power

Control knob that restores manual control to a faulty or damaged appliance control shaft, making settings easy to change and improving safety and usability for range hoods and cooktop controls. What it does:

• Replaces a cracked, worn, or missing control knob to regain tactile control of settings.
• Provides a secure grip for turning fan speed, light, or burner controls.
• Helps stop slipping, spinning, or inconsistent control response caused by damaged knobs.

• Disconnect power to the appliance before attempting service.
• Pull the old knob straight off the control shaft; align splines and press the new knob onto the shaft until fully seated.
• If the knob uses a set screw, tighten it gently; do not overtighten.
• If the control still slips after installing the knob, inspect the shaft and switch for damage and replace as needed.

This light switch controls the lamp circuit on your ventilation unit, allowing you to turn the light on and off reliably. Replacing a worn switch restores consistent lighting and a positive, dependable control feel. What it does:

• Sends power to the light circuit when switched on
• Restores reliable on/off light operation
• Common fixes: light won't turn on, won't turn off, or is intermittent
• Addresses a switch that feels loose, sticks, or fails a continuity test

• 1 light switch

• Disconnect power at the breaker before servicing
• Photograph/label wire locations and transfer one at a time to the new switch
• Seat the switch fully and route wires to avoid pinching
• Restore power and test light operation before reassembly
