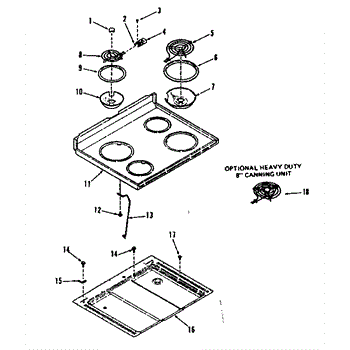

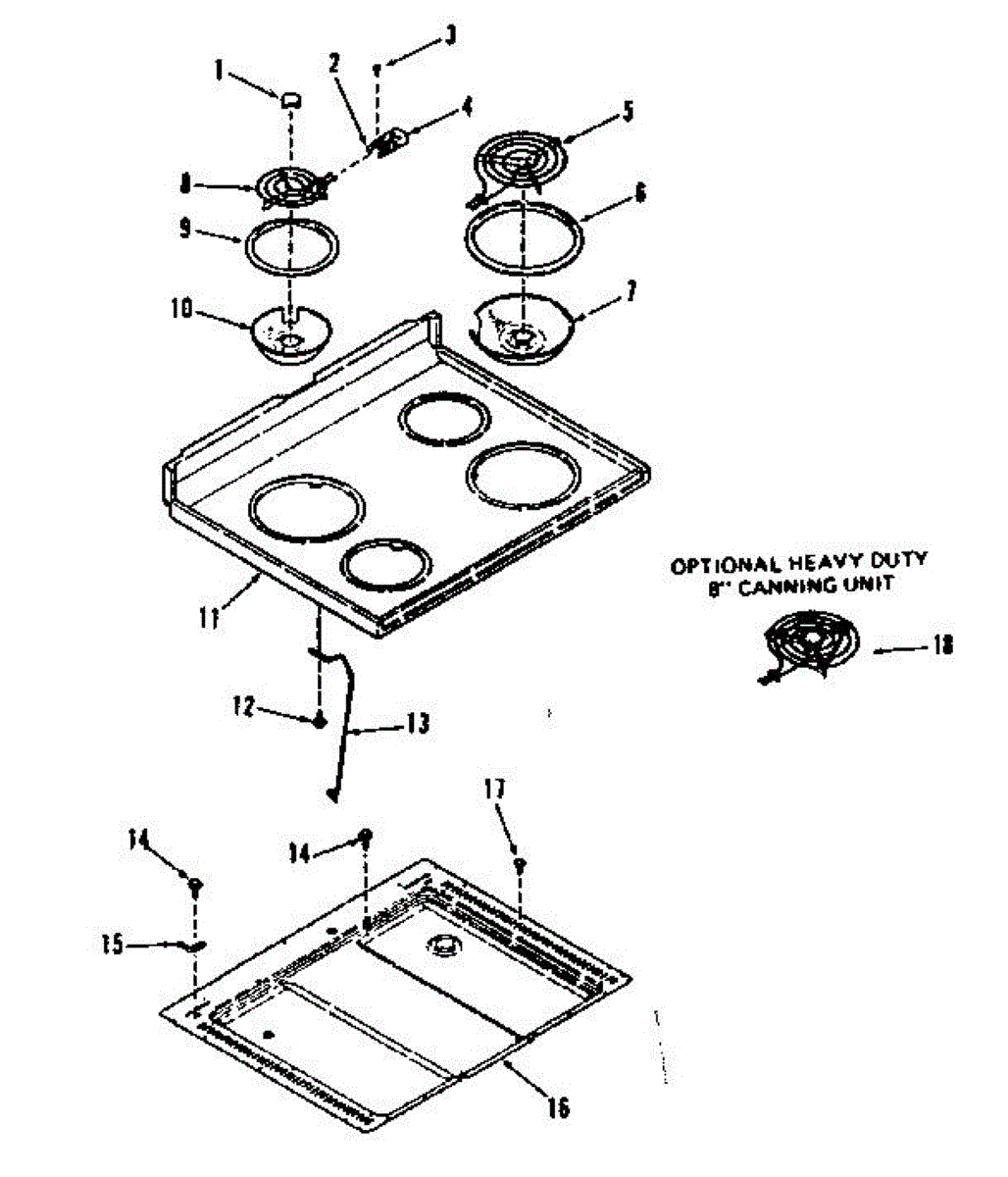

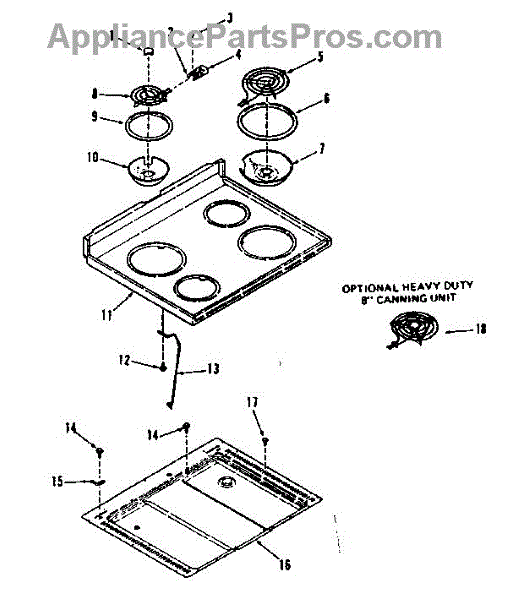

Parts for Kenmore 911.9368710 (9119368710, 911 9368710): Main Section Parts

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 8-inch surface burner element is the plug-in coil used on many electric ranges. Replacing a worn or failed element restores reliable heating and more even cooking performance on your stovetop.

• Provides heat to pots and pans when energized by the surface control
• Common fix for an element that won't heat or only heats partially
• Addresses visible coil damage such as breaks, blisters, or burned spots
• Corrects intermittent heating caused by an open or failing element

• Disconnect power to the range/unplug before servicing and ensure the element is cool
• Lift the old coil slightly, then pull straight out from the receptacle
• Inspect the receptacle/terminal block and drip bowl; replace if overheated or damaged
• Fully insert the new element terminals into the receptacle, seat the coil level, and test

This 6-inch surface element restores steady, even heat to the small burner on your electric range. Replace a burned-out coil to get back to reliable boiling, simmering, and everyday cooking performance.

• Converts electrical power into heat at the 6-inch burner position
• Helps when the small surface burner won't heat or heats unevenly
• Common signs include visible hot spots, blistering, or burned/loose terminals
• Seats in the drip bowl and connects to the proper surface element receptacle

• Disconnect power at the breaker or unplug the range; allow the element to cool before servicing
• Lift the old element from the drip bowl and pull straight out from the receptacle; avoid twisting or bending the coil
• Inspect the element receptacle for heat damage; replace the receptacle if contacts are burned or loose
• Fully seat the new element and ensure it sits level in the drip bowl before use

ST10-16 X 7/16"

The Surface Element is an OEM part for Whirlpool ranges. This part provides heat to the cooking surface, allowing for the preparation of food.

Common causes of a bad surface element include electrical faults, physical damage from heavy cookware, or degradation from constant heating and cooling cycles.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage such as burns or breaks in the coil
• Sparking or unusual noises when the element is turned on

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
