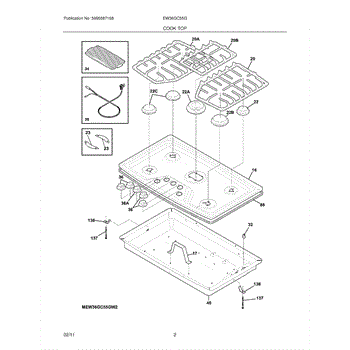

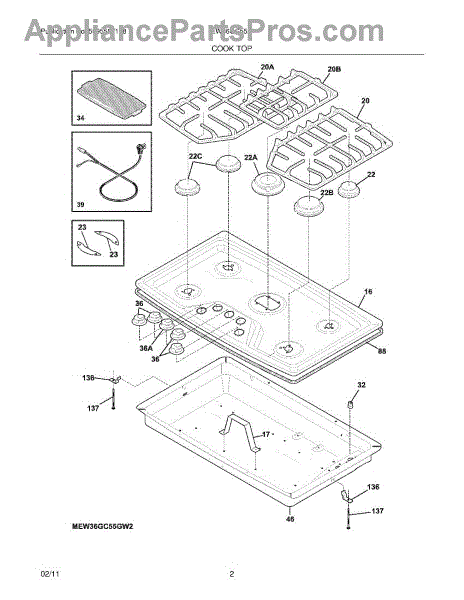

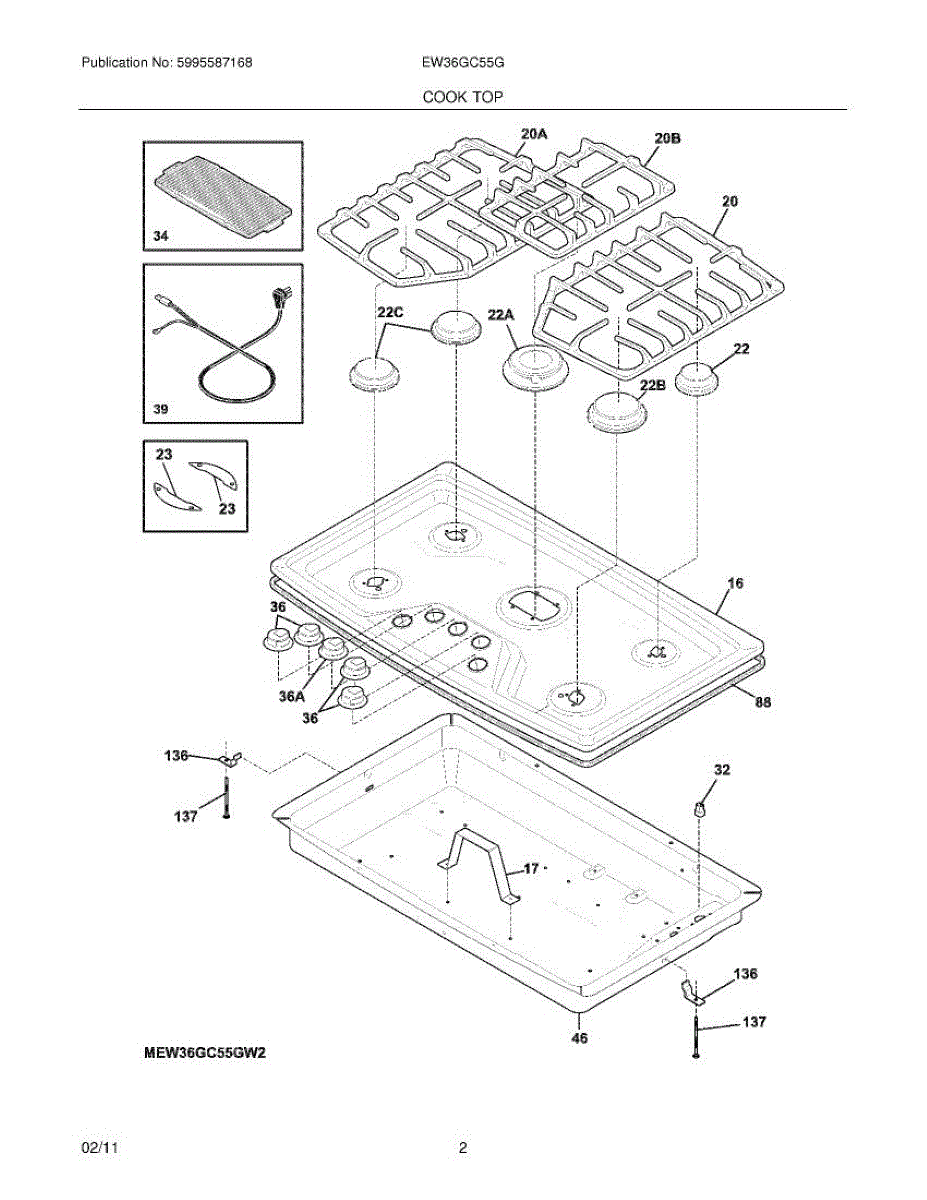

Parts for Electrolux EW36GC55GB2: 03 - Main Top Parts

This burner cap is the replacement top piece for a surface gas burner, restoring proper flame shape and heat distribution for reliable cooking. It helps protect the burner head and keeps the flame centered for consistent performance. What it does

• Centers and shapes the burner flame for even heating across cookware
• Protects the burner head from spills and debris that can block ports
• Helps prevent yellow or irregular flames caused by a damaged or misaligned cap
• Common symptom: uneven or weak flame, burner flame that drifts or won't stay lit

• Turn off the range and ensure all surfaces are cool before servicing
• Lift off the old cap from the burner head; no tools are typically required
• Set the new cap flat and centered on the burner head so it sits flush
• If problems persist after replacement, inspect the burner head and ports for blockage

This removable cooktop griddle provides a flat, durable cooking surface for preparing pancakes, sandwiches and other foods over range burners. It restores a smooth, even surface for stovetop griddle cooking when the original is damaged or worn. What it does:

• Replaces a worn, warped or damaged cooktop griddle to restore an even cooking surface
• Provides a flat, continuous surface for foods that need consistent contact with heat
• Helps reduce hot spots and sticking when the original griddle surface is compromised
• Works with compatible range/cooktop configurations that accept a removable griddle plate

• One removable cooktop griddle plate

• Disconnect power to the appliance (and turn off gas if applicable) before handling parts
• Allow the appliance and griddle to cool completely before removal or installation
• Fit the griddle into the cooktop openings so it sits flat and level; verify proper seating before use
• Clean per manufacturer guidance; avoid abrasive tools that can damage the cooking surface

This replacement power cord restores electrical connection to your appliance so it powers on safely and reliably. Designed as a direct-fit electrical cord to replace damaged, cut, or worn factory cords. What it does

• Provides the primary AC power connection from the wall outlet to the appliance.
• Replaces frayed, cracked, or damaged cords that can cause intermittent power or safety hazards.
• Helps resolve no-power or intermittent-power symptoms when the cord is the root cause.
• Restores a secure connection at the appliance and outlet when properly installed.

• Disconnect power at the breaker or unplug the appliance before starting any work.
• Route the cord through the appliance's strain relief and secure all wiring connections per the appliance's wiring diagram.
• Use insulated tools and avoid pinching or sharp bends in the cord; replace strain reliefs if damaged.

Note: Quantity of two brackets

This is an authentic OEM replacement bracket locking screw sourced directly from the manufacturer for use on range tops. The stovetop bracket is attached to the stovetop and the stove body. This locking screw is a fully threaded 2.1-inch screw. If this screw becomes loose or rusted, it should be removed and replaced to ensure the stovetop remains fully seated and in good working condition. If the screw is missing, the stovetop bracket will not be fully functional, and the stovetop could become loose. To start, disconnect the power and gas from the unit before replacing the screw on the bracket. Make certain the stove burners are not hot. Remove the burner grates, burner caps, and control knobs. Lift the range top cover. Locate the mounting bracket on the wall unit. If the screw is in the bracket but has rusted, use a screwdriver to remove the missing screw. Set the nut aside for use on the new screw. Install the new screw and the nut from the last screw. Check the bracket alignment before tightening the screw. Tighten the screw to the nut. Lower the stovetop and reconnect the power and gas. This bracket locking screw is a heavy-duty 2.1-inch silver metal screw. It is designed for use on gas ranges manufactured by Frigidaire, Kenmore, Electrolux, and Crosley.
