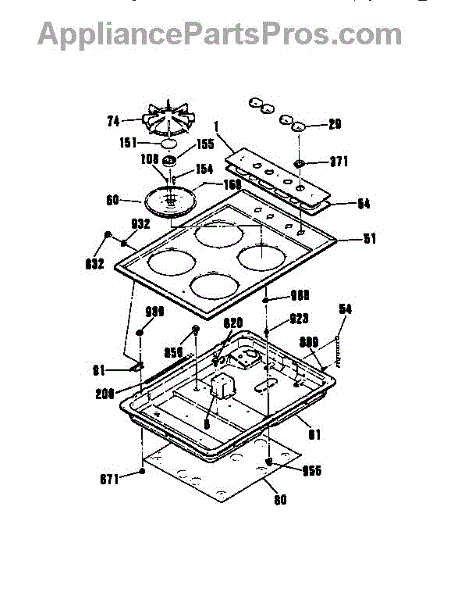

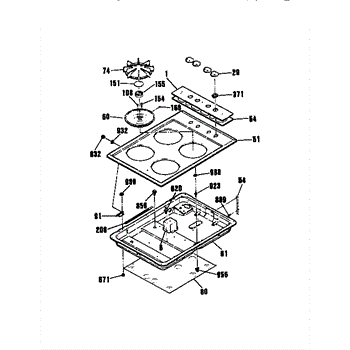

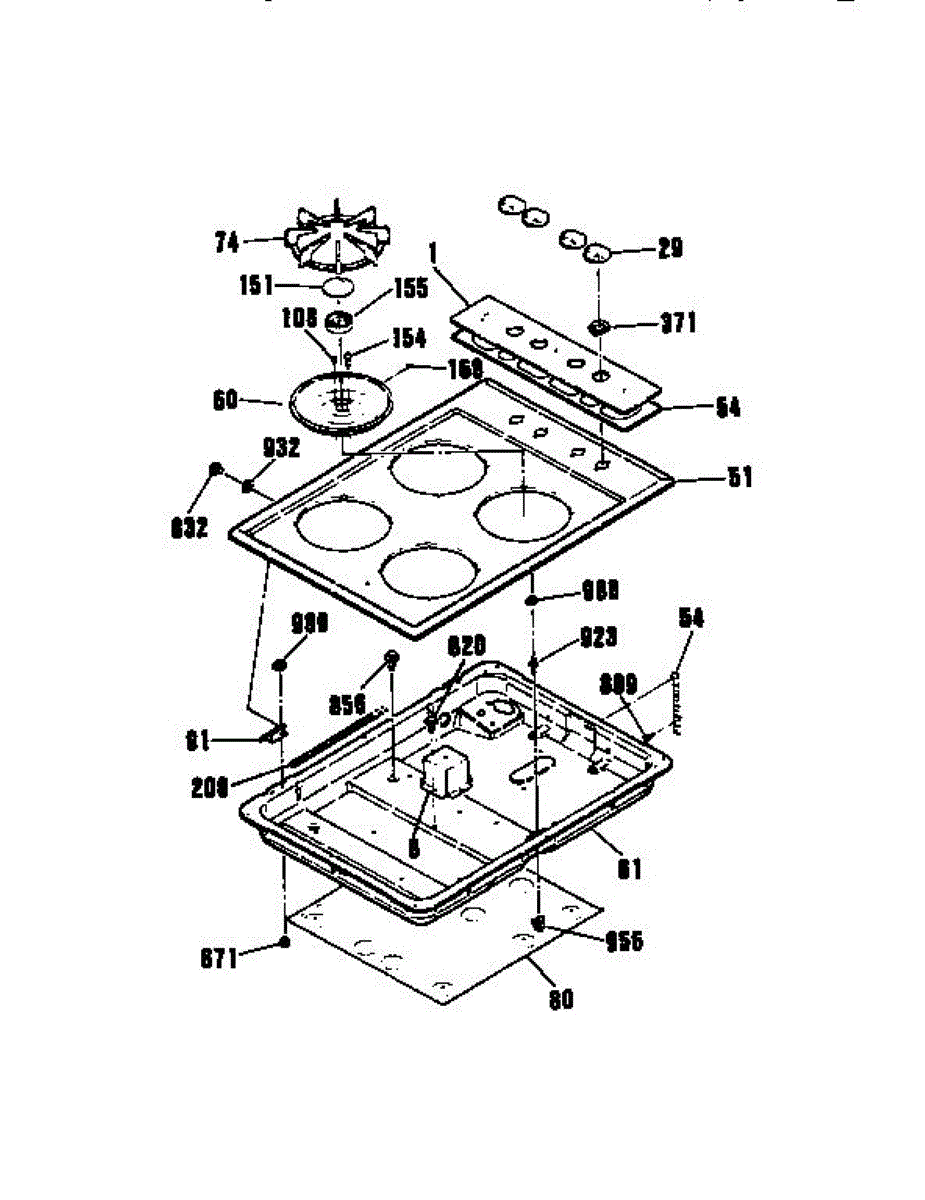

Parts for Kenmore 911.32255590 (91132255590, 911 32255590): Main Top Section Parts

White burner drip bowl sits beneath coil elements to catch spills and reflect heat. Replace worn, discolored, or scratched bowls to refresh appearance.

Color: Black.

Circular burner grate for gas range cooktops. Replaces worn, chipped, rusted, or broken grates. Supports cookware over burner flame assembly.

Fix burners that won't light or click continuously. This igniter electrode sparks to light gas burners. Easy 5-10 minute repair with a screwdriver.

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

Foam seal tape creates an airtight barrier between your cooktop and countertop, preventing spills from dripping into cabinets. Replace when worn or gaps appear.

Gray. Used on the white model

Black

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Package of 12

Nickel

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

This printed user manual provides original operating, safety, and maintenance guidance so you can set up and use your appliance correctly and safely. It replaces a lost or damaged owner's manual and helps with everyday care and basic troubleshooting. What it does:

• Explains safety warnings and proper use to reduce risk of injury or damage
• Covers setup and basic operating procedures for the appliance
• Lists routine maintenance and cleaning recommendations to extend service life
• Offers common troubleshooting tips and guidance
• Clarifies control functions and feature descriptions for confident operation

• No tools required; store the manual near the appliance for quick reference
• Follow all safety warnings and disconnect power before servicing the appliance
• Keep this manual for future reference or for new owners
