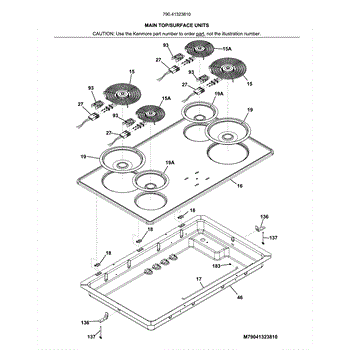

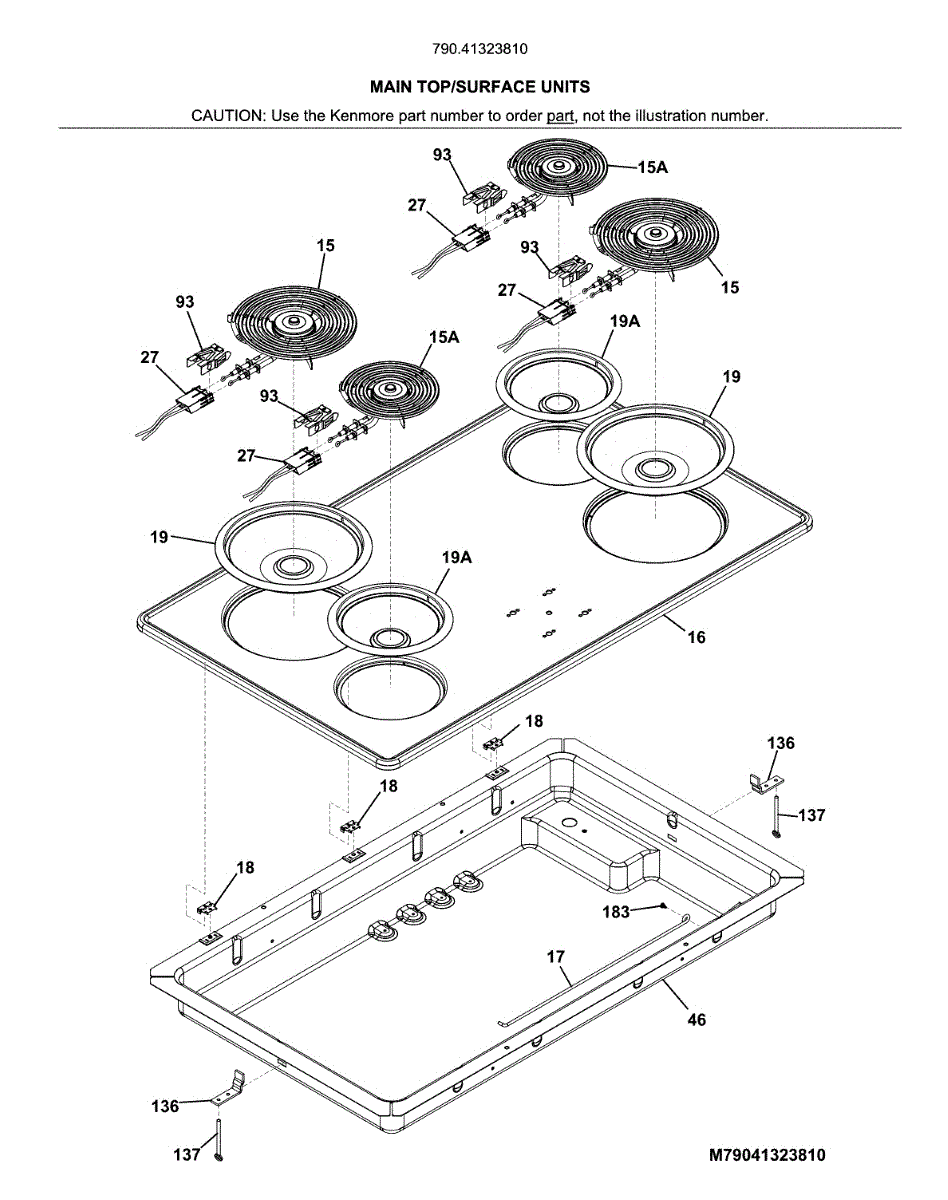

Parts for Kenmore 790.41323810 (79041323810, 790 41323810): Main Top / Surface Units Parts

This is a 6-inch coil surface heating element designed for use on an electric range cooktop. It provides heat for smaller burners on the stovetop surface. Replace this element if the burner no longer heats up, heats unevenly, or has visible damage such as blistering, pitting, or burn-through spots.

Element not heating? This surface element is the most common fix. Compatible with Frigidaire electric ranges. Tests between 15-45 ohms resistance.

Replace cracked, rusted, or stained drip pans under your range burners. Catches spills and protects cooktop. Easy snap-in installation, no tools needed.

Chrome drip pan installs beneath range burner elements to catch spills and drips. Replaces cracked, rusted, or worn pans for a clean cooktop appearance.

This terminal block kit restores the oven/range power connection where the cord attaches, helping re-establish a safe, reliable electrical connection and preventing sparking or intermittent power. Designed as a direct replacement for the factory power connection assembly. What it does:

• Replaces a cracked, burned, or loose terminal block that can cause arcing or intermittent power
• Provides secure connection points for the incoming power cord conductors
• Helps eliminate burning smells, visible arcing, or power loss at the range/oven
• Restores proper mechanical mounting of the cord connection for safe operation

• Disconnect all power at the breaker or service panel before starting — verify power is off
• Handle wiring and terminals carefully to avoid damage; use proper tools and fasteners
• Tighten terminals to manufacturer torque specs if available; loose connections can overheat

If your cooktop won't heat or has no power, a faulty terminal block may be the cause. This electrical connector transfers power to heating elements.

This is a metal support bracket that helps secure and stabilize the firebox or internal cavity structure of the range or cooktop. It provides structural reinforcement to keep components properly aligned during operation. Replace this bracket if it is bent, broken, or corroded, which can cause misalignment of internal parts or rattling noises during use.

Replacement mounting screw for gas cooktops. Secures panels, trim, and brackets. Needed when original screw is stripped, missing, or damaged during repair.
