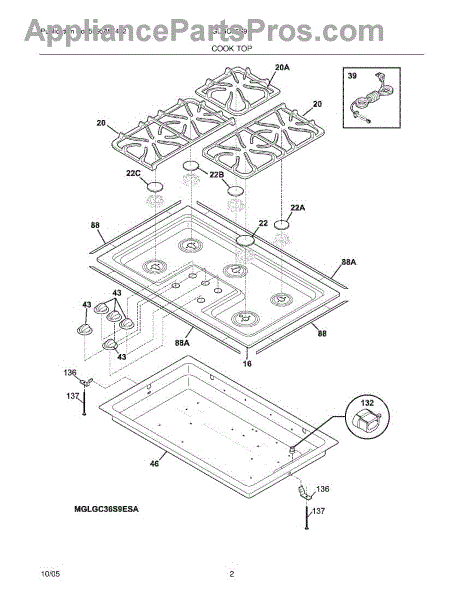

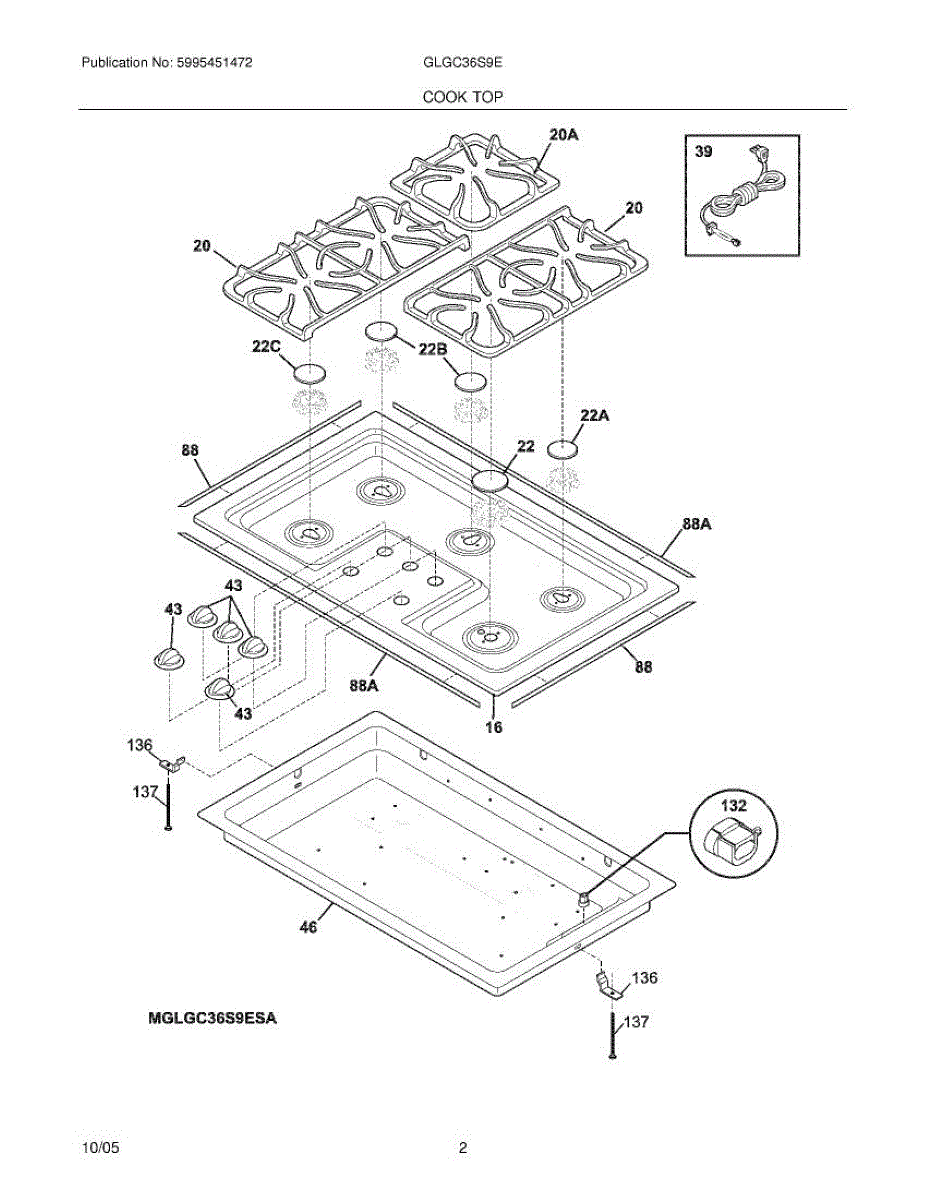

Parts for Frigidaire GLGC36S9EQA: 03 - Maintop Parts

This cast cooktop grate supports pots and pans on the range surface, restoring a stable cooking surface and proper burner clearance. Durable design resists heat and daily wear for reliable cooking performance. What it does:

• Provides a stable platform for cookware over the burner
• Maintains correct clearance for even flame distribution
• Prevents direct contact between cookware and cooktop surface
• Replaces cracked, warped, or missing grates that cause instability

• One cooktop grate

• Ensure burners and cooktop are cool before installing or removing
• Lift into place—no special tools required for standard drop-in grates
• Inspect burners for proper alignment after installing the grate
• Clean with non-abrasive cleaners; avoid prolonged soaking if enamel-coated

This replacement power cord restores electrical connection to your appliance so it powers on safely and reliably. Designed as a direct-fit electrical cord to replace damaged, cut, or worn factory cords. What it does

• Provides the primary AC power connection from the wall outlet to the appliance.
• Replaces frayed, cracked, or damaged cords that can cause intermittent power or safety hazards.
• Helps resolve no-power or intermittent-power symptoms when the cord is the root cause.
• Restores a secure connection at the appliance and outlet when properly installed.

• Disconnect power at the breaker or unplug the appliance before starting any work.
• Route the cord through the appliance's strain relief and secure all wiring connections per the appliance's wiring diagram.
• Use insulated tools and avoid pinching or sharp bends in the cord; replace strain reliefs if damaged.

Note: Quantity of two brackets

This is an authentic OEM replacement bracket locking screw sourced directly from the manufacturer for use on range tops. The stovetop bracket is attached to the stovetop and the stove body. This locking screw is a fully threaded 2.1-inch screw. If this screw becomes loose or rusted, it should be removed and replaced to ensure the stovetop remains fully seated and in good working condition. If the screw is missing, the stovetop bracket will not be fully functional, and the stovetop could become loose. To start, disconnect the power and gas from the unit before replacing the screw on the bracket. Make certain the stove burners are not hot. Remove the burner grates, burner caps, and control knobs. Lift the range top cover. Locate the mounting bracket on the wall unit. If the screw is in the bracket but has rusted, use a screwdriver to remove the missing screw. Set the nut aside for use on the new screw. Install the new screw and the nut from the last screw. Check the bracket alignment before tightening the screw. Tighten the screw to the nut. Lower the stovetop and reconnect the power and gas. This bracket locking screw is a heavy-duty 2.1-inch silver metal screw. It is designed for use on gas ranges manufactured by Frigidaire, Kenmore, Electrolux, and Crosley.
