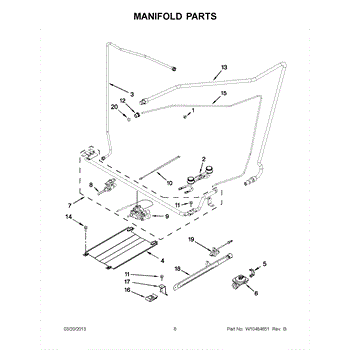

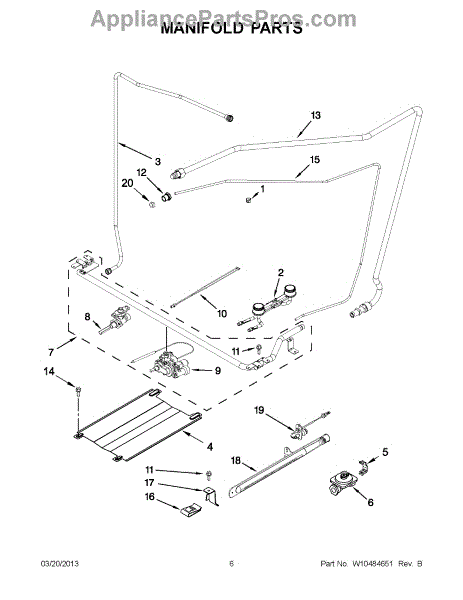

Parts for Amana AGP200VDW1: 03 - Manifold Parts

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This fitting tube connects a section of appliance tubing to the service plumbing to restore a sealed fluid path and prevent leaks. It's a direct-replacement plumbing fitting used where small-diameter tubing joins a fixed port. What it does

• Forms a secure connection between tubing and a plumbing port to maintain water/condensate flow
• Stops symptoms like visible leaks, pooling water, or reduced fill/drain performance when the original fitting is damaged
• Provides the proper interface for OEM tubing size and routing in the appliance
• Helps restore normal operation without altering factory plumbing

• One fitting tube

• Disconnect power and shut off water supply before servicing
• Drain remaining water from lines to reduce mess and pressure before removing old fitting
• Hand-start fittings then tighten to OEM torque; avoid over-tightening which can crack ports or tubing
• Inspect connections for leaks after restoring water and power; re-tighten if needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This pilot burner supplies the small, continuous flame that lights the surface burners on gas ranges/cooktops, helping ensure reliable burner ignition and steady performance.

• Provides a steady pilot flame to ignite the surface burners
• Helps restore lighting when surface burners won't ignite or the pilot won't stay lit
• Can address weak or inconsistent pilot flame at the top burners
• Typical signs include repeatedly having to relight the pilot or burners going out during use

• Disconnect electrical power and shut off gas before servicing
• Allow the appliance to cool and ventilate the work area
• Inspect and clean mating surfaces; replace brittle tubing or cracked fittings as needed
• After installation, check for leaks and adjust the pilot flame per the service manual
