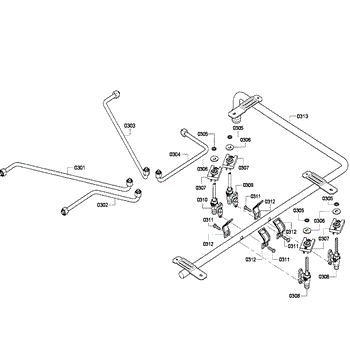

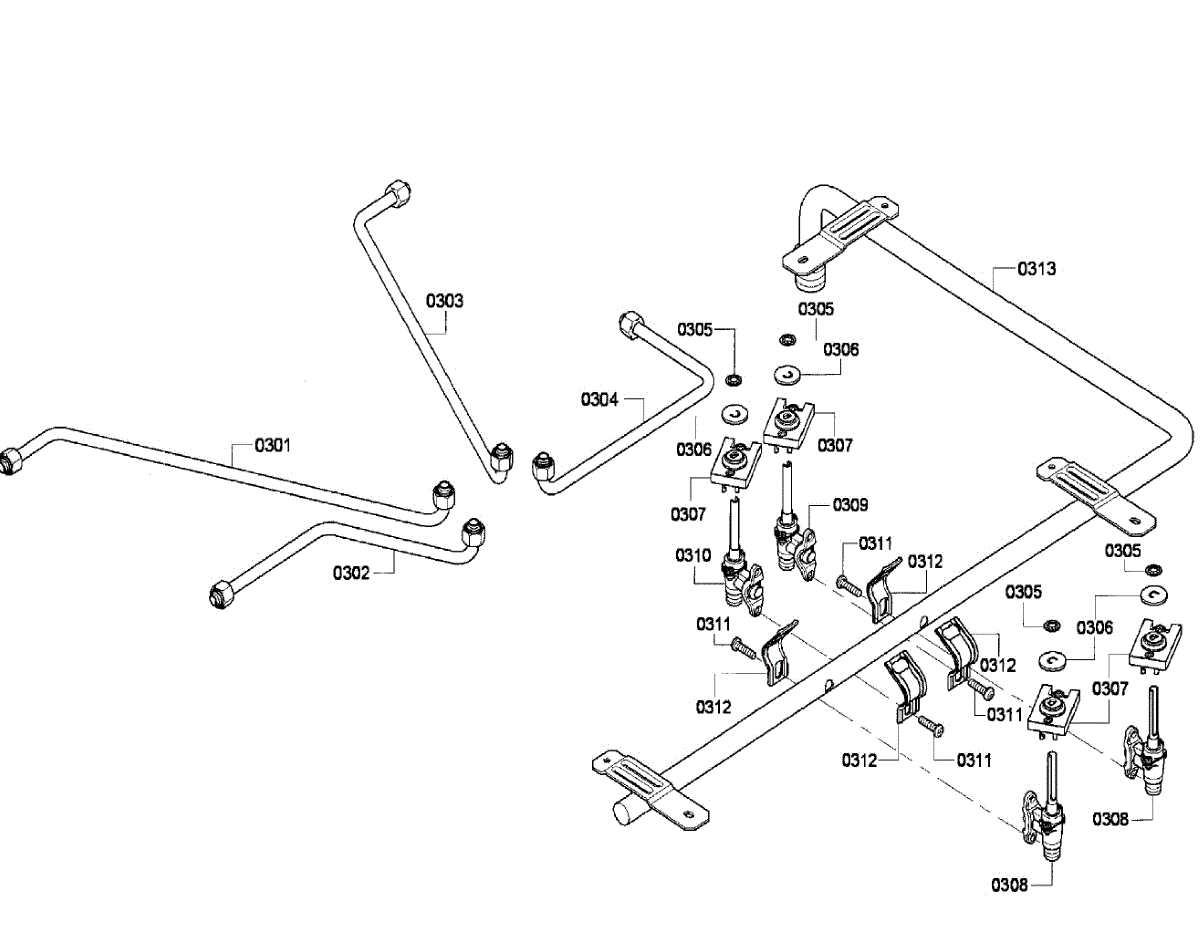

Parts for Bosch NGM5064UC/04: Manifold Parts

This tube routes water inside the appliance to maintain proper flow where the original tubing is damaged or worn. It restores sealed water routing to prevent leaks and help the appliance operate as intended. What it does:

• Directs water between internal components to maintain proper circulation or drainage
• Restores a sealed path where cracked or brittle tubing causes leaks
• Helps eliminate symptoms like intermittent leaking, poor drainage, or water pooling
• Used wherever the appliance's original tubing is broken, collapsed, or clogged

• One replacement tube

• Disconnect power and shut off water supply before starting any repair
• Inspect mounting clips and fittings; replace any damaged clips or clamps for a secure seal
• Use appropriate hose clamps and ensure proper routing to avoid kinks

This retaining washer secures a control shaft or hub to keep components in place during operation, helping restore proper control movement and prevent parts from sliding off the shaft. Simple replacement when a worn or missing retainer causes loose knobs or shifting parts. What it does:

• Fits onto a control or drive shaft to hold a knob, hub or gear in position
• Prevents axial movement that can cause loose or slipping controls
• Commonly replaced when the original washer is bent, cracked, or lost
• Works with compatible Bosch control assemblies and hubs

• One retaining washer

• Recommended for users comfortable with basic appliance disassembly; unplug appliance before starting
• Remove the control knob or panel per model instructions to access the shaft
• Press the washer into place on the shaft until fully seated; verify proper fit and control operation

This replacement door gasket seals the dishwasher door to keep water inside the tub and help maintain wash performance. It restores a tight door seal to reduce leaks and prevent water from pooling around the appliance. What it does:

• Creates a watertight seal between the door and tub to stop leaks during cycles
• Helps prevent water from dripping onto floors and surrounding cabinetry
• Reduces steam and moisture escape that can cause odors or damage
• Restores proper door closure where worn or flattened seals allow seepage

• Disconnect power and water supply before attempting any service.
• Inspect surrounding door edges for damage and clean mounting surfaces before installing the new gasket.
• Press the gasket firmly into the door channel; some models require partial door disassembly.
• After installation, run a short cycle and check for leaks before returning the dishwasher to regular use.

A replacement electrical switch that restores on/off control to the appliance circuit. Installs in place of a failed factory switch to return reliable power signaling for the affected function. What it does:

• Interrupts or completes the electrical circuit to control a specific appliance function.
• Replaces a failed or intermittent switch that can cause the appliance or a specific feature to not power on.
• Common symptom fixes: appliance not starting, intermittent operation, or unresponsive buttons/controls.
• Matches the original switch form and terminals for direct replacement when the part number is correct.

• Disconnect power (unplug or breaker off) before beginning any work.
• Photograph or label wiring before removal to ensure correct reconnection of terminals.
• Make secure, insulated connections; avoid exposed wiring.
• Test the appliance function after reinstalling power.

A replacement electrical switch that restores on/off control to the appliance circuit. Installs in place of a failed factory switch to return reliable power signaling for the affected function. What it does:

• Interrupts or completes the electrical circuit to control a specific appliance function.
• Replaces a failed or intermittent switch that can cause the appliance or a specific feature to not power on.
• Common symptom fixes: appliance not starting, intermittent operation, or unresponsive buttons/controls.
• Matches the original switch form and terminals for direct replacement when the part number is correct.

• Disconnect power (unplug or breaker off) before beginning any work.
• Photograph or label wiring before removal to ensure correct reconnection of terminals.
• Make secure, insulated connections; avoid exposed wiring.
• Test the appliance function after reinstalling power.

This valve is a water-flow control assembly that opens and closes to direct water where the appliance needs it. Replacing a worn valve restores proper water delivery and helps stop intermittent filling or leaks. What it does:

• Opens and closes to control water flow into the appliance
• Enables timed or sequence-based filling during cycles
• A faulty valve can cause no-fill, overfill, or continuous filling symptoms
• Prevents unintended water flow when functioning correctly

• One valve assembly

• Disconnect power and shut off the water supply before starting
• Handle electrical connections and seals carefully; replace any damaged gaskets
• Test for leaks and correct operation before returning the appliance to service

This is a replacement screw used to secure appliance components and panels. It restores proper fastening where the original screw is missing, stripped, or damaged to help keep parts aligned and stable. What it does:

• Fastens panels, brackets, or components to maintain proper alignment and operation
• Replaces a lost, stripped, or damaged screw to prevent rattling or loose parts
• Provides the same basic fastening function as the original hardware
• Suitable where the appliance requires a small machine/tapping screw of the correct size and thread

• One replacement screw

• Use the correct screwdriver or bit to avoid stripping the head
• Start threading by hand to ensure proper engagement before tightening
• Tighten snugly but avoid over-torquing which can strip threads or damage parts
• Disconnect power to the appliance before working on or removing panels where appropriate;

This clamp secures flexible hoses and small tubes to fittings, keeping connections tight to help prevent leaks and movement. It's a small replacement clip used on water and drain lines in many appliances. What it does

• Holds a hose or tube firmly to a barb or nipple to maintain a sealed connection
• Helps stop leaks caused by loose or damaged hose connections
• Prevents hoses from slipping off during operation and reduces vibration noise
• Used wherever a small retaining clamp is required on water or drain lines

• One clamp

• Turn off power and shut off water supply before replacing the clamp
• Slide clamp over the hose, push hose fully onto the fitting, then compress or tighten clamp as required
• Use pliers or the correct tool for the clamp type; avoid damaging the hose when installing
• Replace if corroded, cracked, or not seating properly
