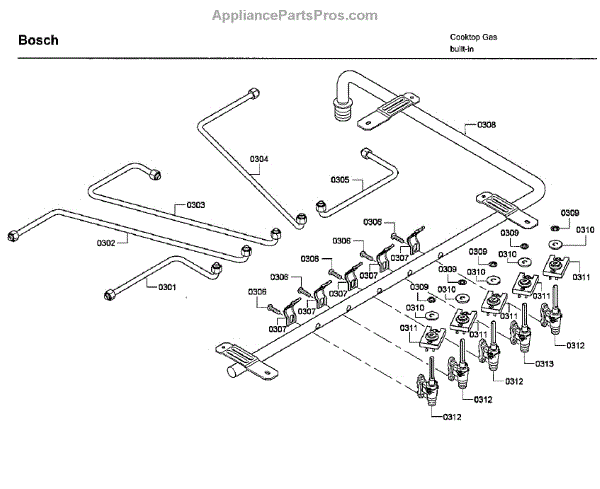

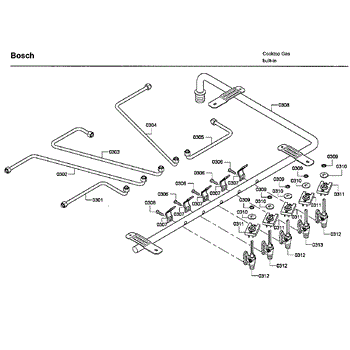

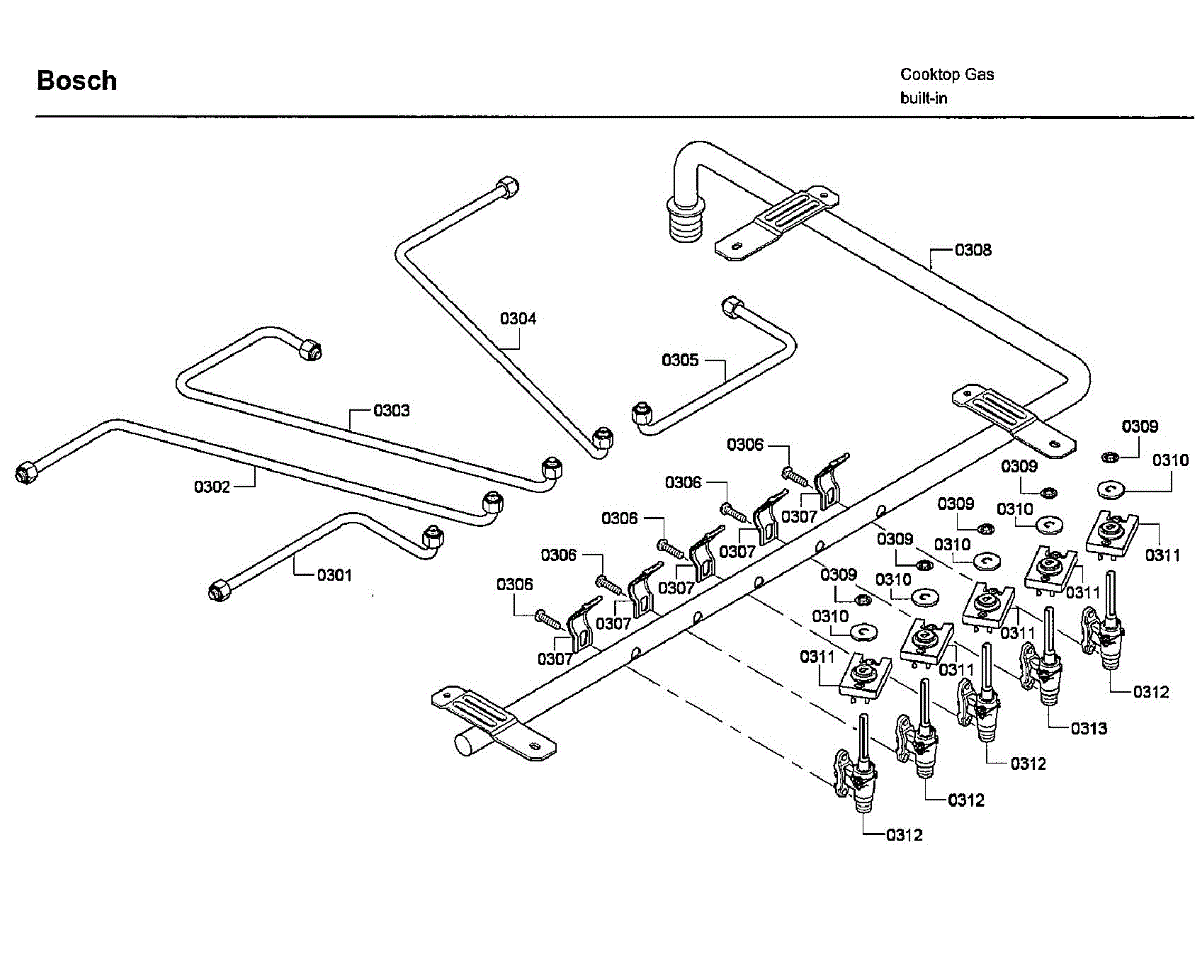

Parts for Bosch NGM8654UC/03: Manifold Parts

Fix uneven flames or gas leaks with this cooktop gas burner tube. Restores proper flame control and heating power. Direct fit for multiple models.

Replacement mounting screw for cooktops and ranges. Secures panels, brackets, and components. Needed when original screw is missing, stripped, or damaged.

Secures flexible hoses to fittings on your range to prevent leaks. Replace if connections are loose or clamp is damaged. Verify fit with your model.

Fix burners that won't light or have weak flames with this cooktop gas manifold. Controls gas flow to all burners. Moderate DIY repair, 1-2 hours.

This retaining washer secures a control shaft or hub to keep components in place during operation, helping restore proper control movement and prevent parts from sliding off the shaft. Simple replacement when a worn or missing retainer causes loose knobs or shifting parts. What it does:

• Fits onto a control or drive shaft to hold a knob, hub or gear in position
• Prevents axial movement that can cause loose or slipping controls
• Commonly replaced when the original washer is bent, cracked, or lost
• Works with compatible Bosch control assemblies and hubs

• One retaining washer

• Recommended for users comfortable with basic appliance disassembly; unplug appliance before starting
• Remove the control knob or panel per model instructions to access the shaft
• Press the washer into place on the shaft until fully seated; verify proper fit and control operation

This replacement door gasket seals the dishwasher door to keep water inside the tub and help maintain wash performance. It restores a tight door seal to reduce leaks and prevent water from pooling around the appliance. What it does:

• Creates a watertight seal between the door and tub to stop leaks during cycles
• Helps prevent water from dripping onto floors and surrounding cabinetry
• Reduces steam and moisture escape that can cause odors or damage
• Restores proper door closure where worn or flattened seals allow seepage

• Disconnect power and water supply before attempting any service.
• Inspect surrounding door edges for damage and clean mounting surfaces before installing the new gasket.
• Press the gasket firmly into the door channel; some models require partial door disassembly.
• After installation, run a short cycle and check for leaks before returning the dishwasher to regular use.

A replacement electrical switch that restores on/off control to the appliance circuit. Installs in place of a failed factory switch to return reliable power signaling for the affected function. What it does:

• Interrupts or completes the electrical circuit to control a specific appliance function.
• Replaces a failed or intermittent switch that can cause the appliance or a specific feature to not power on.
• Common symptom fixes: appliance not starting, intermittent operation, or unresponsive buttons/controls.
• Matches the original switch form and terminals for direct replacement when the part number is correct.

• Disconnect power (unplug or breaker off) before beginning any work.
• Photograph or label wiring before removal to ensure correct reconnection of terminals.
• Make secure, insulated connections; avoid exposed wiring.
• Test the appliance function after reinstalling power.

A replacement electrical switch that restores on/off control to the appliance circuit. Installs in place of a failed factory switch to return reliable power signaling for the affected function. What it does:

• Interrupts or completes the electrical circuit to control a specific appliance function.
• Replaces a failed or intermittent switch that can cause the appliance or a specific feature to not power on.
• Common symptom fixes: appliance not starting, intermittent operation, or unresponsive buttons/controls.
• Matches the original switch form and terminals for direct replacement when the part number is correct.

• Disconnect power (unplug or breaker off) before beginning any work.
• Photograph or label wiring before removal to ensure correct reconnection of terminals.
• Make secure, insulated connections; avoid exposed wiring.
• Test the appliance function after reinstalling power.

This is a gas flow control valve that regulates the supply of gas to an individual surface burner on a cooktop. It connects to the burner control knob and adjusts the flame from high to low. Replace this valve if a burner won't ignite, the flame is uneven or won't adjust properly, or if you detect a gas leak around the valve area.

If your gas cooktop burner won't ignite, won't adjust flame, or has uneven heat, you may need a new valve. This part controls gas flow to the burners.
