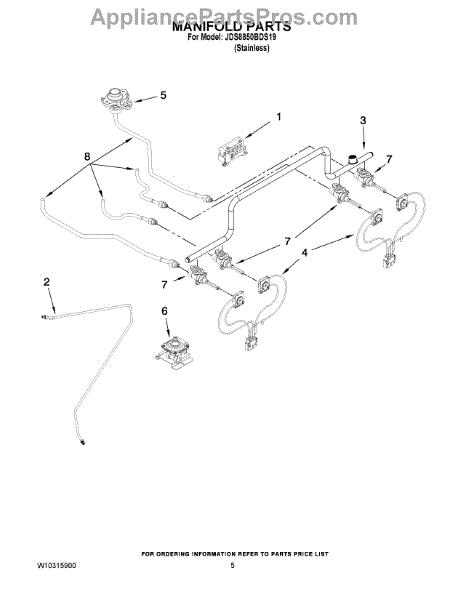

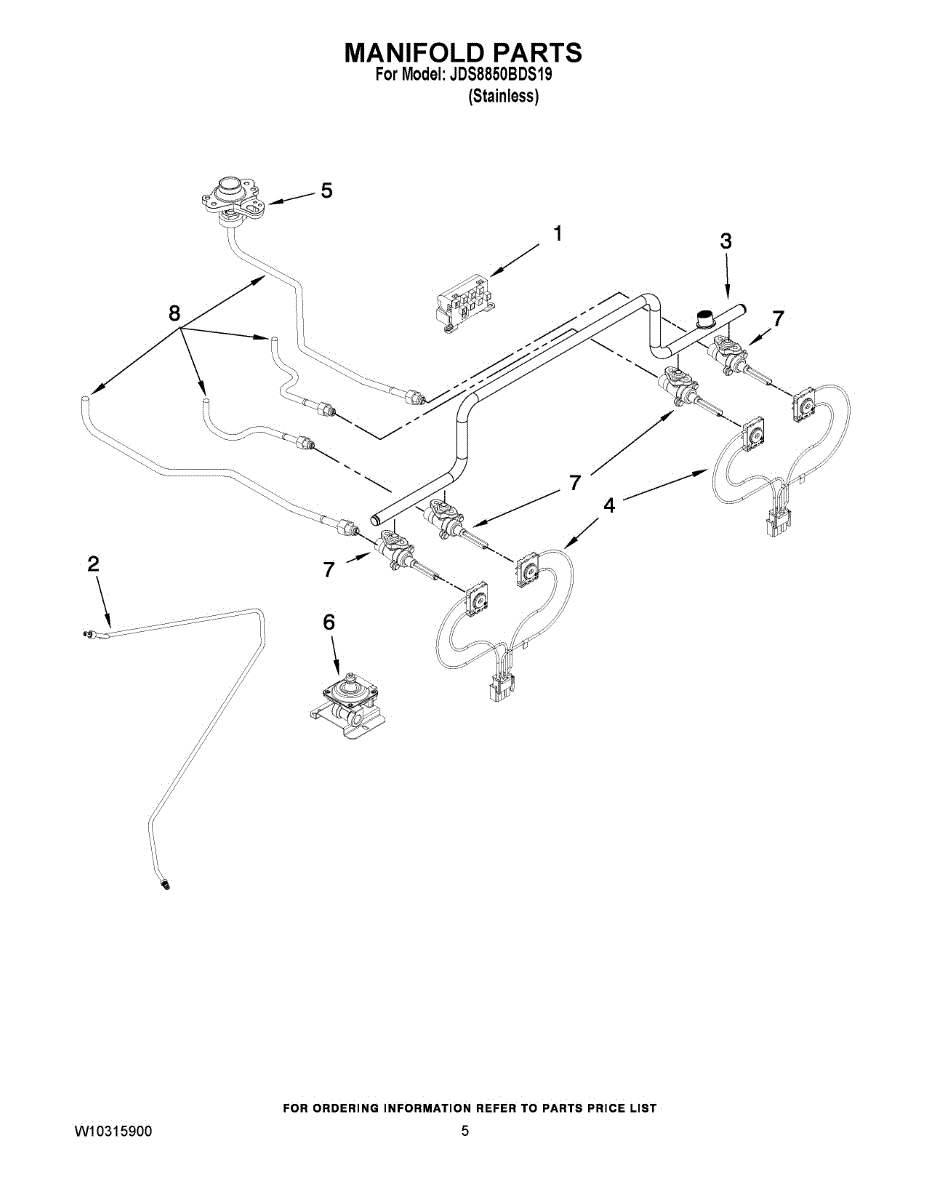

Parts for Maytag JDS8850BDS19: 03 - Manifold Parts

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

This dual orifice holder secures two burner orifices in gas ranges, keeping the burner orifices aligned for proper gas flow and stable flames. It helps restore consistent ignition and even heat across affected burners. What it does:

• Holds and positions two burner orifices in the manifold or burner assembly
• Keeps orifices aligned to ensure proper gas flow to each burner
• Can resolve symptoms like weak, uneven, or inconsistent burner flames and ignition problems
• Works as a replacement for damaged, corroded, or bent orifice mounting hardware

• One dual orifice holder

• Turn off gas supply and electrical power before servicing; follow local codes
• Remove burner caps and access the orifice area per your model's service instructions
• Retain correct orientation when installing; avoid bending or stressing the orifice

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This gas surface-burner orifice holder serves the 15K burner position on many cooktops/ranges. It routes gas from the valve to the burner orifice and keeps the burner properly aligned for consistent ignition and flame.

• Channels gas from the surface valve to the orifice for the 15K burner
• Rigidly locates the burner base and orifice for correct flame pattern and ignition
• Common symptoms of a failed holder include: burner clicking but not lighting, weak/small or uneven flame, or intermittent ignition on that burner
• Replacement restores proper alignment and gas flow at the affected burner

• Shut off gas supply and disconnect power; allow the appliance to cool
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Note orientation, disconnect tubing, remove mounting screws, and install the new holder in the same position; transfer any fittings as needed
• After reassembly, perform a soap-and-water leak check at all serviced connections before use
