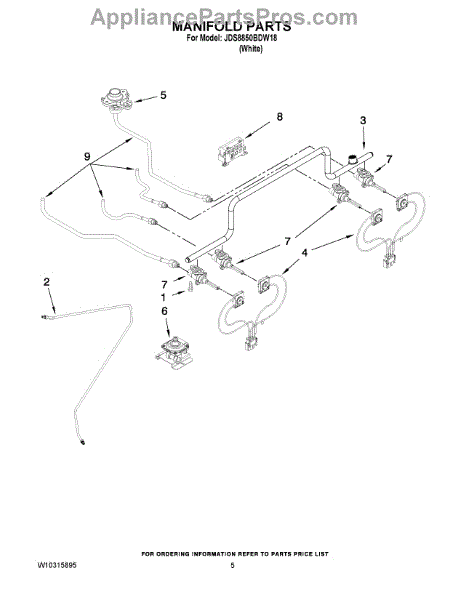

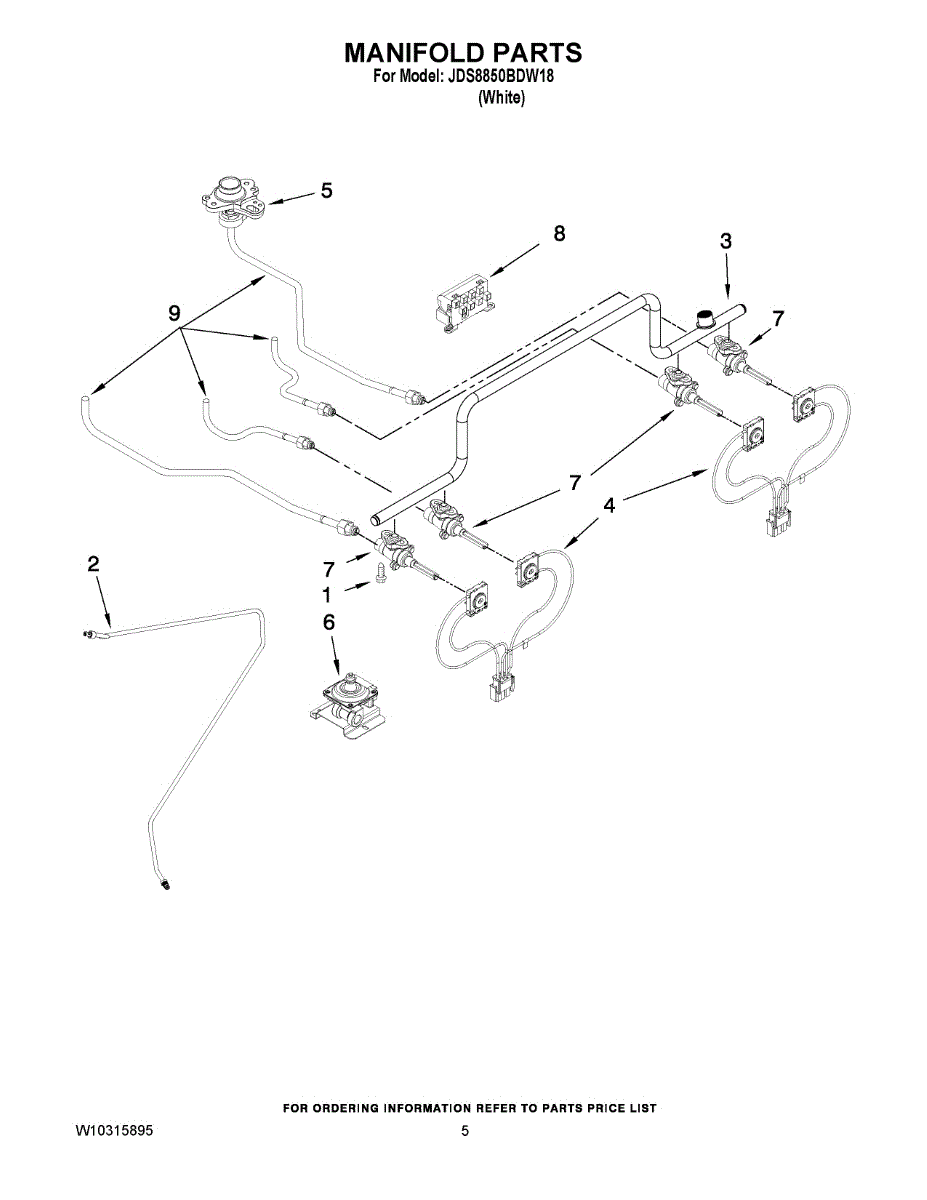

Parts for Maytag JDS8850BDW18: 03 - Manifold Parts

This component holds and positions the gas orifice that controls fuel flow to your range's surface burner. Located beneath the cooktop where the burner connects to the gas line, it ensures proper gas delivery. Replace if the burner flame is uneven, too large, too small, or won't ignite properly.

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

Fix weak flames or uneven heating on your 15K burner with this gas orifice holder. Routes gas from valve to burner orifice for proper ignition and consistent flame.

Fix continuous sparking or burners that won't ignite with this spark module. Controls ignition for four surface burners with automatic reignition capability.
