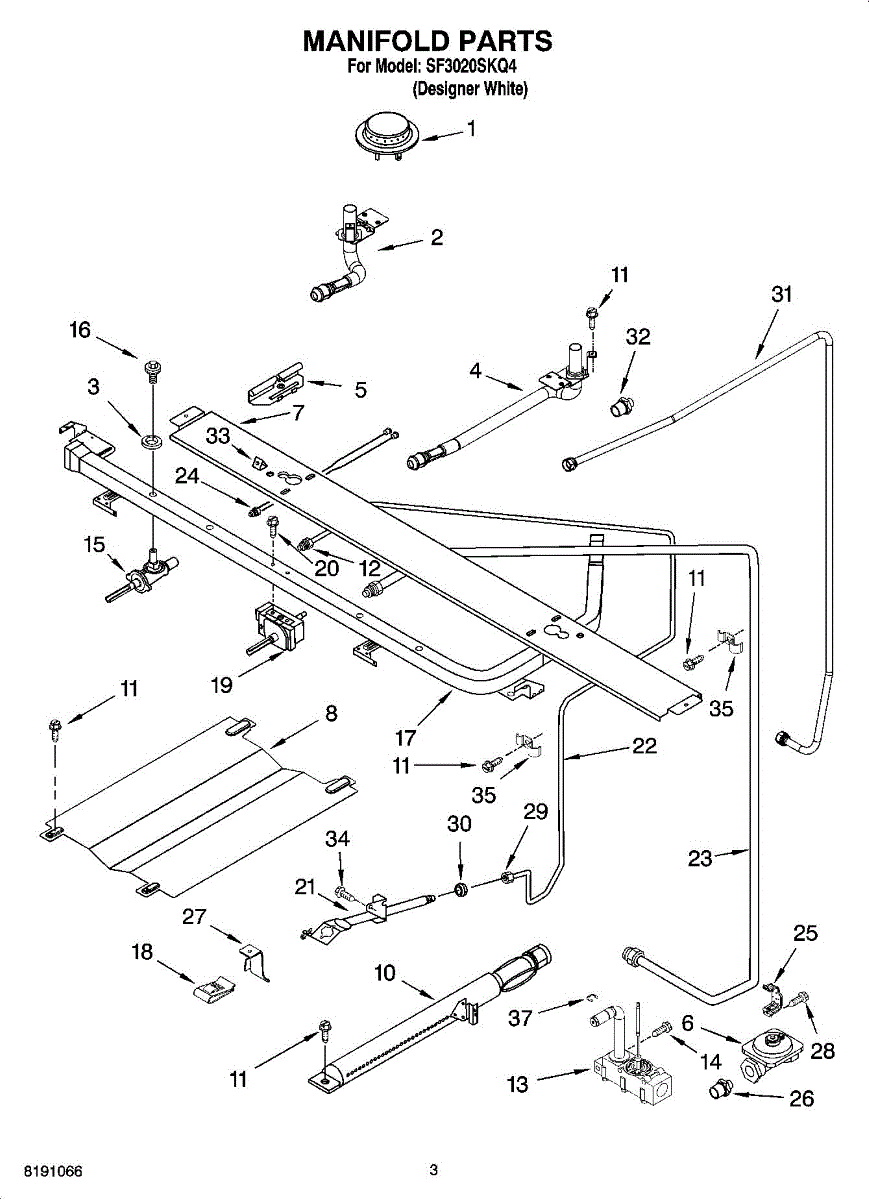

Parts for Whirlpool SF3020SKQ4: 03 - Manifold Parts

This oven burner baffle is a metal heat shield that directs heat and protects the oven floor and internal components for reliable cooking performance. It helps maintain even heating and keeps burner flames contained away from oven panels. What it does:

• Shields oven bottom and internal components from direct flame and high heat
• Helps stabilize burner flames for more consistent cooking and baking
• Prevents heat-related damage to oven floor and nearby parts
• Reduces hotspots that can cause uneven baking or browning

• One oven burner baffle

• Disconnect power and shut off gas supply before servicing;
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Ensure the baffle is seated and secured per the oven's parts diagram to avoid rattling or interference with the burner

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This is an inverted flare nut with 3/8-24 UNF threading used on gas tubing connections in a range or oven. It creates a secure, leak-free seal where gas supply lines connect to the appliance. Replace this nut if it is stripped, cracked, or damaged, which can result in gas leaks or loose tubing fittings.

Replacement mounting screw for dishwashers and ranges. Secures panels, brackets, and internal components when original hardware is stripped, missing, or corroded.

Replacement U-nut for electric and gas ranges. Secures components and panels in place. Order a new nut if yours is stripped, missing, or damaged.

Thermostat to oven pilot tubing carries gas from the thermostat to the pilot light. Replace if damaged, cracked, or leaking gas. Confirm fit with your model.

Mounting bracket for gas ranges. Secures components in place. Replace if bracket is bent, cracked, broken, or missing to ensure proper installation.

Gas supply tube fitting for range connection. Replaces worn, damaged, or missing fittings. Essential for secure gas line installation and connections.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, or broken to restore proper structural support.

Replace your range's 3/16-inch burner sleeve if cracked, worn, or missing. This protective sleeve installs around the burner assembly on compatible models.

This LP conversion kit includes orifice spuds sized for converting a natural gas range to operate on liquid propane. The orifice spuds control the gas flow rate to each burner, ensuring proper flame size and safe combustion with LP fuel. This kit is needed when relocating a range to a home or area that uses propane instead of natural gas.

This LP conversion kit includes orifice spuds sized for converting a natural gas range to operate on liquid propane. The orifice spuds control the gas flow rate to each burner, ensuring proper flame size and safe combustion with LP fuel. This kit is needed when relocating a range to a home or area that uses propane instead of natural gas.
