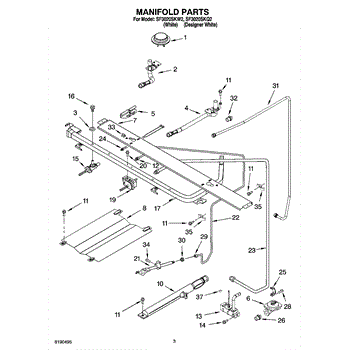

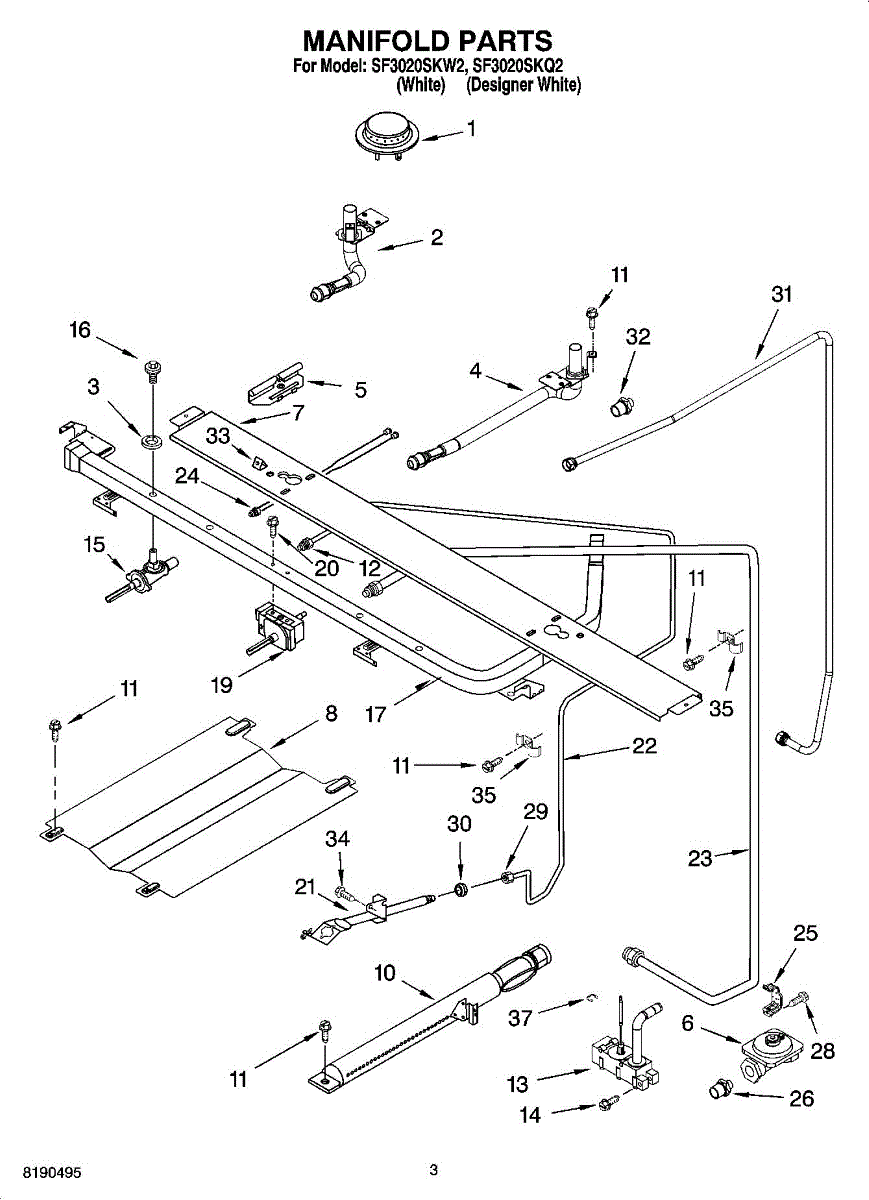

Parts for Whirlpool SF3020SKW2: 03 - Manifold Parts

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This fitting tube connects a section of appliance tubing to the service plumbing to restore a sealed fluid path and prevent leaks. It's a direct-replacement plumbing fitting used where small-diameter tubing joins a fixed port. What it does

• Forms a secure connection between tubing and a plumbing port to maintain water/condensate flow
• Stops symptoms like visible leaks, pooling water, or reduced fill/drain performance when the original fitting is damaged
• Provides the proper interface for OEM tubing size and routing in the appliance
• Helps restore normal operation without altering factory plumbing

• One fitting tube

• Disconnect power and shut off water supply before servicing
• Drain remaining water from lines to reduce mess and pressure before removing old fitting
• Hand-start fittings then tighten to OEM torque; avoid over-tightening which can crack ports or tubing
• Inspect connections for leaks after restoring water and power; re-tighten if needed

This replacement screw secures appliance panels, brackets, and internal components. Install it when original hardware is missing, stripped, or corroded to restore a solid, factory hold and help stop vibration, rattles, and misalignment.

• Provides secure attachment for covers, brackets, and assemblies
• Replaces missing, damaged, or rusted hardware
• Helps resolve loose panels, buzzing/rattling noises, or shifting parts
• Supports proper alignment and reliable operation when tightened correctly

• Disconnect power; shut off gas/water if applicable before service
• Match thread and length to the original; replace in the same location
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• If washers, spacers, or threadlocker were present originally, transfer or replace them

3/8 to 9/16

This orifice spud directs gas flow to a range or oven burner for proper ignition and stable flames. Replacing a worn or damaged spud restores consistent burner performance and helps prevent uneven heating or ignition problems. What it does:

• Seats the burner orifice and channels gas to the burner for correct flame shape and heat output
• Helps maintain steady ignition and consistent burner operation
• Commonly replaced when flames are weak, uneven, or fail to light reliably
• Fits into the burner assembly to ensure safe, controlled gas flow

• Turn off the gas supply and unplug the appliance before servicing
• Remove burner parts to access the orifice; keep track of small parts and orientations
• Thread by hand first, then snug with the correct-size wrench—do not overtighten
