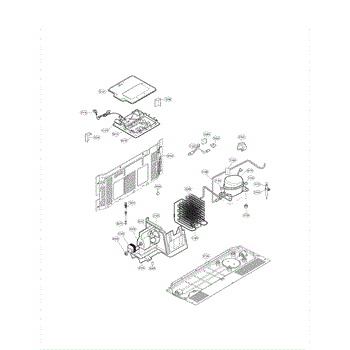

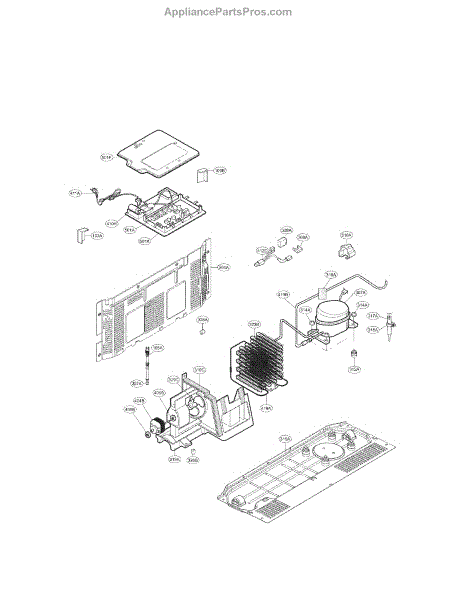

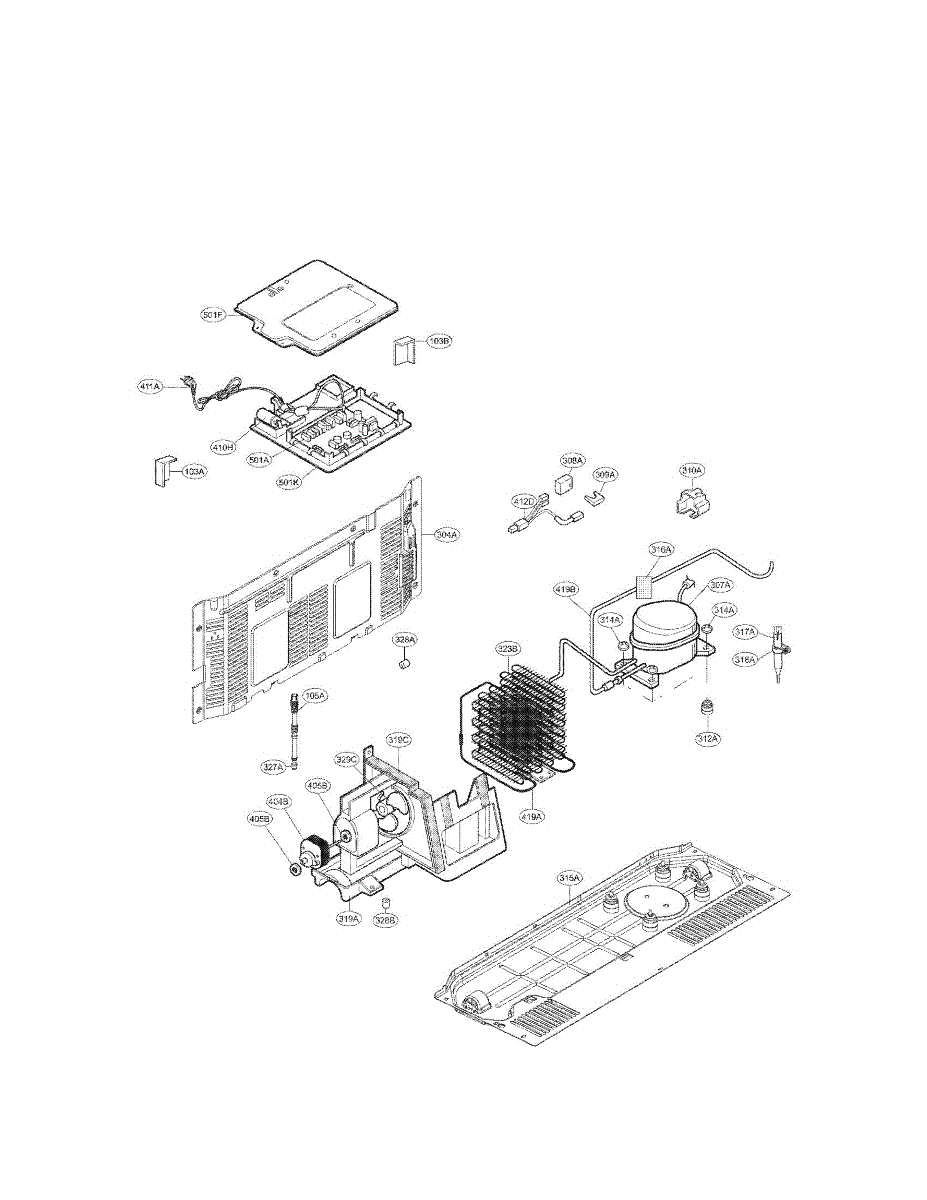

Parts for Lg LSC23924SB: Mechanical Compartment Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

The Lever Dispenser is an OEM part for LG refrigerators. It is the control mechanism responsible for dispensing crushed ice and water through the refrigerator door without opening it. The lever and dispensing components are designed to withstand frequent use while retaining smooth, reliable operation.

Causes of a bad lever dispenser can include worn parts inhibiting proper dispensing movement, cracks or damage reducing structural integrity, or mineral buildup affecting functionality over time.

Symptoms of a bad lever dispenser include:

• Difficulty or inability to dispense ice and water
• Leaks or drips around the dispenser area
• Loose, rattling, or unresponsive lever action
• The dispenser not activating or emptying the reservoir

This OEM LG part is also compatible with dispenser models featured on Kenmore side-by-side refrigerators.

This relay cover is a protective housing that shields a washer or dryer relay assembly from dust, moisture, and accidental contact, helping maintain safe and reliable operation of the appliance's control components. What it does:

• Protects the relay and nearby wiring from debris and moisture that can cause shorts or corrosion
• Helps prevent accidental contact with relay terminals during maintenance
• Reduces risk of electrical arcing or damage when relays switch under load
• Can improve long-term reliability of the control assembly when installed and intact

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove access panels as needed to reach the relay area; basic hand tools typically required
• Handle control board and components carefully to avoid damage from electrostatic discharge
• Replace only with the specified cover; do not modify or force-fit

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This fan guide directs airflow from the evaporator/blower fan to the cabinet vents to help maintain even cooling and efficient air circulation. Replacing a damaged guide restores proper airflow and helps the cooling system perform as designed. What it does:

• Channels fan airflow to the vent path so cool air reaches refrigerator/freezer compartments
• Prevents air from recirculating inefficiently around the fan housing
• Helps reduce uneven temperatures and cold spots in the cabinet
• Can reduce frost buildup caused by disrupted airflow

• Disconnect power before servicing; follow appliance-specific disassembly steps
• Typically accessed by removing the rear evaporator or fan housing panel — use hand tools and avoid prying plastic parts aggressively
• Inspect mounting tabs and surrounding seals; replace if cracked or broken

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

This motor start/run capacitor helps the appliance motor or compressor start and run more reliably, restoring proper motor performance and reducing symptoms caused by a weak or failed capacitor. What it does:

• Provides the momentary electrical boost motors or compressors need to start
• Helps maintain stable motor operation during run cycles
• Resolves symptoms like motors that hum but won't start, intermittent starting issues, or cycling problems
• Replaces a worn or failed capacitor to restore consistent performance

• One replacement capacitor as shown

• Disconnect power before servicing and verify the appliance is de-energized
• Capacitors can hold charge — discharge safely before touching terminals
• Match terminal type and mounting location to the original part; do not force connections
