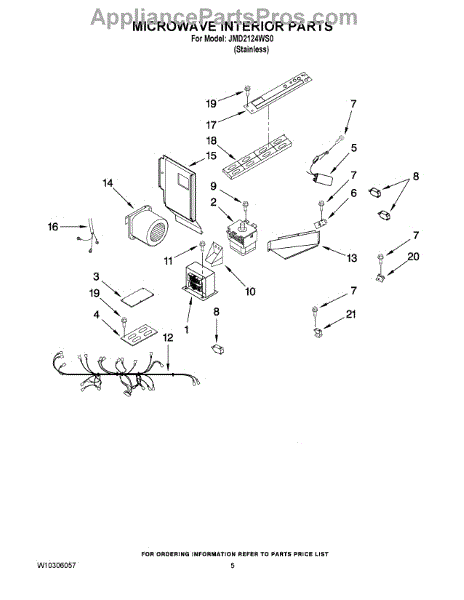

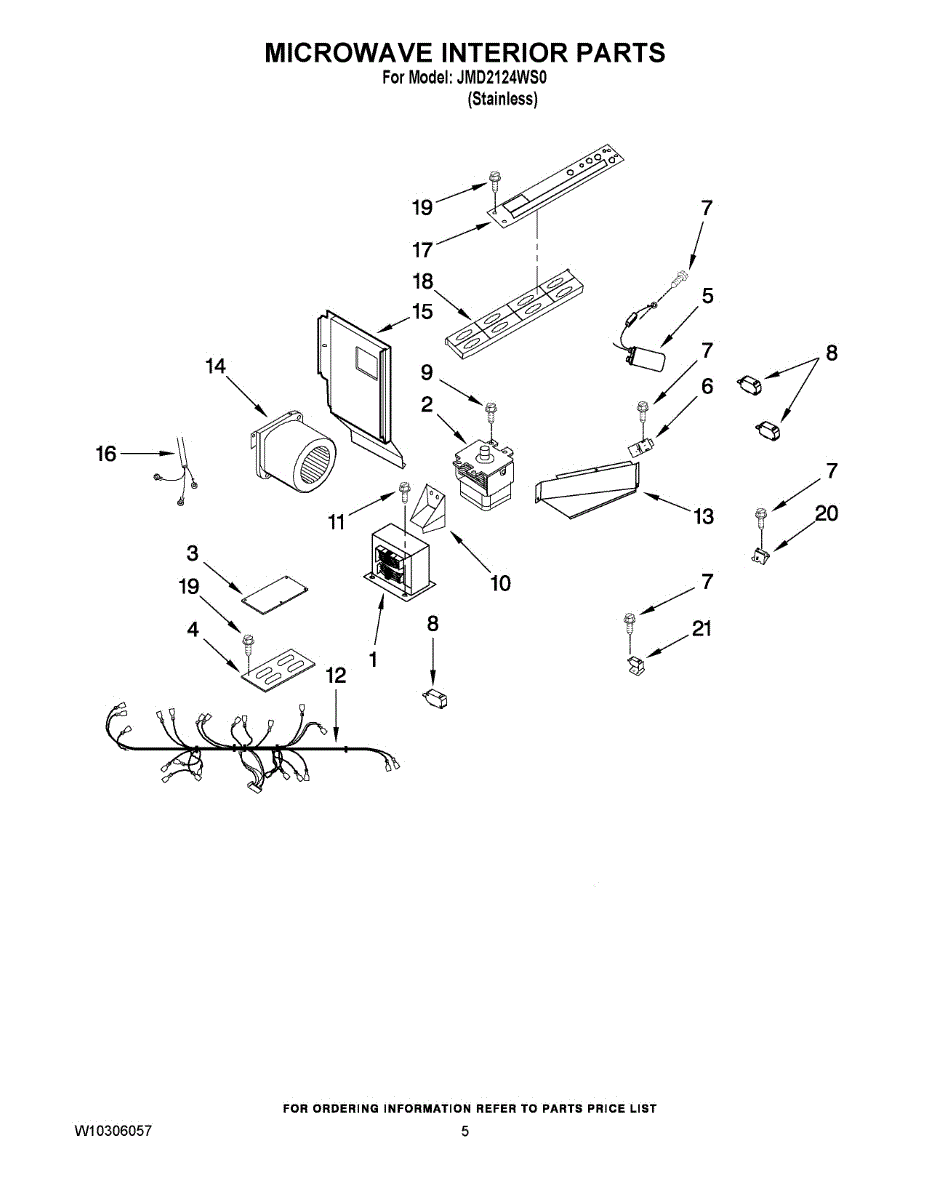

Parts for Maytag JMD2124WS0: 05 - Microwave Interior Parts

Fix a microwave that won't heat with this high voltage transformer. Restores power to the magnetron for proper cooking. Moderate DIY repair with safety precautions.

Microwave not heating or taking too long to cook? This magnetron generates the microwave energy needed for proper heating. Moderate DIY repair.

This electronic control board manages and sequences the appliance's functions, user controls and display so cycles run correctly and settings respond. It restores electronic control when the original board is failed or unresponsive. What it does

• Receives input from the control panel and directs power to the appropriate components to start and run cycles.
• Controls timers, cycle selection, and electronic displays so programmed operations complete as expected.
• Common symptom linkage: unresponsive buttons or display, cycles won't start or complete, or intermittent operation tied to control faults.
• Replaces a failed control board to restore reliable electronic control and consistent cycle performance.

• One electronic control board.

• Disconnect power (unplug or shut off breaker) before any service to avoid shock hazard.
• Handle the board by the edges and avoid touching contacts; observe basic static-discharge precautions.
• Installation typically requires removing the control panel or console and disconnecting wiring harnesses—keep track of connector locations.

This is a high-voltage capacitor used in the microwave's magnetron circuit to store and release electrical energy needed to power the magnetron tube. It works alongside the diode and transformer to convert standard household voltage into the high voltage required for microwave cooking. Replace this capacitor if the microwave runs but does not heat food, or if you hear a loud buzzing or humming sound during operation.

Fastener screw

Microwave not starting or turning off unexpectedly? This switch controls power and safety functions. Common repair for unresponsive microwaves.
