Parts for Ge JE1025E01: 01 - Section1 Parts

01 - Section1
Free Standing Microwave

Parts for Ge JE1025E01: 01 - Section1 Parts

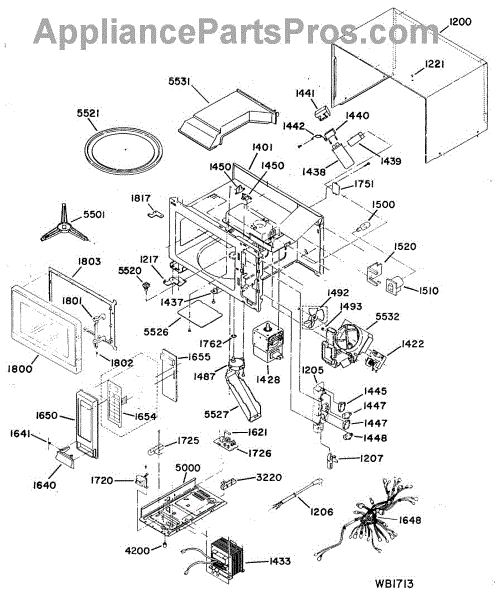

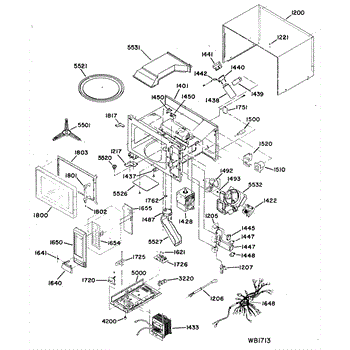

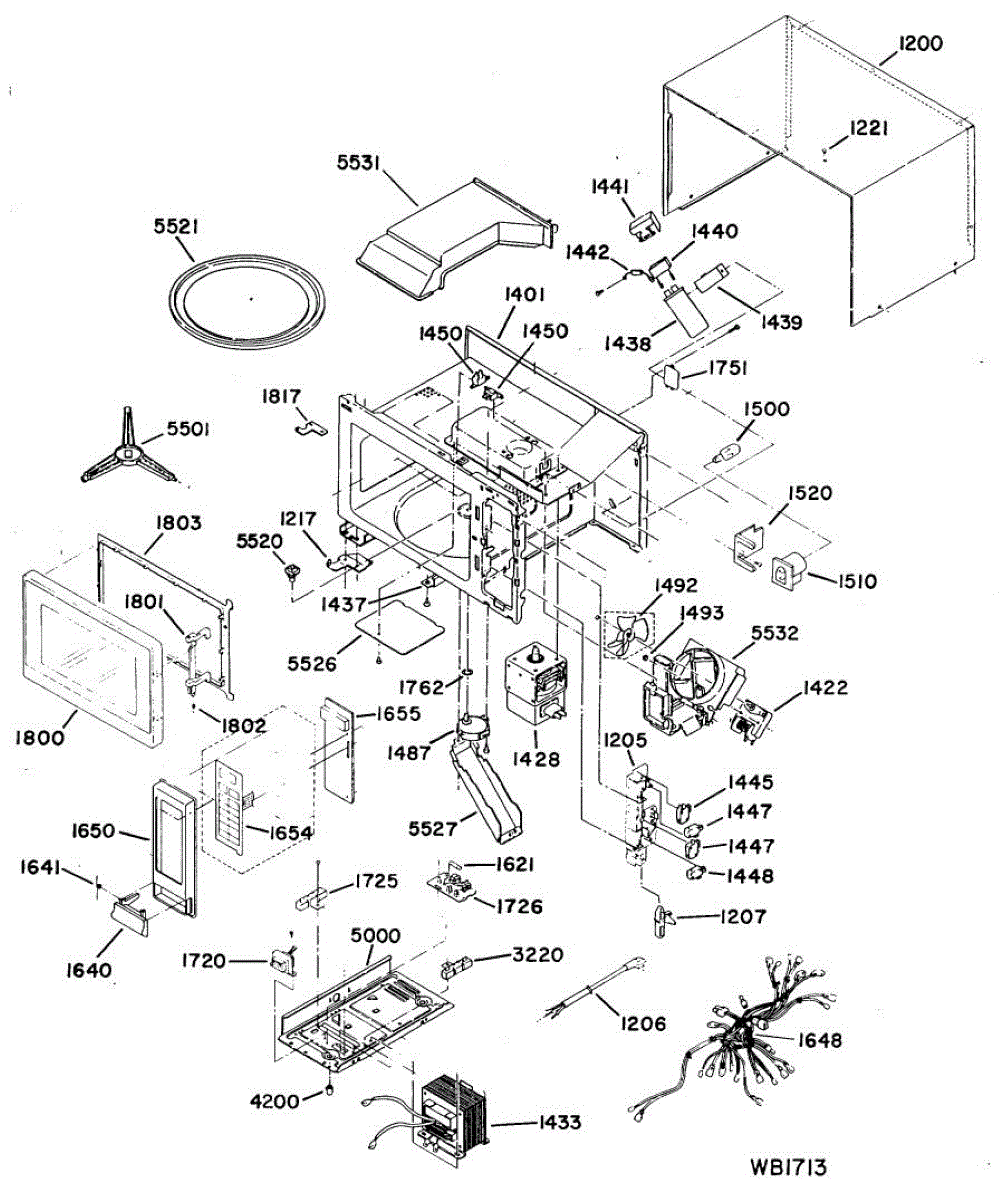

Location on Diagram
Part Description
Price & Availability
1200

Outer Case

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1401

Cavity & Frame Asm

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1428

Magnetron

By: Ge

More
$93.95
Compare At:
$104.26
You Save:
$10.31

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1440

Short Protector

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1442
Product photo

High-Voltage Diode (Microwave)

5.0 (4)
By: Ge

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

  • Rectifies high-voltage AC to DC to power the magnetron
  • Blocks reverse voltage in the HV circuit
  • Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup
What's included:
  • 1 high-voltage diode
Install notes:
  • Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
  • Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
  • Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
  • If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

More
$88.95
Compare At:
$106.74
You Save:
$17.79

IN STOCK
Ships Today Guaranteed
Add to Cart
1447

Switch - Secondary

By: Ge

More
$18.77
Compare At:
$20.85
You Save:
$2.08

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1448

Stop Switch

By: Ge

More
$20.53
Compare At:
$30.36
You Save:
$9.83

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1510

Receptacle - Oven Lamp

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1641

Spring - Open Button

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1648

Main Harness

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1726

Noise Filter Assembly

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1751

Oven Lamp Access Cover

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1800
Product photo

Door Panel

By: Ge

More
$134.72
Compare At:
$149.17
You Save:
$14.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1802

Latch Spring

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3220

Monitor Resistor

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5000

Unit Chassis

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5501

Turntable Roller Ass'm

By: Ge

More
$38.95
Compare At:
$50.18
You Save:
$11.23

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5520

Turntable Coupling

By: Ge

More
$20.73
Compare At:
$24.23
You Save:
$3.50

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5527

Cover - Tuurntable Motor

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
