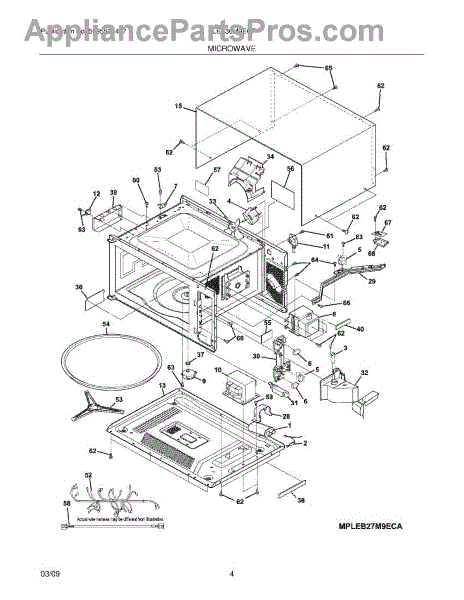

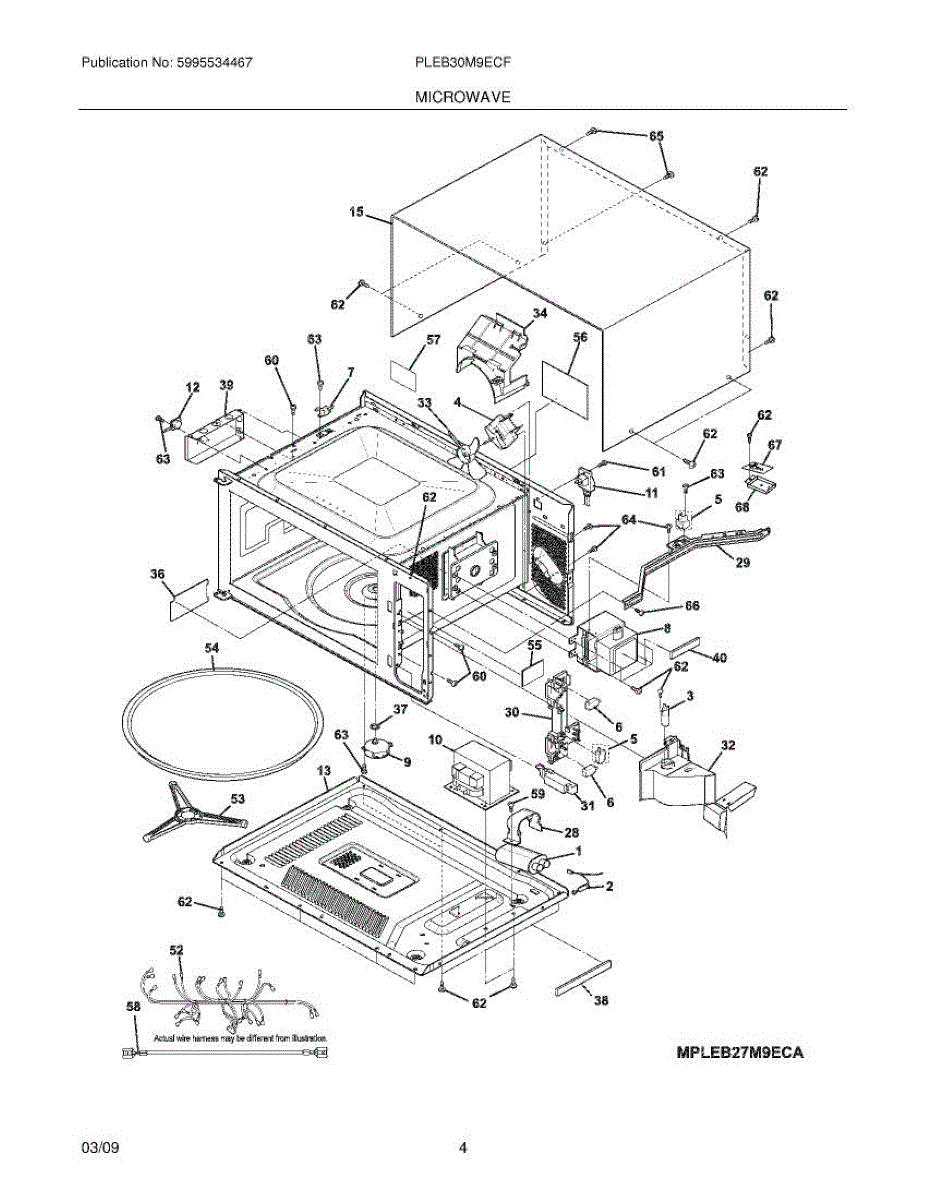

Parts for Frigidaire PLEB30M9ECF: 05 - Microwave Parts

This motor capacitor helps start and run appliance electric motors by providing the brief boost of power the motor needs to reach operating speed. Replaces a failed capacitor to restore normal motor starting and performance. What it does:

• Provides the electrical phase shift and momentary voltage boost motors need to start and run
• Commonly replaced when a motor hums, will not start, or runs weakly
• Helps stabilize motor operation and reduce hard starting stresses
• Resolves intermittent or failed motor startup symptoms when capacitor is the root cause

• Disconnect power to the appliance before accessing or replacing the capacitor
• Discharge stored voltage in the capacitor before handling to avoid shock
• Verify terminal connections and orientation match the original before installation

This rectifier converts incoming AC power to DC for the appliance's control circuits, restoring correct electrical supply to electronic components so controls and powered features can operate properly. What it does:

• Converts alternating current (AC) from the mains to direct current (DC) used by control boards and electronics.
• Restores power to electronic controls, displays, and powered dispensers when the rectifier has failed.
• Common symptom: control panel, dispenser, or ice maker loses power or becomes unresponsive.
• Needed when intermittent electrical problems occur that trace to the power-conversion stage.

• One rectifier (single part as sold)

• Disconnect power to the appliance before attempting any service to avoid shock hazard.
• Handle the rectifier and control boards carefully; avoid static discharge and physical damage.
• Verify fault with a multimeter and wiring diagrams or service manual before replacement.

Replace a failed light socket with this lamp assembly to restore reliable illumination inside your appliance. If your bulb is good but the light won't work or flickers, the socket assembly is a likely culprit.

• Holds the bulb and supplies power to illuminate the interior or work area
• Replaces cracked, heat-damaged, or loose sockets and terminals
• Helps resolve no light, intermittent flicker, or arcing at the socket
• Designed to fit the original mounting and wiring on compatible models

• Disconnect power before servicing to avoid electrical shock
• Allow the lamp and surrounding area to cool before handling
• Move wires to the new assembly one at a time to maintain correct connections
• Use the bulb type and wattage specified for your model; do not overtighten the bulb

This drive motor restores rotational power to the appliance's drum or agitator so loads spin and drain correctly. It's a direct-replacement motor designed to restore normal wash and spin cycles when the original motor fails. What it does:

• Provides the mechanical drive force for the washer drum/agitator so clothes tumble and spin
• Re-establishes proper agitation and spin speed control when a worn or failed motor causes no-spin or no-agitate symptoms
• Operates with the appliance's existing pulley, belt, or coupling
• Works as the core rotating component tied to load movement and draining functions

• One motor

• Disconnect power and water before beginning any repair; follow the appliance service manual for safe access
• Replacement typically requires removing cabinet panels, drive belt or coupling, and electrical connector—avoid forcing parts
• Inspect associated belts, couplings, and mounting hardware; replace worn items to prevent repeated failures

This switch/fuse kit replaces a worn or failed control switch and associated fuse to restore reliable power control. It provides the exact components needed to address common start and power interruptions. What it does:

• Replaces a faulty control switch to restore on/off or cycle control
• Replaces the protective fuse to stop power loss from a blown fuse
• Helps resolve no-start, intermittent power, or control failures
• Restores proper electrical continuity for safe operation

• Disconnect power to the appliance before starting any work
• Handle electrical components carefully and avoid metal contact with terminals
• Verify correct part orientation and secure all connections per OEM guidance

The Door Switch is an OEM replacement part for Frigidaire wall ovens. It is a component located on the oven door that detects when the door is opened and closed. The door switch works alongside the control board to regulate oven operations based on door position.

Symptoms of a bad door switch can include:

• Oven failing to automatically go into bake or warm modes after door closure
• Interior lights not turning on when the door is opened
• Control buttons/display remaining constantly lit instead of dimming
• Oven not heating or functioning properly in different modes

Causes relate to normal wear over extended use as the door switch mechanism cycles with frequent door openings and closings. Moisture exposure or impacts could also degrade switch performance.

This OEM Frigidaire switch is compatible with Amana, Jenn-Air, KitchenAid, and some Electrolux wall oven models as well.

This thermal fuse stops excessive heat by opening the circuit when temperatures get too high, protecting the appliance and its components. Replace a blown fuse to restore normal heating or safety shutdown functions. What it does:

• Acts as an over-temperature safety device to interrupt power when internal temps exceed safe limits
• Commonly linked to symptoms such as no heat, intermittent heating, or an appliance that won't start
• Prevents further damage by cutting power when a serious overheating condition occurs
• Functions as a single-use safety cutout—if it's open, it must be replaced

• One thermal fuse

• Disconnect power before testing or replacing; verify no voltage present
• Test continuity with a multimeter to confirm the fuse is open before replacing
• Replace with the same part number and rating; do not bypass or substitute with wire
• If the fuse failed, inspect the appliance for underlying issues before returning to service

The Magnatron is an OEM part for Frigidaire microwaves. It is the principal electronic component responsible for converting electrical energy into microwave radiation, allowing for fast and efficient cooking or heating of food.

Causes can be related to normal component fatigue over extended use. High voltage magnetron coils are also susceptible to power fluctuations or surges over time.

Symptoms of a faulty magnatron include:

• Inability of the microwave to transmit energy and heat foods
• Slow or ineffective cooking times
• Oven light working but no microwave output
• Overheating, arcing or burning smells from the unit

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement motor restores the rotation your appliance relies on to move air or drive a mechanism, bringing normal operation and performance back when the original motor has failed or become noisy. What it does:

• Converts electrical power into controlled shaft rotation to drive the associated component
• A failing motor may cause no movement, intermittent operation, or unusual humming/grinding noises
• Can contribute to reduced performance if the driven part doesn't run as intended
• May present with overheating smell or visible signs of wear on the old unit

• One motor

• Disconnect the appliance from power before servicing
• Note wire locations and connector orientation; transfer any brackets, grommets, or hardware from the old motor
• Handle sheet-metal edges carefully; wear cut-resistant gloves
• After installation, confirm the shaft spins freely by hand before restoring power and testing

This replacement power cord restores mains power to compatible Frigidaire appliances, providing a safe, factory-style connection for reliable operation. Use it when the original cord is damaged or not supplying power. What it does:

• Replaces a worn, frayed, or damaged power cord to restore electrical connection
• Provides the appliance's main AC connection so controls, heating, and motors can operate
• Helps resolve symptoms such as intermittent power, no power to the appliance, visible cord damage, or exposed wiring
• Matches the OEM form and function for a direct-replacement fit when the part number is correct

• One replacement power cord

• Disconnect power at the breaker or unplug the appliance before installing
• Route and secure the cord per manufacturer instructions; tighten terminal connections to proper torque

This temperature sensor (thermistor probe) monitors internal refrigerator temperatures and sends readings to the control board so cooling cycles respond correctly. Replacing a faulty sensor helps restore accurate temperature control and more consistent cooling. What it does:

• Senses cabinet temperature and provides a variable resistance signal to the control board
• Allows the refrigerator to cycle the compressor and fans based on actual temps
• Commonly linked to symptoms like temperature fluctuations, overcooling or warming, long run times, or cooling-related error codes
• Works as the temperature feedback element for fresh food/freezer systems

• Disconnect power to the appliance before starting any repair
• Handle probe and connector wiring carefully—do not kink or overly bend the sensor element
• Route and secure wiring per service manual or parts diagram to avoid contact with moving parts or heat sources

This outer cabinet provides the refrigerator's main exterior housing, restoring structural support and the appliance's finished appearance. Replaces a damaged or dented outer shell to help maintain proper component alignment and fit. What it does:

• Forms the refrigerator's outer housing and supports internal components and panels
• Protects internal parts from damage, dust, and moisture
• Restores proper alignment and mounting for doors, trim, and internal assemblies
• Addresses symptoms like visible dents, loose or misaligned panels, rattling, or gaps around the cabinet

• Disconnect power and remove food before beginning any repair
• This heavy panel may require two people and basic hand tools to remove and install
• Keep mounting hardware and insulation in place or transfer from the old cabinet as instructed by the service manual

This latch hook engages the door catch/lock on your appliance to keep the door securely closed. Replacing a worn or broken hook restores proper latching so cycles can start and run reliably. What it does:

• Engages the mating latch/strike to hold the door shut
• Ensures the door switch/lock is satisfied so the appliance can operate
• Helps prevent the door from popping open during use
• Common symptoms: door won't stay closed, must push/slam to start, "door open" errors, intermittent stopping

• 1 latch hook

• Disconnect electrical power before servicing; allow any hot surfaces to cool
• Wear cut-resistant gloves; edges and panels can be sharp
• Transfer and reuse original screws/fasteners if not supplied
• After installation, verify door alignment and latch engagement; inspect the mating strike/lock if the issue persists

The Door Release Lever is an OEM part for Frigidaire microwaves. It facilitates the smooth opening of the microwave door by engaging the latch mechanism when the door release button is pressed, ensuring convenient access to the microwave cavity.

Causes of a bad door release lever can include regular wear and tear, exposure to heat, or physical damage from forceful operation.

Symptoms of a bad Microwave Door Release Lever include:

• Difficulty opening the microwave door
• The door not latching properly or remaining ajar
• The door release button not functioning correctly
• Unusual resistance or noises when opening the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement cover is a protective panel used in the microwave assembly. It shields internal components from grease and debris and restores a clean, secure barrier when the original cover is cracked, burned, or missing.

• Shields internal components from food splatter, steam, and grease
• Helps maintain proper airflow and safe operation inside the cavity
• Common signs it's needed: cover is warped, cracked, scorched, loose, or missing
• Reduces arcing/sparking or buzzing caused by a damaged or contaminated cover

• Disconnect power before servicing; allow hot surfaces to cool
• Remove screws or release tabs to take off the damaged cover; reuse existing hardware if applicable
• Clean surrounding area to remove grease or debris, then seat the new cover fully and secure without overtightening
• For microwaves, internal high voltage can remain even when unplugged.

This bushing guides and supports a rotating shaft to reduce wear and keep moving parts aligned, restoring smooth, quiet operation. Fits specific Frigidaire appliances—use the OEM part number to fit for your model. What it does

• Supports a rotating shaft or drum to prevent metal-on-metal contact
• Reduces friction and wear that can cause squeaks, grinding, or rough rotation
• Helps maintain proper alignment for consistent appliance performance
• Commonly replaces worn or damaged bushings that allow excessive play

• Disconnect power before servicing and access the affected assembly per your model's service manual
• Remove the worn bushing and any debris; press or tap the new bushing into place squarely
• Inspect mating shaft/surface for scoring or wear; replace or repair if damaged
• Use only OEM-recommended lubricants if specified by the manufacturer; do not assume grease is required

This support assembly secures and stabilizes an appliance component to the cabinet or frame, restoring proper alignment and reducing vibration. Ideal when a broken or worn support causes movement or instability of the affected area. What it does:

• Provides structural mounting to keep panels, controls, or other components properly aligned.
• Reduces vibration, rattling, or visible sagging caused by a failed or loose support.
• Restores reliable attachment after damage, deformation, or worn mounting points.
• Matches OEM diagram locating for direct-replacement fit when replacing the faulty part.

• Disconnect power and unplug the appliance before starting any repair.
• Follow the OEM diagram for correct placement and fastener locations.
• Use appropriate hand tools and wear gloves to avoid sharp edges; inspect surrounding mounting hardware and replace if damaged.

The Turntable Tray is an OEM part for Frigidaire microwaves. It sits inside the microwave and rotates food to ensure even cooking and heating. Made of durable glass, this tray is designed to withstand high temperatures and the repetitive motion of the microwave's turntable motor.

Damage can occur due to accidental drops, placing heavy items on the tray, or thermal stress from repeated heating cycles.

Symptoms of a bad turntable tray include:

• Cracks or chips on the glass surface
• Unstable or wobbling movement during operation
• Inability to rotate smoothly
• Food not heating evenly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement appliance label provides the factory identification and safety information fastened to the appliance so you can read model/serial and safety/warning text clearly. It restores legible markings for servicing and ownership records. What it does

• Shows the appliance identification, model/serial or rating area and factory safety/warning text so technicians and owners can service data.
• Helps ensure required safety and operating instructions remain visible and readable.
• Replaces a torn, faded, or missing label that can make identification and troubleshooting harder.
• Supports accurate parts ordering and service by restoring the original markings.

• One replacement label

• Peel-and-stick replacement; clean and dry the surface thoroughly before applying.
• Align carefully and press from one edge to the other to avoid bubbles; firm pressure ensures adhesion.
• Do not stretch or trim the label unless explicitly specified by the equipment instructions.
• For safety, disconnect power or follow manufacturer safety precautions before working near electrical components.

This adhesive appliance label replaces a worn or missing identification/warning sticker so important model, safety or operating information remains visible. Keeps service and safety info readable for owners. What it does

• Replaces faded or damaged identification, rating or warning graphics on the appliance
• Restores legible safety and operating information that helps prevent misuse
• Helps confirm appliance details during troubleshooting and repairs
• Adhesive backing sticks to clean, flat surfaces for a long-lasting replacement

• Clean and dry the mounting surface; remove oils, dust and loose residue before applying
• Peel backing and press the label firmly in place, smoothing out air bubbles
• Replace only on compatible surfaces and locations; do not stretch or fold the label
• If removing old adhesive, use a plastic scraper and a mild solvent in a well-ventilated area; disconnect power to any nearby electrical components before working

This replacement electrical wire restores a damaged or faulty connection in compatible Frigidaire appliances, helping re-establish reliable power or signals to components. Use it when wiring is cracked, melted, or showing corrosion. What it does:

• Replaces a worn or damaged single conductor wire used in internal appliance circuits
• Restores continuity to fix intermittent power, component failure, or nonfunctional controls
• Prevents shorts caused by exposed or frayed insulation when installed correctly
• Matches OEM routing and connection points when used with the original harness and terminals

• Disconnect power before inspecting or replacing any internal wiring
• Verify wire routing and terminal fit with the original part; secure with appropriate connectors or clips
• Do not splice with incompatible gauge or insulation types; follow appliance wiring diagrams

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

• Secures panels, brackets, or trim to prevent movement and vibration
• Stops rattling or loose parts caused by missing or damaged screws
• Restores proper fit and alignment of the affected assembly
• Works wherever the OEM-designated screw of this size and thread is required

• Turn power off or unplug the appliance before working on electrical areas
• Use the proper-size driver to avoid stripping the head
• Start threads by hand, then tighten until snug — do not overtighten
• If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

• Secures panels, brackets, or trim to prevent movement and vibration
• Stops rattling or loose parts caused by missing or damaged screws
• Restores proper fit and alignment of the affected assembly
• Works wherever the OEM-designated screw of this size and thread is required

• Turn power off or unplug the appliance before working on electrical areas
• Use the proper-size driver to avoid stripping the head
• Start threads by hand, then tighten until snug — do not overtighten
• If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing

This is a replacement refrigerator water filter cartridge that helps reduce taste and odor from your drinking water and ice for cleaner, better-tasting results. Ideal for refrigerators that use an inline/cartridge-style filter. What it does:

• Filters chlorine taste and odor to improve water and ice flavor
• Helps reduce common particulates and sediments from the water flow
• Restores normal water dispensing performance when the original filter is exhausted
• Commonly replaced when water tastes off, ice smells, or water flow is reduced

• Replace with the refrigerator powered off or water supply shut off when possible
• Follow refrigerator manufacturer instructions for proper seating, alignment, and filter reset
• Flush several gallons of water through the dispenser after installation to clear air and loose carbon fines
• Dispose of the used cartridge according to local regulations
