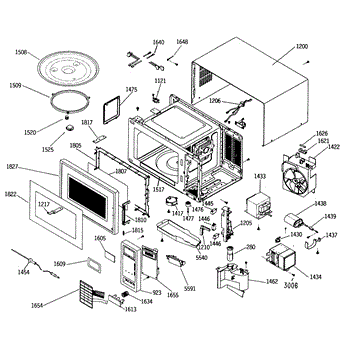

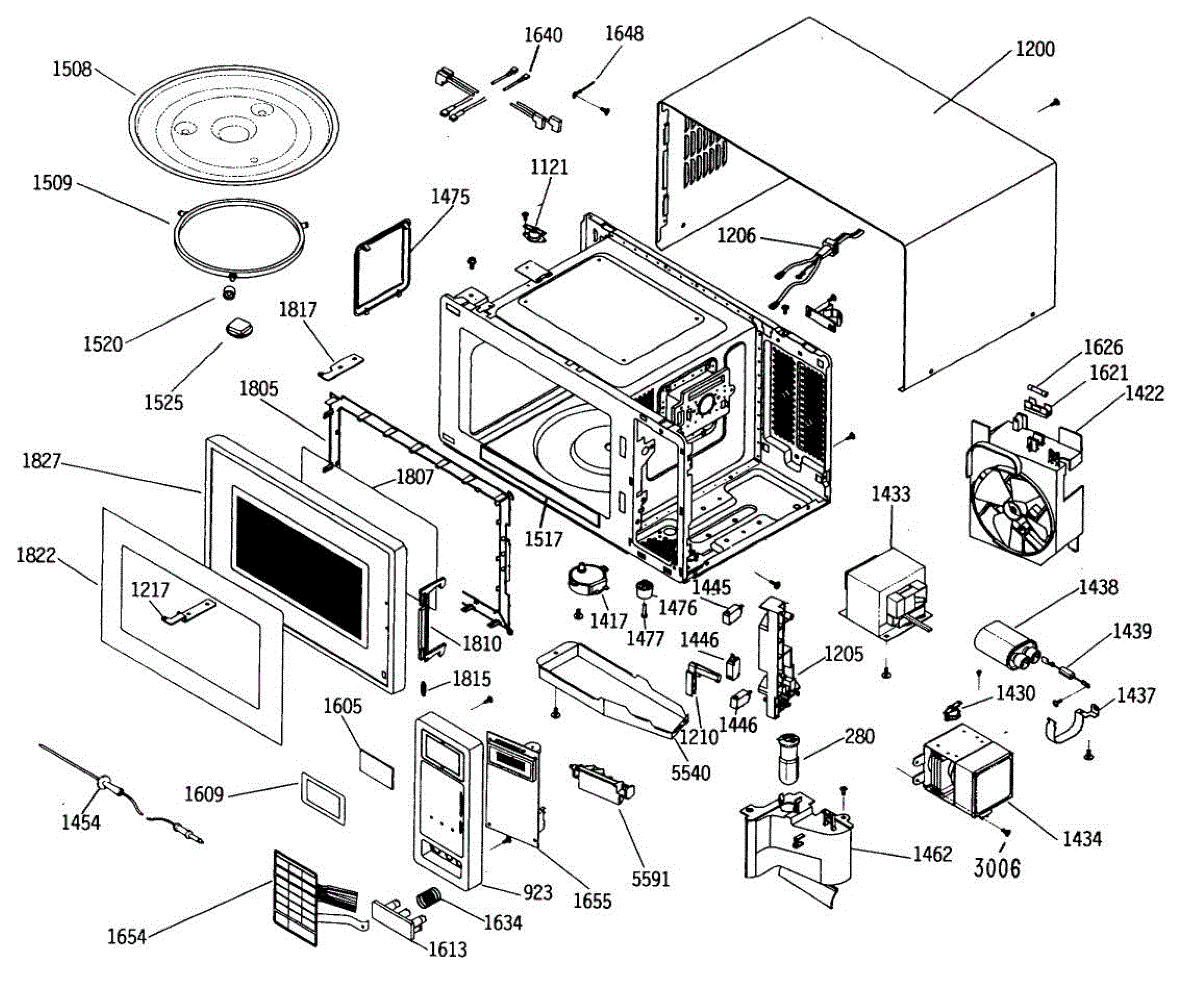

Parts for Ge JES1031TW02: 01 - Section1 Parts

Fix a microwave that won't heat or makes loud humming noises. This high voltage capacitor often fails when the magnetron can't generate heat properly.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Ceramic

Small keyed retaining spring that secures and tensions moving components in your microwave. Replaces worn, missing, or broken springs to restore alignment.

Washered screw secures panels, brackets, and internal microwave components. Replace if screw is missing, stripped, or damaged to restore proper fit.

This wiring schematic is the factory service diagram used to identify electrical circuits and component connections for troubleshooting and repairs. It helps technicians and DIYers trace wiring paths and proper connections during diagnosis. What it does:

• Shows the appliance's electrical circuits and component wiring layout
• Helps locate connectors, wire colors, and terminal designations for testing
• Aids in diagnosing electrical faults such as no power to a component or intermittent operation
• Useful reference when replacing components or harness connections

• Intended as a reference document only; follow factory instructions and wiring diagrams during repairs
• Turn off power to the appliance before performing any electrical tests or repairs
• Keep the schematic dry and flat to preserve legibility
