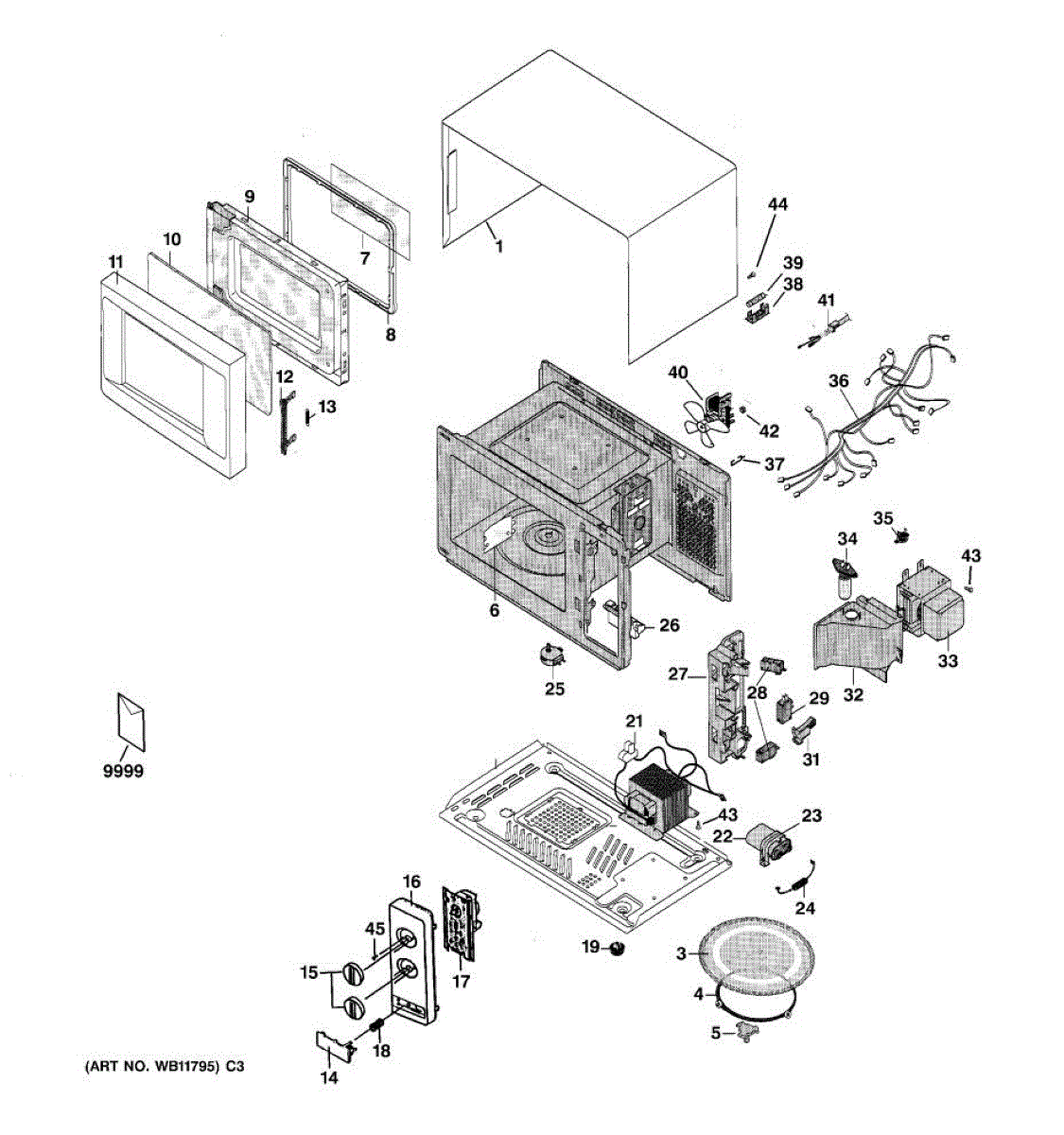

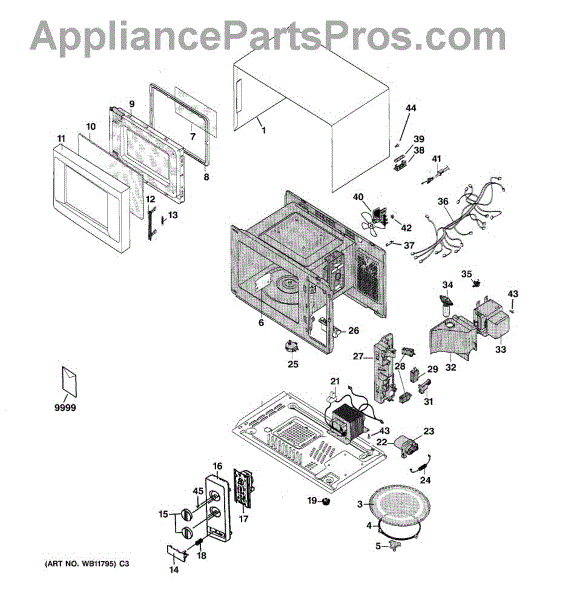

Parts for Ge JES611WC001: 01 - Section1 Parts

Turntable glass tray. Color: clear. Size. 11-1/2 inches diameter.

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

This turntable motor rotates the microwave's glass tray during cooking. Replacing a worn or seized motor restores smooth, consistent tray movement to help ensure even heating and reliable performance.

• Drives the turntable shaft/coupler to rotate the glass tray during cook cycles
• Helps promote more even cooking and defrosting
• Common symptoms of failure: tray doesn't turn, intermittent or jerky rotation, loud humming/grinding from beneath the cavity

• Disconnect power before servicing; microwaves contain high-voltage components—use caution
• Access is typically from the bottom of the unit; remove the tray and coupler, then the motor's mounting screws, and transfer the wire connections
• Align the motor shaft with the coupler and ensure the tray spins freely before reassembly
• Test with a microwave-safe cup of water to ensure smooth rotation

This door lever is the user-access handle component that lets the appliance door open and latch reliably. It replaces a damaged or broken lever to restore normal door operation and safe access. What it does:

• Provides the handle/lever action needed to open and close the appliance door
• Restores a secure latch action when the original lever is cracked, worn, or broken
• Stops sticking or slipping that can prevent the door from opening smoothly
• Helps prevent further damage to the door assembly by replacing a compromised lever

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Basic hand tools typically required; access may require removing the door or inner panel
• Inspect surrounding trim and mounting points for damage; replace additional parts if worn

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This plastic air cover directs cold air from the evaporator into the fresh food compartment to help maintain even temperatures and protect internal airflow components. Fits behind shelves near the evaporator outlet. What it does:

• Directs and diffuses cold air into the refrigerator cabinet for more even cooling
• Shields evaporator/air channel openings from debris and internal contact
• Helps prevent abnormal airflow noise when intact
• A damaged or missing cover can lead to uneven cooling or frost buildup near the evaporator

• Disconnect power before servicing to avoid electrical shock
• Remove shelves/panels as needed to access the cover; handle plastic tabs gently to avoid breakage
• Secure with OEM screws or clips; do not overtighten plastic fasteners

This is a magnetron that is used on microwave ovens. The purpose of the magnetron is to provide the microwaves that actually cook the foot inside of the microwave oven. Use caution when replacing this part. High-voltage capacitors in microwaves can retain a deadly amount of electrical charge, even when they are unplugged.If the microwave begins making a buzzing noise and doesn't heat food properly, this part will need to be replaced. Use extreme caution when working with this appliance. Unplug the unit first.This particular magnetron is compatible with microwave ovens that are manufactured by the General Electric, Hotpoint, and Maytag brands. This part is sold individually and is sourced directly from the manufacturer as a genuine OEM part.

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause
