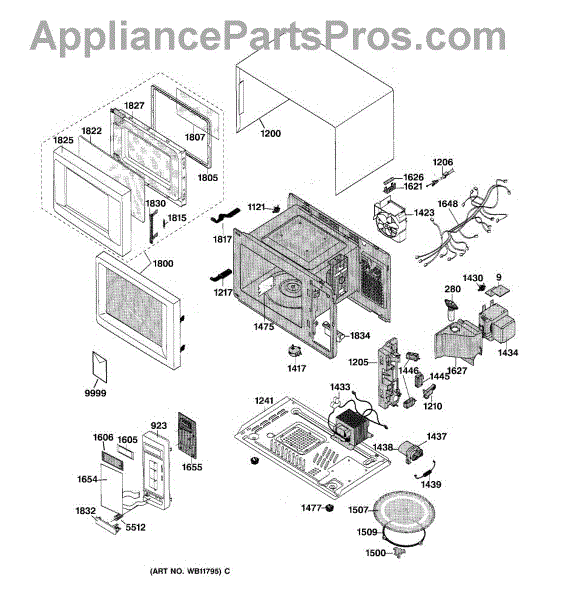

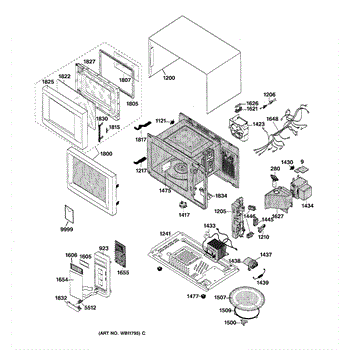

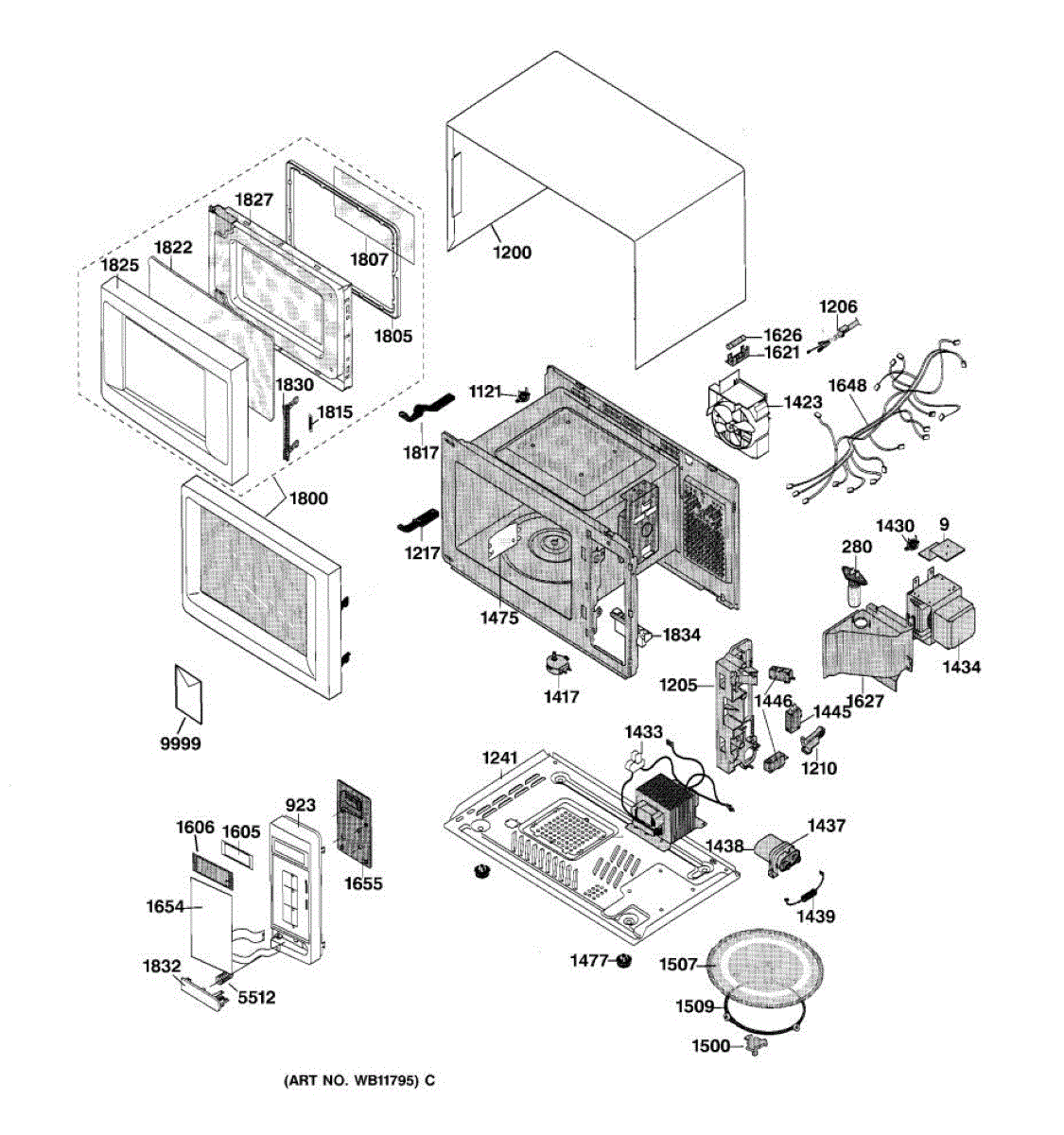

Parts for Ge JES934WY01: 01 - Section1 Parts

This turntable motor rotates the microwave's glass tray during cooking. Replacing a worn or seized motor restores smooth, consistent tray movement to help ensure even heating and reliable performance.

• Drives the turntable shaft/coupler to rotate the glass tray during cook cycles
• Helps promote more even cooking and defrosting
• Common symptoms of failure: tray doesn't turn, intermittent or jerky rotation, loud humming/grinding from beneath the cavity

• Disconnect power before servicing; microwaves contain high-voltage components—use caution
• Access is typically from the bottom of the unit; remove the tray and coupler, then the motor's mounting screws, and transfer the wire connections
• Align the motor shaft with the coupler and ensure the tray spins freely before reassembly
• Test with a microwave-safe cup of water to ensure smooth rotation

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

This magnetron assembly generates the microwave energy that heats food. Replace a weak or failed unit to restore proper cooking performance and resolve no-heat complaints when the microwave appears to run but no longer warms items. What it does:

• Converts high-voltage power into microwave energy to heat food inside the oven cavity
• Failure can cause: microwave runs but won't heat or takes much longer to heat
• Often accompanied by a loud humming/buzzing during cook
• May trip the internal fuse/breaker or shut off shortly after start
• Visible damage to the magnetron antenna cap or signs of arcing near the waveguide can point to failure

• 1 magnetron assembly

• Unplug the microwave and safely discharge the high-voltage capacitor before servicing
• Remove the outer cover to access the magnetron; note wire locations and orientation
• Transfer any required mounting hardware/shields from the old part; avoid touching or damaging the ceramic insulators or antenna cap
• Reassemble completely and test heating with a cup of water—never operate the unit empty

• No-heat issues can also be caused by a failed high-voltage diode, capacitor, transformer, or door switches; diagnose where safe before replacing

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This part has been discontinued and is no longer available.

The Cooking Tray is an OEM replacement part for GE microwaves, designed to support and rotate food for even cooking. This glass tray fits within GE microwave models, allowing for the optimal distribution of microwave energy throughout the food. By rotating, it ensures that meals are evenly heated, preventing cold spots and promoting a uniform cooking process. Microwave Glass Turntable Tray, 12 1/2" Dia. Might Be Smaller Than Original.

Causes of a bad Microwave Cooking Tray can include cracking, chipping, or breaking due to accidental drops or heavy impact. Over time, repeated use can also wear down the tray, potentially compromising its structural integrity.

Symptoms of a bad Microwave Cooking Tray include:

• Inability to rotate, affecting the microwave's ability to cook food evenly.
• Unstable movement or wobbling during operation.
• Cracks or breaks in the tray, which can lead to unsafe conditions or further damage to the microwave.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Ceramic
