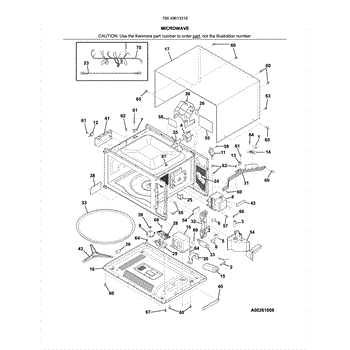

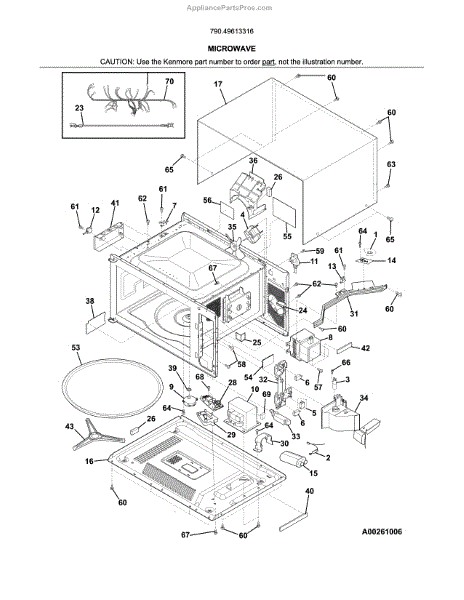

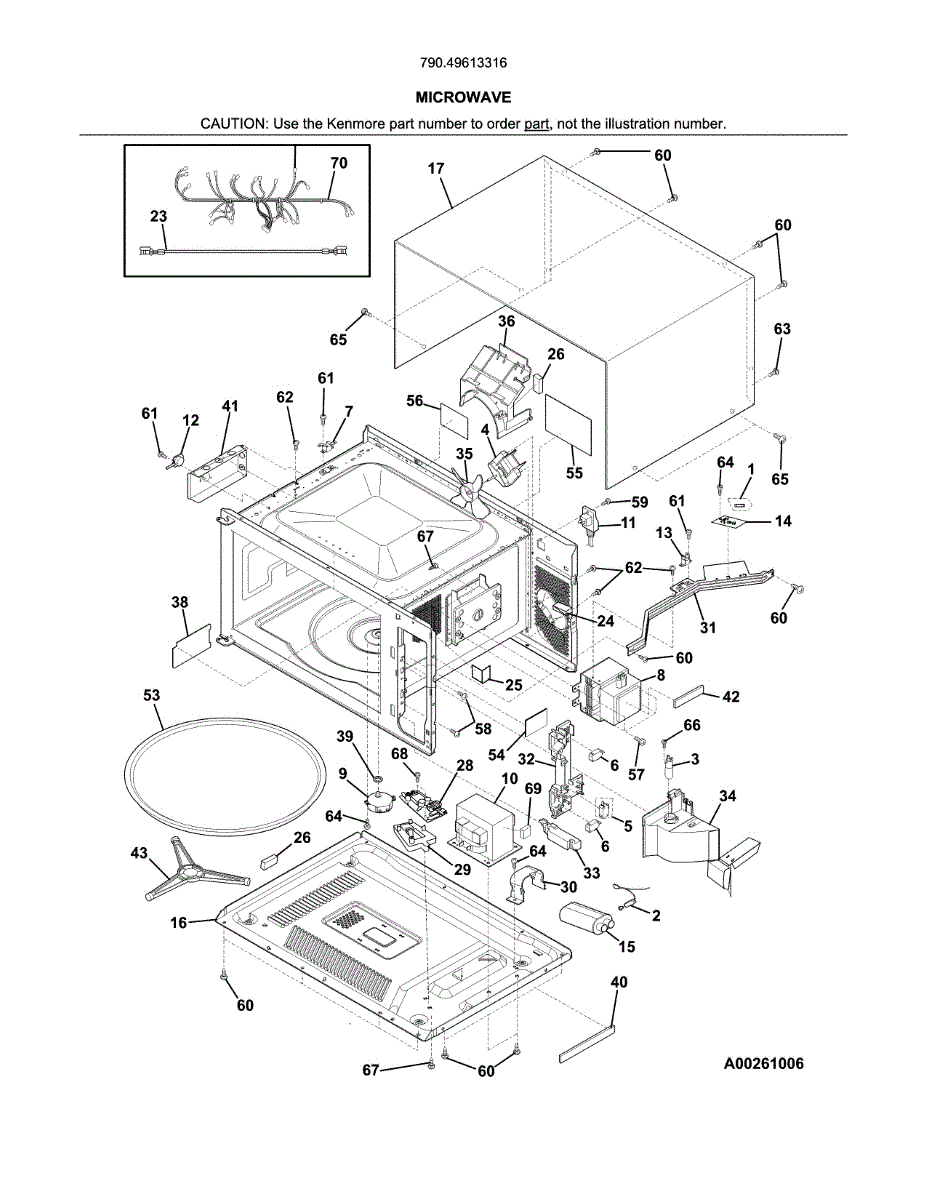

Parts for Kenmore 790.49613316 (79049613316, 790 49613316): Microwave Parts

The Capacitor/Rectifier is an OEM part for Frigidaire microwaves. It functions to convert alternating current (AC) into direct current (DC) that is required to power the microwave's magnetron tube and internal control circuits. The capacitor works alongside the high-voltage transformer to start and maintain safe operation during cooking cycles.

Causes of failure include drying out or cracking of the capacitor's internal dielectric material over extended heat exposure and use. It may also fail prematurely due to power surges.

Symptoms of a bad component include:

• The microwave failing to start or having inconsistent power levels
• Buzzing or humming from internal electronic areas
• Tripped circuit breakers or blown fuses after use
• Fault codes or error messages related to electrical issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore microwave models.

Replace a failed light socket with this lamp assembly to restore reliable illumination inside your appliance. If your bulb is good but the light won't work or flickers, the socket assembly is a likely culprit.

• Holds the bulb and supplies power to illuminate the interior or work area
• Replaces cracked, heat-damaged, or loose sockets and terminals
• Helps resolve no light, intermittent flicker, or arcing at the socket
• Designed to fit the original mounting and wiring on compatible models

• Disconnect power before servicing to avoid electrical shock
• Allow the lamp and surrounding area to cool before handling
• Move wires to the new assembly one at a time to maintain correct connections
• Use the bulb type and wattage specified for your model; do not overtighten the bulb

This drive motor restores rotational power to the appliance's drum or agitator so loads spin and drain correctly. It's a direct-replacement motor designed to restore normal wash and spin cycles when the original motor fails. What it does:

• Provides the mechanical drive force for the washer drum/agitator so clothes tumble and spin
• Re-establishes proper agitation and spin speed control when a worn or failed motor causes no-spin or no-agitate symptoms
• Operates with the appliance's existing pulley, belt, or coupling
• Works as the core rotating component tied to load movement and draining functions

• One motor

• Disconnect power and water before beginning any repair; follow the appliance service manual for safe access
• Replacement typically requires removing cabinet panels, drive belt or coupling, and electrical connector—avoid forcing parts
• Inspect associated belts, couplings, and mounting hardware; replace worn items to prevent repeated failures

This push-button door switch detects when a refrigerator or freezer door opens and closes so interior lights and fans operate correctly, helping maintain visibility and normal cooling function. What it does

• Sends an open/closed signal to control the interior light and fan when the door moves
• Commonly replaces a worn or stuck switch that causes lights to stay on or fail to turn on
• Helps prevent unnecessary run time of interior lights that can warm the cabinet
• Works as the user-access point for door-open sensing in compatible Frigidaire appliances

• One push-button door switch

• Disconnect power before starting any repair to avoid shock or damage
• Access and replace the switch from the door or cabinet interior per your model's disassembly steps
• Handle wiring and connectors gently; ensure secure connections before restoring power

The Door Switch is an OEM replacement part for Frigidaire wall ovens. It is a component located on the oven door that detects when the door is opened and closed. The door switch works alongside the control board to regulate oven operations based on door position.

Symptoms of a bad door switch can include:

• Oven failing to automatically go into bake or warm modes after door closure
• Interior lights not turning on when the door is opened
• Control buttons/display remaining constantly lit instead of dimming
• Oven not heating or functioning properly in different modes

Causes relate to normal wear over extended use as the door switch mechanism cycles with frequent door openings and closings. Moisture exposure or impacts could also degrade switch performance.

This OEM Frigidaire switch is compatible with Amana, Jenn-Air, KitchenAid, and some Electrolux wall oven models as well.

This thermal fuse stops excessive heat by opening the circuit when temperatures get too high, protecting the appliance and its components. Replace a blown fuse to restore normal heating or safety shutdown functions. What it does:

• Acts as an over-temperature safety device to interrupt power when internal temps exceed safe limits
• Commonly linked to symptoms such as no heat, intermittent heating, or an appliance that won't start
• Prevents further damage by cutting power when a serious overheating condition occurs
• Functions as a single-use safety cutout—if it's open, it must be replaced

• One thermal fuse

• Disconnect power before testing or replacing; verify no voltage present
• Test continuity with a multimeter to confirm the fuse is open before replacing
• Replace with the same part number and rating; do not bypass or substitute with wire
• If the fuse failed, inspect the appliance for underlying issues before returning to service

The Magnatron is an OEM part for Frigidaire microwaves. It is the principal electronic component responsible for converting electrical energy into microwave radiation, allowing for fast and efficient cooking or heating of food.

Causes can be related to normal component fatigue over extended use. High voltage magnetron coils are also susceptible to power fluctuations or surges over time.

Symptoms of a faulty magnatron include:

• Inability of the microwave to transmit energy and heat foods
• Slow or ineffective cooking times
• Oven light working but no microwave output
• Overheating, arcing or burning smells from the unit

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement motor restores reliable rotation to the component it drives—bringing back proper airflow or mechanical movement so your appliance runs as designed and noise is minimized.

• Converts electrical energy into steady shaft rotation to power the attached fan, blower, or mechanism
• Common failure signs: won't start, only hums, stalls, or intermittently runs
• Worn bearings or windings can lead to overheating and reduced performance

• Disconnect power before servicing; if the unit uses capacitors, discharge them per the service manual
• Note wire locations and transfer any brackets, grommets, or fan blades from the old motor
• Mount securely, align the shaft, and confirm correct rotation before finalizing
• Spin the shaft by hand to check for free movement, then test for smooth, quiet operation

Control transformer that supplies the low-voltage power needed for the appliance's electronic control/console, restoring reliable operation when the original transformer fails or the display and controls lose power. What it does:

• Converts incoming line voltage to the low-voltage supply used by the control board and console.
• Keeps the display, touchpad/keys and control electronics powered and stable.
• Common symptoms of a failing transformer: unlit or blank display, unresponsive controls, intermittent operation, or control board power loss.
• Replace a visibly burned, cracked, or shorted transformer to prevent further electrical damage.

• Always disconnect power to the appliance before servicing to avoid electric shock.
• Take care with wiring: match original connector positions and secure all wire nuts/terminals.
• Inspect mounting hardware and insulation; replace any damaged fasteners or wires.

This temperature sensor (thermistor probe) monitors internal refrigerator temperatures and sends readings to the control board so cooling cycles respond correctly. Replacing a faulty sensor helps restore accurate temperature control and more consistent cooling. What it does:

• Senses cabinet temperature and provides a variable resistance signal to the control board
• Allows the refrigerator to cycle the compressor and fans based on actual temps
• Commonly linked to symptoms like temperature fluctuations, overcooling or warming, long run times, or cooling-related error codes
• Works as the temperature feedback element for fresh food/freezer systems

• Disconnect power to the appliance before starting any repair
• Handle probe and connector wiring carefully—do not kink or overly bend the sensor element
• Route and secure wiring per service manual or parts diagram to avoid contact with moving parts or heat sources

This motor capacitor helps start and run appliance electric motors by providing the brief boost of power the motor needs to reach operating speed. Replaces a failed capacitor to restore normal motor starting and performance. What it does:

• Provides the electrical phase shift and momentary voltage boost motors need to start and run
• Commonly replaced when a motor hums, will not start, or runs weakly
• Helps stabilize motor operation and reduce hard starting stresses
• Resolves intermittent or failed motor startup symptoms when capacitor is the root cause

• Disconnect power to the appliance before accessing or replacing the capacitor
• Discharge stored voltage in the capacitor before handling to avoid shock
• Verify terminal connections and orientation match the original before installation

This outer cabinet provides the refrigerator's main exterior housing, restoring structural support and the appliance's finished appearance. Replaces a damaged or dented outer shell to help maintain proper component alignment and fit. What it does:

• Forms the refrigerator's outer housing and supports internal components and panels
• Protects internal parts from damage, dust, and moisture
• Restores proper alignment and mounting for doors, trim, and internal assemblies
• Addresses symptoms like visible dents, loose or misaligned panels, rattling, or gaps around the cabinet

• Disconnect power and remove food before beginning any repair
• This heavy panel may require two people and basic hand tools to remove and install
• Keep mounting hardware and insulation in place or transfer from the old cabinet as instructed by the service manual

This latch hook engages the door catch/lock on your appliance to keep the door securely closed. Replacing a worn or broken hook restores proper latching so cycles can start and run reliably. What it does:

• Engages the mating latch/strike to hold the door shut
• Ensures the door switch/lock is satisfied so the appliance can operate
• Helps prevent the door from popping open during use
• Common symptoms: door won't stay closed, must push/slam to start, "door open" errors, intermittent stopping

• 1 latch hook

• Disconnect electrical power before servicing; allow any hot surfaces to cool
• Wear cut-resistant gloves; edges and panels can be sharp
• Transfer and reuse original screws/fasteners if not supplied
• After installation, verify door alignment and latch engagement; inspect the mating strike/lock if the issue persists

The Door Release Lever is an OEM part for Frigidaire microwaves. It facilitates the smooth opening of the microwave door by engaging the latch mechanism when the door release button is pressed, ensuring convenient access to the microwave cavity.

Causes of a bad door release lever can include regular wear and tear, exposure to heat, or physical damage from forceful operation.

Symptoms of a bad Microwave Door Release Lever include:

• Difficulty opening the microwave door
• The door not latching properly or remaining ajar
• The door release button not functioning correctly
• Unusual resistance or noises when opening the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement cover restores a clean, secure fit over an opening on your appliance, helping shield internal components from dust, moisture, and debris. Replace a damaged or missing cover to maintain proper protection and appearance. What it does:

• Shields internal parts from grease, dust, and debris intrusion
• Helps maintain proper airflow and component protection as designed
• Reduces vibration or rattling from loose or broken panels
• Restores a finished, factory look when the original is cracked or missing

• 1 cover

• Disconnect power to the appliance before servicing
• Note fastener locations and orientation for correct reinstallation
• Reuse original screws/clips unless your unit specifies otherwise
• Use gloves and caution—panel edges and surrounding metal can be sharp

This support assembly secures and stabilizes an appliance component to the cabinet or frame, restoring proper alignment and reducing vibration. Ideal when a broken or worn support causes movement or instability of the affected area. What it does:

• Provides structural mounting to keep panels, controls, or other components properly aligned.
• Reduces vibration, rattling, or visible sagging caused by a failed or loose support.
• Restores reliable attachment after damage, deformation, or worn mounting points.
• Matches OEM diagram locating for direct-replacement fit when replacing the faulty part.

• Disconnect power and unplug the appliance before starting any repair.
• Follow the OEM diagram for correct placement and fastener locations.
• Use appropriate hand tools and wear gloves to avoid sharp edges; inspect surrounding mounting hardware and replace if damaged.

The Turntable Tray is an OEM part for Frigidaire microwaves. It sits inside the microwave and rotates food to ensure even cooking and heating. Made of durable glass, this tray is designed to withstand high temperatures and the repetitive motion of the microwave's turntable motor.

Damage can occur due to accidental drops, placing heavy items on the tray, or thermal stress from repeated heating cycles.

Symptoms of a bad turntable tray include:

• Cracks or chips on the glass surface
• Unstable or wobbling movement during operation
• Inability to rotate smoothly
• Food not heating evenly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement identification label displays appliance model, serial, and rating information so you can correctly identify your unit for service or parts ordering. Durable adhesive backing helps keep factory information legible. What it does:

• Replaces a torn, faded, or missing identification/rating label so model and electrical data are readable
• Helps technicians and owners model/serial and voltage/current ratings during diagnosis or repairs
• Prevents confusion when ordering parts or scheduling service by restoring original identification
• Non-electrical — does not affect operation of the appliance

• Clean and dry the mounting surface before applying for best adhesion
• Peel backing and press firmly; avoid stretching or folding the label
• Do not place over vents, seals, or moving parts; install in the original label location if known

This is a replacement adhesive identification label used to restore factory markings and safety information on the appliance. It helps keep model, rating or warning information legible for service and safe operation. What it does

• Replaces a torn, faded, or missing appliance identification label
• Restores readable model, serial, rating or warning information that owners rely on
• Helps prevent confusion during service by keeping factory markings visible
• Maintains appliance appearance and compliance with original labeling

• One adhesive identification label

• Clean and dry the application area before installing to ensure proper adhesion
• Align the label carefully and press firmly from one side to the other to avoid bubbles
• No specialized tools required; avoid stretching or folding the label during placement

Replacement screw used to secure panels, trim, and internal components in Frigidaire appliances. Restores proper fit after repairs and helps eliminate rattling or loose parts for safer, quieter operation. What it does:

• Secures panels, brackets, and trim to maintain correct alignment and fit
• Prevents vibration and rattling caused by loose or missing fasteners
• Use when original screw is missing, stripped, or damaged
• Matches common fastener locations on affected Frigidaire appliances

• Disconnect power and water before starting any repair
• Use the correct driver to avoid stripping the screw head; hand-start to ensure alignment
• Do not overtighten; tighten until snug to avoid damaging threads or plastic parts

This is a genuine mounting screw used to secure appliance components and panels for a safe, stable fit. It replaces a lost or damaged fastener to restore proper alignment and reduce rattles or loose trim. What it does:

• Secures panels, trim, brackets or small assemblies to the appliance frame
• Prevents vibration-related noise and loose or sagging parts
• Restores proper fit after repair or disassembly
• Useful when the original screw is stripped, missing, or broken

• One mounting screw

• Use the correct screwdriver or bit to avoid stripping the head
• Power off and unplug the appliance before servicing when applicable
• Keep removed hardware organized to ensure correct reassembly
• If threads are damaged, replace with the specified OEM screw only
