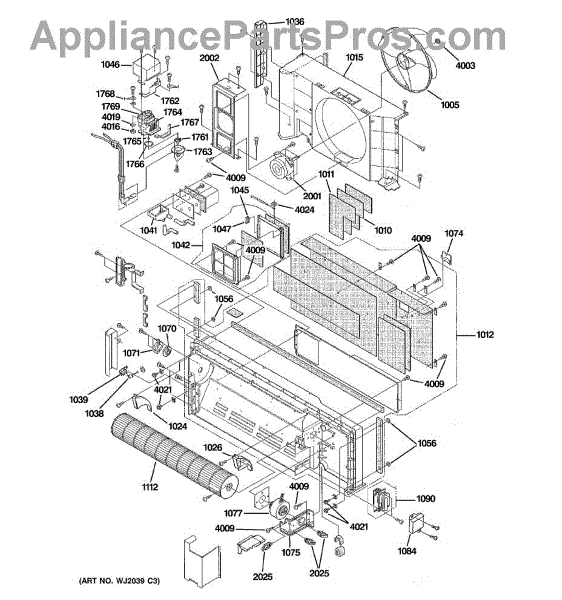

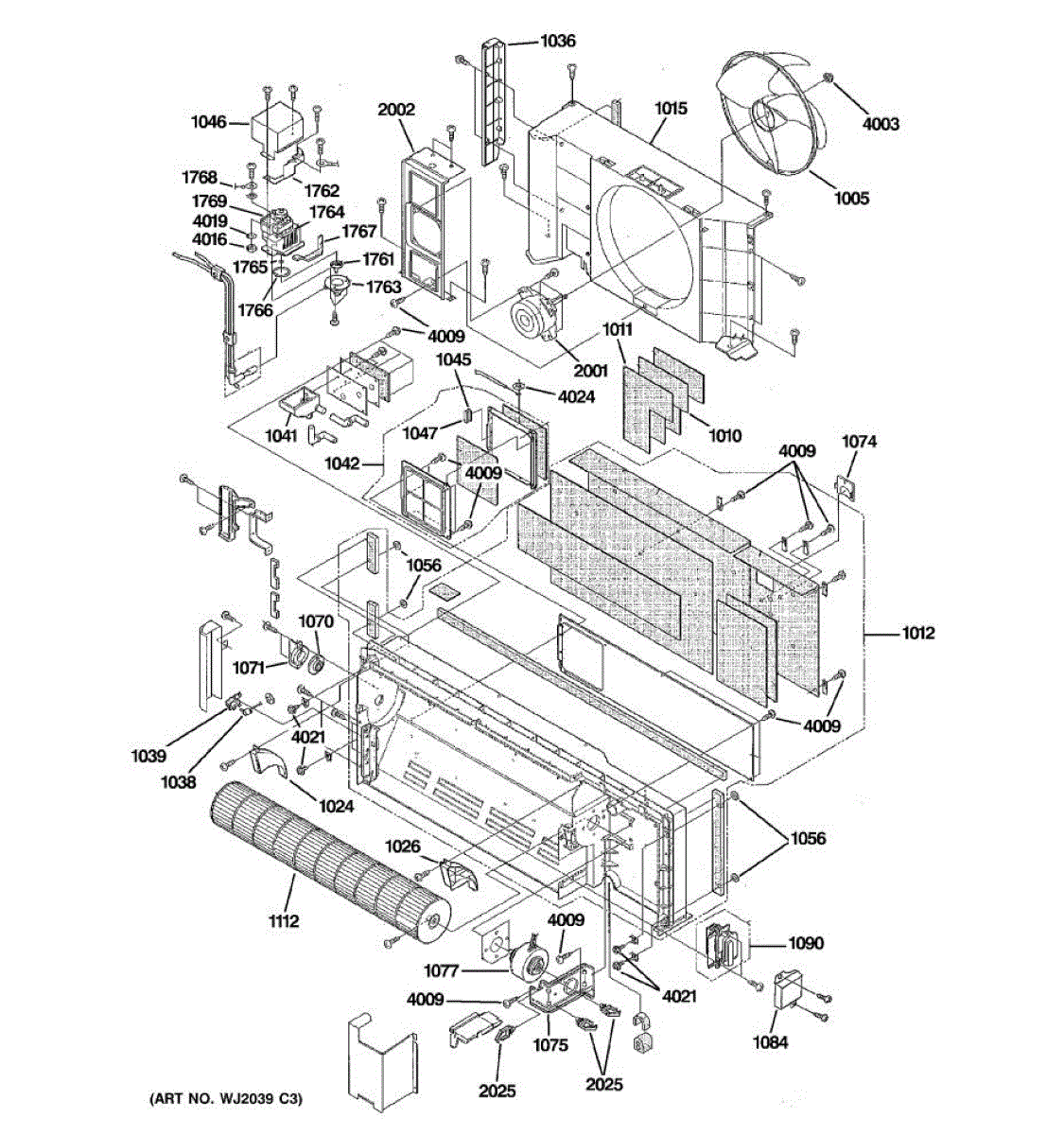

Parts for Ge AZ61H12EACW1: 03 - Motor & Chassis Parts

A condenser plate that secures and shields the refrigerator condenser assembly for stable operation and proper airflow. Replaces a damaged or missing plate to help maintain condenser protection and consistent cooling performance. What it does:

• Secures the condenser assembly and related components to the cabinet/frame
• Protects the condenser coil from debris and physical damage
• Helps direct airflow around the condenser for efficient heat dissipation
• A failing or missing plate can allow vibration, rattling, or reduced cooling effectiveness

• One condenser plate

• Disconnect power to the appliance before starting any repairs
• Use care handling the plate—edges may be sharp
• Retain and reuse existing mounting hardware if compatible; verify hole alignment before tightening

This bearing assembly supports the dryer drum and helps the drum rotate smoothly for quiet, even drying. Replacing a worn bearing restores stable drum movement and reduces noise and vibration. What it does:

• Provides a low-friction support surface for the dryer drum, helping it spin properly
• Prevents drum wobble and off-center rotation that can wear belts and rollers
• Reduces squealing, grinding, or rumbling noises caused by a failing bearing
• Helps maintain even drying by keeping the drum aligned

• Disconnect power and fuel (gas) supply before starting any repair
• Access typically requires removing the dryer front or rear panel and drum; refer to a model-specific repair guide
• Use proper tools and support the drum during removal to avoid damage
• Inspect adjacent parts (shaft, seal, rollers) for wear and replace if visibly damaged

This Closs fan is a direct-replacement fan assembly designed to restore proper air circulation in the appliance and help maintain even cooling and consistent performance. It replaces a worn or damaged fan without needing a full module swap. What it does:

• Circulates air inside the compartment to support consistent temperature and efficient operation
• Replaces a damaged, cracked, or missing fan that causes reduced airflow
• Stops or reduces abnormal noise caused by a failing or unbalanced fan
• Helps prevent localized warm spots that can lead to food spoilage or performance loss

• One Closs fan assembly

• Disconnect power to the appliance before beginning any repair
• Handle fan blades carefully to avoid damage; verify correct orientation before fastening
• Basic hand tools are typically required

This pump housing cover protects and seals the appliance drain/pump assembly to help direct water flow and prevent leaks. It replaces a worn or damaged cover to restore proper drainage and reduce water under the appliance. What it does:

• Seals the pump housing so water drains through the pump instead of leaking out
• Helps maintain correct flow path for the drain system
• Common replacement for symptoms like leaks under the appliance or water pooling after cycles
• Can be needed if cover is cracked, warped, or the pump seal area is damaged

• Disconnect power and water supply before starting any repair
• Drain remaining water from the appliance and work on a dry surface
• Remove access panels and mounting hardware to reach the pump housing; keep fasteners for reassembly
• Inspect sealing surfaces and gaskets; replace any damaged seals to ensure a leak-free fit; test appliance after reassembly

This replacement fan housing secures the evaporator fan motor and blade assembly to restore proper airflow inside the freezer compartment, helping the appliance maintain consistent cooling and temperature control. What it does:

• Holds the evaporator fan motor and blade in the correct position to direct airflow across the evaporator coils
• Restores stable, quiet fan operation when a cracked or damaged housing causes vibration or rubbing
• Helps improve cooling consistency when airflow has been disrupted
• Prevents contact between the fan blade and cabinet that can cause noise or motor strain

• 1 fan housing

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels or the evaporator cover; keep fasteners organized
• Inspect the fan blade and motor during install; replace any damaged components to prevent repeat failure
• Do not overtighten mounting screws; ensure the fan spins freely after installation

A replacement rubber O-ring that seals connections to help prevent water or air leaks and restore proper sealing performance. Use this small, flexible gasket where a worn O-ring is allowing drips or loss of pressure. What it does:

• Forms a watertight/airtight seal between joined parts to stop leaks
• Prevents water from dripping at hose, valve, or fitting connections
• Restores reliable sealing when an original O-ring is cracked, flattened, or missing
• Helps maintain pressure and proper flow by eliminating gaps

• Inspect mating surfaces and replace the O-ring only when the exact size and material match the original
• Lightly coat with food-safe silicone or the manufacturer-recommended lubricant
• Ensure the O-ring seats evenly in its groove before reassembling; avoid twisting or pinching
• Disconnect power and shut off water supply before replacing parts; follow all appliance-specific safety instructions
