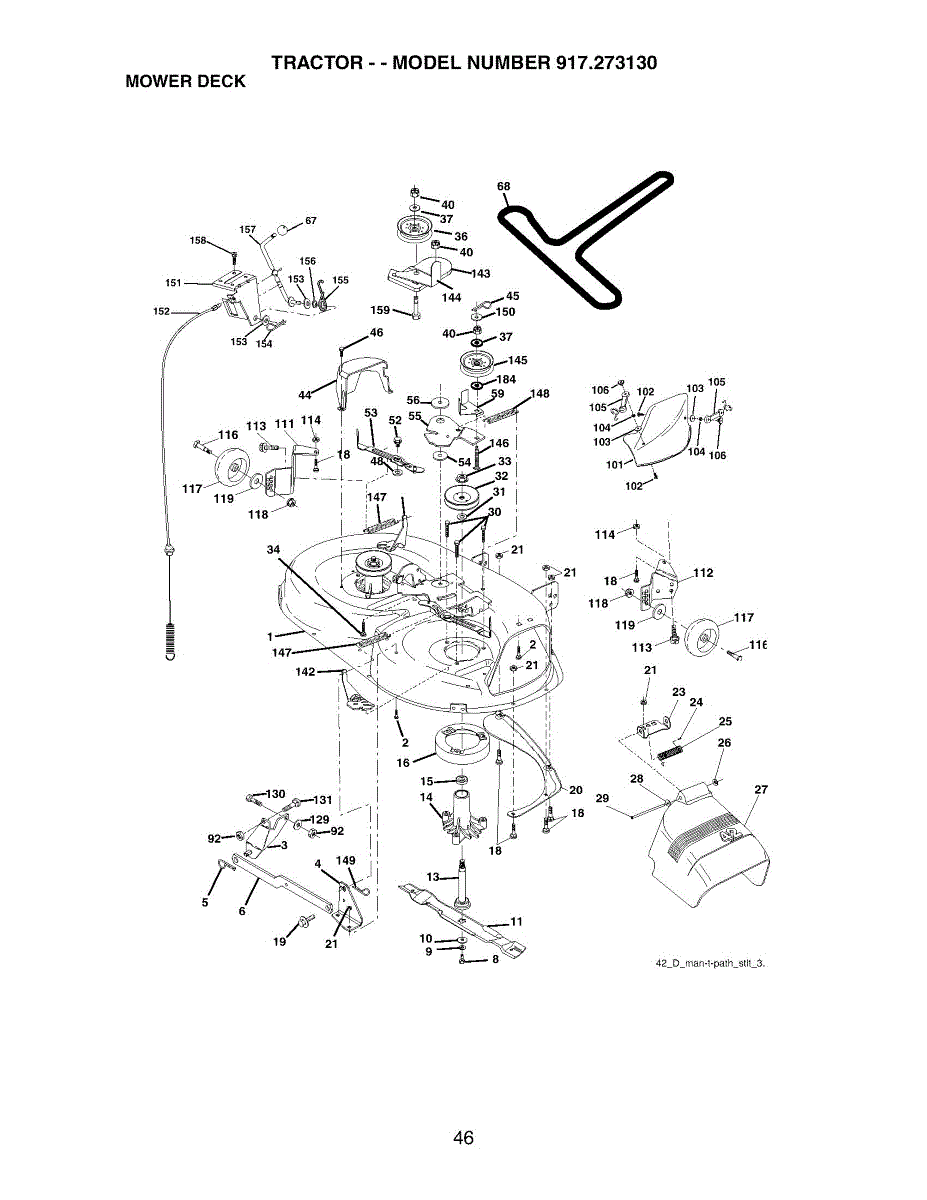

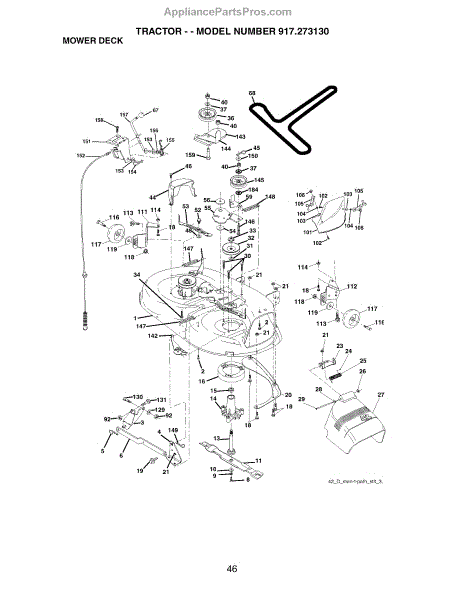

Parts for Craftsman 917273130: Mower Deck Parts

Uneven grass or poor mulching? This lawn tractor mulch blade restores clean cutting and even mulch distribution. Direct-fit replacement part.

Fix uneven cuts and poor grass discharge with this high lift mower blade. Creates proper suction for even cutting and efficient clipping collection.

Fix uneven cuts and poor grass discharge with this high lift mower blade. Creates proper suction for even cutting and efficient clipping collection.

This is a genuine OEM mandrel kit with a nut that is sourced directly from the manufacturer. It is designed for use on lawnmowers, tractors, and other outdoor lawn and garden equipment. The mandrel is responsible for spinning the blades on lawn mowers. It is part of the deck and can be a safety issue if not properly attached or if broken. If the spindle is broken or bent during use, it is apparent by uneven cutting, loud squealing, or vibrations, and buzzing sound. Mandrel replacement should be on a flat service for safety. If the mower is hot, allow it to cool before making repairs. Remove the spark plug and empty the gas tank. If the deck on the mower is removable, remove it before jacking the mower up. Once the mower is in the air, remove the blades to access the spindle. Remove the spindle. This is an excellent time to check the bearings and replace them if needed. Install the new spindle. Reinstall the blades. Lower the mower and if the deck was removed, reinstall the deck. This mandrel kit is made of high tensile metal; it comes with the nut for installation; it is sold as an individual unit. This mandrel kit is compatible with lawn mowers manufactured by Husqvarna Poulan, Weed Eater, and Ryobi.

Push nut secures components on lawn mowers and tractors. Replace if missing, damaged, or worn to restore proper assembly and prevent parts from loosening.

A V-belt is responsible for transmitting energy. It is made from a thick and sturdy rubber material. It features grooves for improved traction and measures ½ x 95-1/2. A worn-down v-belt can lead to inefficient energy loss, and therefore poor performance. Installing this v-belt requires pliers and a wrench. First, the spark plug wire needs to be removed. Then, position the mower deck to the lowest possible level. Move the machine's blade engagement level to OFF. Remove the belt found from the engine pulley. Don't forget to take out the bow-tie pins and blade engagement cable as well. Remove the bolt from the pulley cover and loosen the nuts found at the idler pulley. Put the new belt and then tighten the nuts on the idler pulleys. The deck can now be re-assembled to its original position. This Husqvarna 532144959 V-Belt OEM Replacement can help keep a lawnmower in top condition. This genuine Husqvarna made V-belt is specifically for driving the blades on a lawnmower. It is compatible with Ariens, Craftsman, Poulan Pro, Dixon, and Husqvarna mowers. This V-belt is sold individually.
