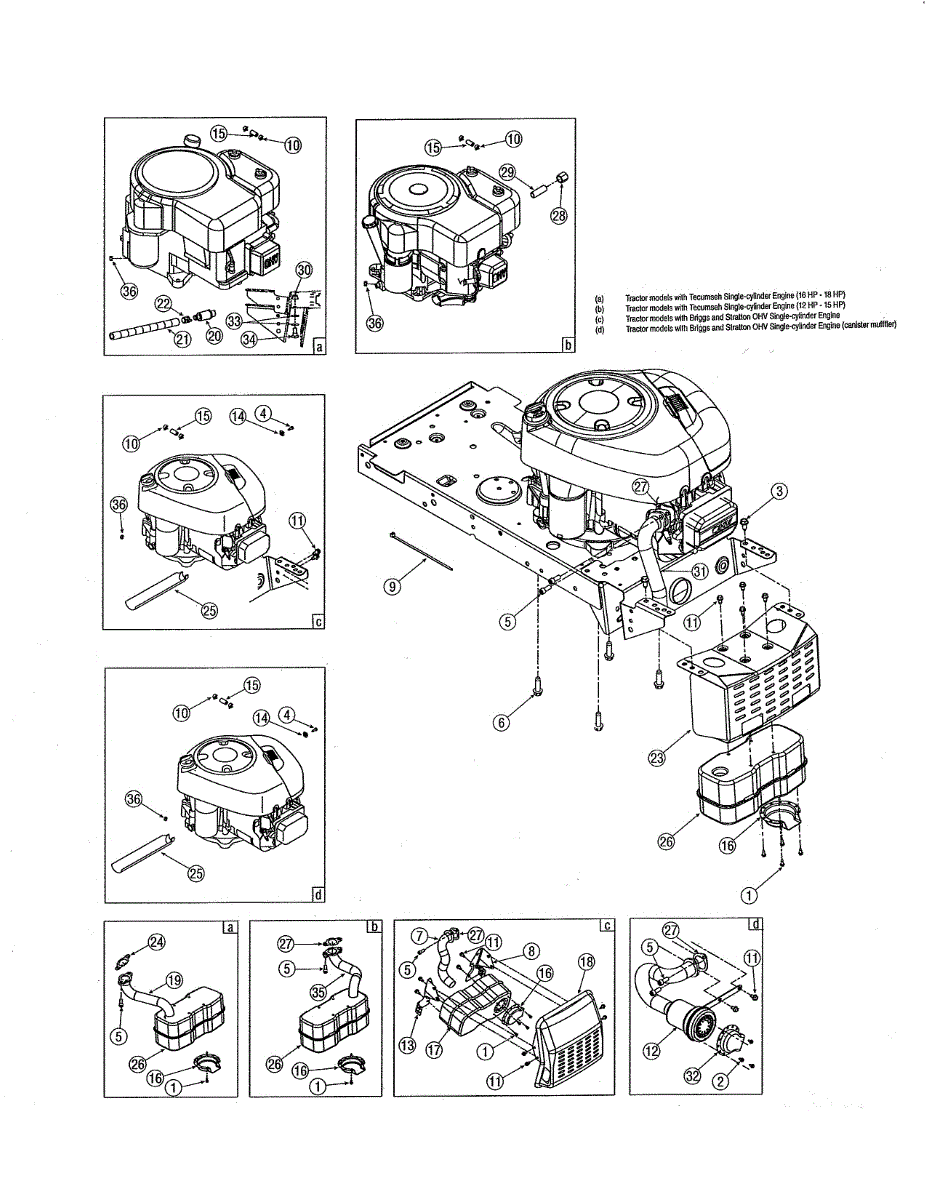

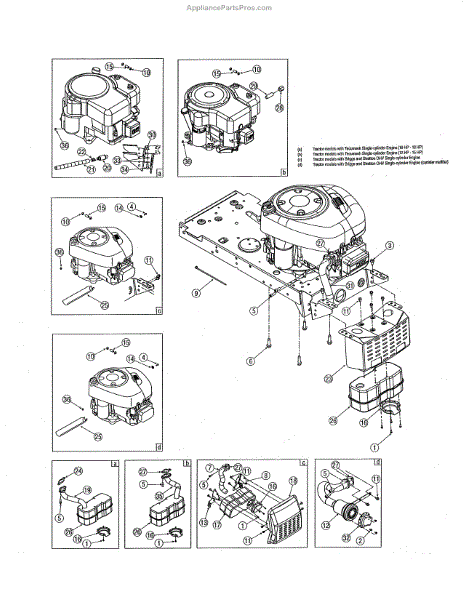

Parts for Yard-Man 13AN771G755: Muffler / Engine Parts

This is a genuine replacement self-tapping hex screw with a blunt nose designed for lawn mowers and lawn tractors. It is used in a variety of locations for the engine assembly of lawn mowers. The self-tapping feature allows the metal screw threads to tightly secure to other metal. The blunt nose requires the use of a pre-drilled pilot hole smaller than the diameter of the screw. These screws do not interchange well. Be sure to check the owner's manual to ensure the correct part number. The hex head needs a socket wrench for the easiest removal and replacement. When removing this type of screw, stripped threads can occur. If this happens, use a screw of the same type in a slightly larger size to accommodate for the damage. Typically, this type of screw would need to be replaced when removed to access another part of the lawn mower for replacement, such as the carburetor. This an OEM part sourced directly from the manufacturer and is sold individually. This screw fits products by Bolens, Brute, Columbia, County Line, Craftsman, Cub Cadet, Huskee, Huskee Supreme, MTD Black, MTD Gold, Mastercut, Murray, Troy Bilt, Yard Man, & Yard Machines.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This replacement part is a muffler. It quiets engine noises.A new muffler might be needed if the machine is louder than normal or is making unusual noises. This can be from a damaged or missing muffler.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This casing clamp is a genuine MTD part, sold individually. This casing clamp can be used as a replacement part in lawn mowers, snowblowers, and tillers. The purpose of a casing clamp for one of these outdoor appliances is to affix the governor control plate to the tank assembly so that it remains stably placed throughout the standard operation of the appliance.If the casing clamp is subject to damage in the form of puncturing, denting, cracking, warping, or eroding over time, it should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This casing clamp is compatible with the following outdoor appliance brands: MTD, Craftsman, Ryobi, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Montgomery Wards, Yard Man, Bolens, and MasterCut.

This is a quality muffler bracket that is made for use with lawn tractors and lawnmowers by several manufacturers. This part is located on the muffler and acts as a protective component to prevent damage to the muffler on the lawn and garden equipment. The muffler bracket is made of durable plastic but can be damaged or break. When this occurs, it will need to be replaced to ensure the muffler does not become damaged.When replacing the muffler bracket, a screwdriver and work gloves will be needed. Make sure the lawnmower is powered off and on a level surface before disconnecting the spark plug wire. This will ensure the process is safe and there is no chance of the tool powering on. The original muffler guard can be unscrewed from the tool before using the same screws to put the new component in place. Replace the spark plug wire before use.This muffler bracket is sold as a single part. It is a genuine OEM replacement part that is directly sourced from the manufacturer. The part is made to be compatible with lawnmowers and lawn tractors created by MTD, Bolens, Yard Machines, Troy-Bilt, and Yard-Man.

This muffler is a genuine OEM replacement part sourced directly from the manufacturer for use on lawn and garden equipment. It reduces the noise coming from the exhaust. Being a metal part exposed to the elements, it is not uncommon for mufflers to corrode over time and need replacement. As a lawnmower part, the muffler may sustain damage from debris in the yard while mowing. In either case, the muffler should be removed and replaced to keep the noise level to a minimum.The engine and damaged muffler should be cool to the touch before repairing the lawnmower. Wear work gloves and safety goggles. Remove the spark plug from the lawnmower for extra safety. Locate the bolts securing the muffler to the lawnmower and loosen them to remove the muffler. Dispose of the old muffler and align the new muffler with the bolts. Attach the new muffler and tighten the nuts. Put the spark plug back in the lawnmower. This muffler is a high-quality metal part that is individually sold. It does not come with hardware. It is designed for use on lawn mowers and lawn tractors manufactured by MTD, Ryobi, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Poulan, and Husky.

The exhaust systems on lawn and garden equipment are just as important as those on a vehicle. They need a good seal to prevent a leak between the carburetor and the exhaust tube, which would allow air leakage that could cause performance issues and loud noise. Over time all exhaust gaskets deteriorate and require a full replacement. It is relatively easy to replace an exhaust gasket and requires only the use of screw drivers, a socket set or a wrench set depending on the device being service. Replacement components such as sockets or screws may also be required during this repair. The gasket surfaces should be cleaned and fully dried before being installed between the carburetor and the exhaust tube. This exhaust gasket works with Toro, Simplicity, Murray and Briggs & Stratton lawnmowers, generators, snowblowers, wood chippers, and lawn tractors. It also works with equipment made by Craftsman, Husqvarna, Cub Cadet, Poulan, Wheel Horse, MTD, Ariens, and more.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This part is a replacement deflector. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or defective deflector in lawn tractors.The deflector ensures the user is safe from flying or expelled debris while using the lawn tractor. This part should be in good working order at all times and should be replaced if broken, detached, or ineffective in any way. When working on or near an engine, it's important to ensure that the equipment is powered off and completely cool before beginning any repairs. For more accurate information on how and where to install this deflector, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This deflector can be used with different models of lawn tractors that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

Shoulder screws are a type of fastener used in many types of lawn and garden equipment. Also called stripper bolts or shoulder bolts, they have a head, threads, and an unthreaded shoulder. These screws are used in areas where items need to be held together in a specific location. They can be used with bearings, bushings, and machinery support. Shoulder screws are made of durable metal but can still experience breakage or damage. When this occurs, the screws will need to be replaced. A wrench can be used to remove the damaged shoulder screw. First, visually inspect the shoulder screw to look for damage or corrosion. Sometimes, the screw will be entirely broken. If any of these things are present, a wrench can be used to remove the old shoulder screw. The same tool can be used to insert a new shoulder screw before reassembling the equipment.Designed for lawnmowers, lawn tractors, tillers, leaf blowers, chainsaws, log splitters, chipper shredders, and snowblowers, this part is compatible with items from Yard Machines, MTD, Cub Cadet, Craftsman, Toro, Huskee, Montgomery Wards, Yard-Man, MasterCut, and Troy-Bilt. The locknut is sold separately.

This replacement part is an exhaust pipe. This is a genuine replacement part made by MTD. This part is commonly found in lawn tractors and is able to expel the exhaust air during use to ensure it moves away from the user while they are on the machine. A new exhaust pipe might be needed if the air being expelled from the machine is not coming from a singular area. If the pipe has become damaged, it might be a good idea to replace it so that the machine can return to working order. Be sure the engine is turned off before replacing this part. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.
