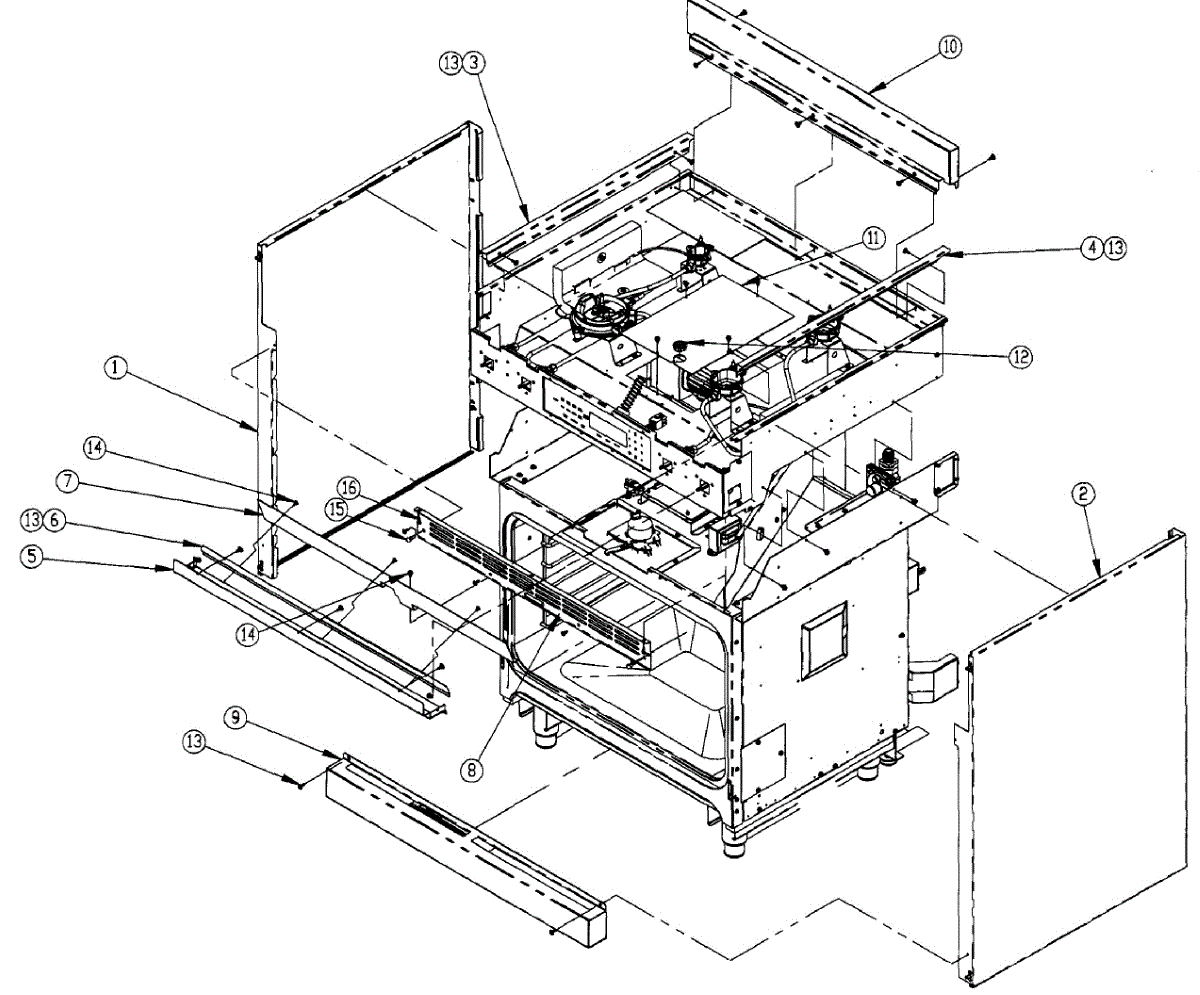

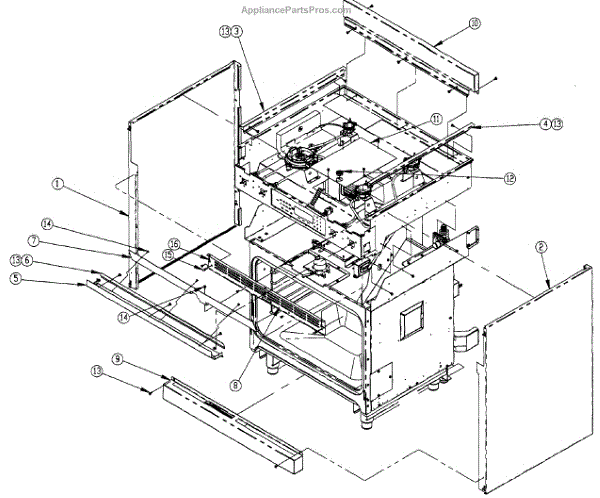

Parts for Dacor DR30DNG: Outer Assembly Parts

This service intake grill is a black replacement trim piece that restores the appliance's intake opening and protects internal components while maintaining proper airflow and appearance. It's a direct-fit cosmetic and airflow panel. What it does:

• Covers and protects the intake opening, preventing debris from entering internal vents
• Helps direct airflow for proper ventilation of internal components
• Replaces cracked, broken or missing grills that can cause rattling or visible damage
• Restores a finished appearance to the appliance's intake area

• Disconnect power to the appliance before beginning any work.
• Remove trim clips or screws holding the old grill; retain any reusable fasteners unless replacements are supplied.
• Align tabs and engage clips carefully to avoid cracking the replacement; press into place until fully seated.

This backsplash assembly restores the rear trim and mounting surface behind the control area, keeping internal components shielded and giving the appliance a finished appearance. Designed as a direct replacement for damaged or missing backsplash panels. What it does:

• Covers and protects control-area wiring and components from lint and debris
• Provides the mounting surface for controls and user interface trim
• Helps restore proper fit and finish after panel damage or during repairs
• Commonly replaced when the backsplash is cracked, bent, or missing

• One backsplash assembly

• Intended for service technicians or experienced DIYers; disconnect power before starting
• Remove adjacent panels or control console as needed for access; follow OEM disassembly steps
• Use appropriate fasteners and gaskets from the OEM to ensure a secure fit

A replacement service screw used to secure appliance panels and components. Durable fastener sized for common service points, making repairs and panel reassembly quick and reliable. What it does:

• Secures trim, access panels, brackets or small components during service and reassembly
• Commonly used where a shallow truss/wafer head is needed to sit flush without catching
• Helps stop rattling or loose parts caused by missing or stripped screws
• Matches OEM fit for compatible assemblies when the OEM part number is required

• One service screw (#8 x 1/2" truss/wafer head) as specified by the OEM part number

• Use the matching size driver to avoid cam-out and head damage
• Hand-start fasteners to avoid cross-threading; tighten until snug — do not overtighten
• Wear safety glasses and disconnect power before working on electrical appliances
• If a screw threads into plastic or thin sheet metal, consider replacing with the same OEM screw to preserve original threads

The Electric Wall Oven Rubber Bumper is essential for maintaining the smooth operation of your Samsung electric wall oven. This genuine OEM part ensures a secure and quiet fit between the oven components, reducing vibrations and preventing wear over time. Crafted from durable materials, the rubber bumper effectively absorbs shocks, enhancing the longevity of your appliance. Installing this rubber bumper helps maintain the precise alignment of your oven door, ensuring it closes properly and operates efficiently. Designed specifically for Samsung electric wall ovens, this part guarantees a perfect fit and easy installation. By replacing a worn or damaged bumper with the Electric Wall Oven Rubber Bumper , you can restore your ovenGÇÖs functionality and enjoy a reliable cooking experience. Trust in this genuine OEM part to provide the quality and performance you expect from your Samsung appliance.
