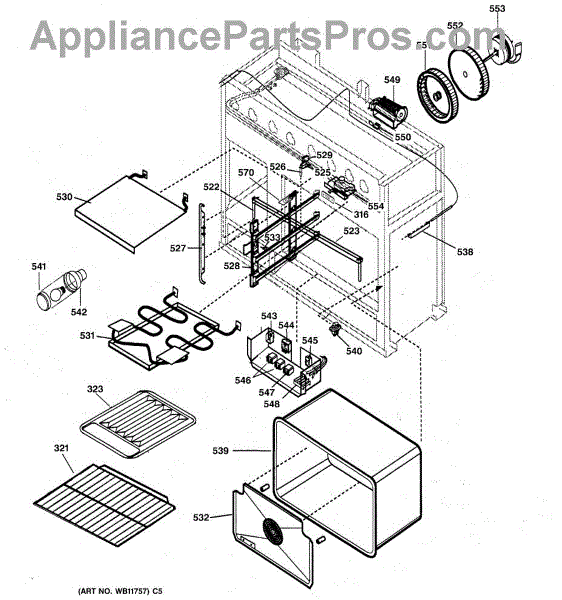

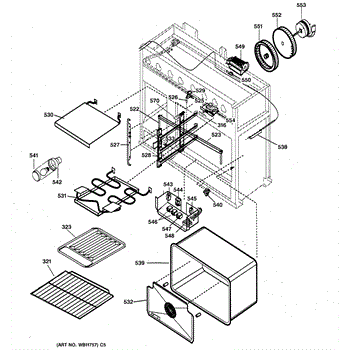

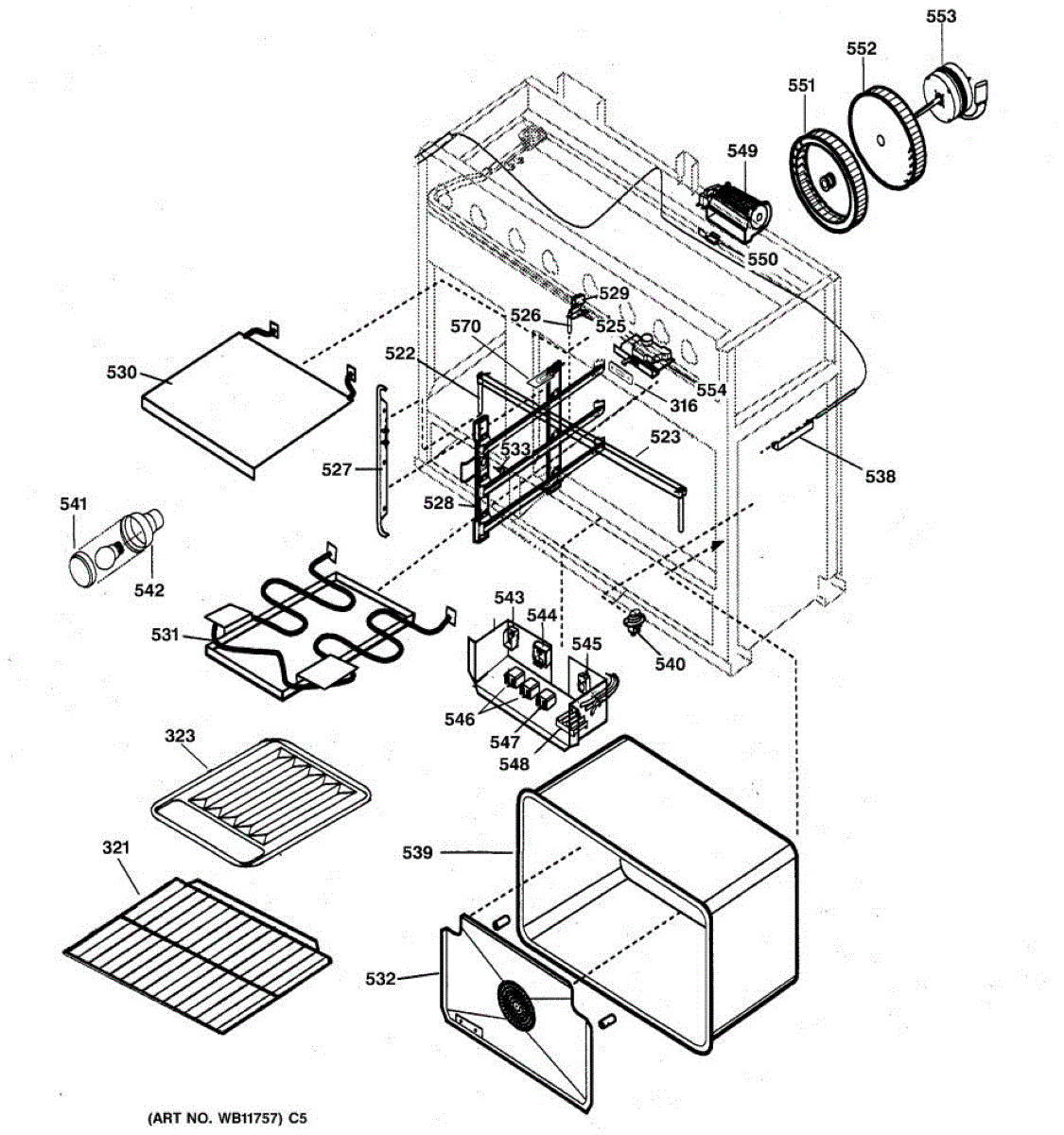

Parts for Ge ZDP36L4DD2SS: 02 - Oven Assembly Parts

This 27" oven broiler pan provides a durable tray for broiling and catching drips, helping keep the oven interior cleaner and supporting even heat under foods. Fits ovens requiring a full-width broiler pan. What it does:

• Catches grease and drippings while broiling to reduce flare-ups and simplify cleanup
• Supports food close to the broiler element for even browning and searing
• Restores proper fit and function when the original broiler pan is damaged, warped, or missing
• Works with standard 27" oven broiler systems designed for full-width pans

• One 27" oven broiler pan (single pan only)

• Slide into the broiler/grate position; no special tools required for most installations
• Ensure the oven is cool and disconnected from power before handling or cleaning
• Inspect for proper fit and stable seating before use; do not use if warped or cracked
• Clean according to oven manufacturer guidelines; avoid abrasive cleaners that could damage finish

This convection baffle directs airflow in the oven to promote even baking and protect internal components from direct heat. It restores proper air circulation and helps eliminate uneven cooking or hot spots. What it does:

• Guides convection fan airflow for more consistent oven temperatures
• Shields the fan motor and internal electronics from heat and debris
• Helps reduce hot spots or uneven baking when damaged or missing
• Replaces a warped, cracked, or missing baffle that rattles or interferes with the fan

• One convection baffle (single replacement part)

• Designed for rear oven mounting; verify orientation before fastening
• Disconnect power to the appliance at the breaker before starting work
• Minimal tools typically required; handle edges carefully to avoid cuts

This replacement 27" oven timer controls the oven clock, timer and clean functions so your range can accurately time cooking cycles and complete self-clean cycles. Restores timed baking, countdown and oven clean control. What it does:

• Replaces the oven's timer/clock control used for setting cook time and monitoring countdowns
• Manages self-clean cycle initiation and timing for compatible 27" ovens
• Restores visible clock and timer display when original control is blank or unresponsive
• Helps address symptoms like oven not starting timed cycles, timer not counting down, or clean cycle failing to initiate

• Disconnect power to the range at the breaker before beginning service.
• Handle the control assembly carefully to avoid damage to the display and connectors.
• Use basic hand tools.

This is a range oven door lock motor. It is a small part that can be found near the upper portion of an oven door. The main function of a range oven door lock motor is to lock the oven when the unit is put into self-cleaning mode, preventing it from opening until the cycle is complete. This part will need to be replaced if it no longer locks properly, or is locking erratically during self-cleaning mode or even locking when it should not be locking at all. Running self-cleaning mode too often or for too long can overheat the door lock, causing it to break.When replacing this part, first ensure that the range is off by unplugging it from its power source. A nut driver set and a screwdriver will be helpful to ensure a swift repair. Protective gloves should be worn for safety during the replacement process. This motorized door lock is designed for a General Electric range oven. This product is also sold as a single unit. It is an authentic OEM replacement part, and it is also sourced directly from the manufacturer.
