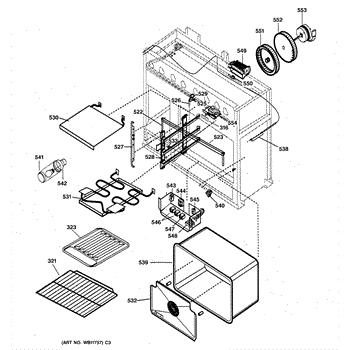

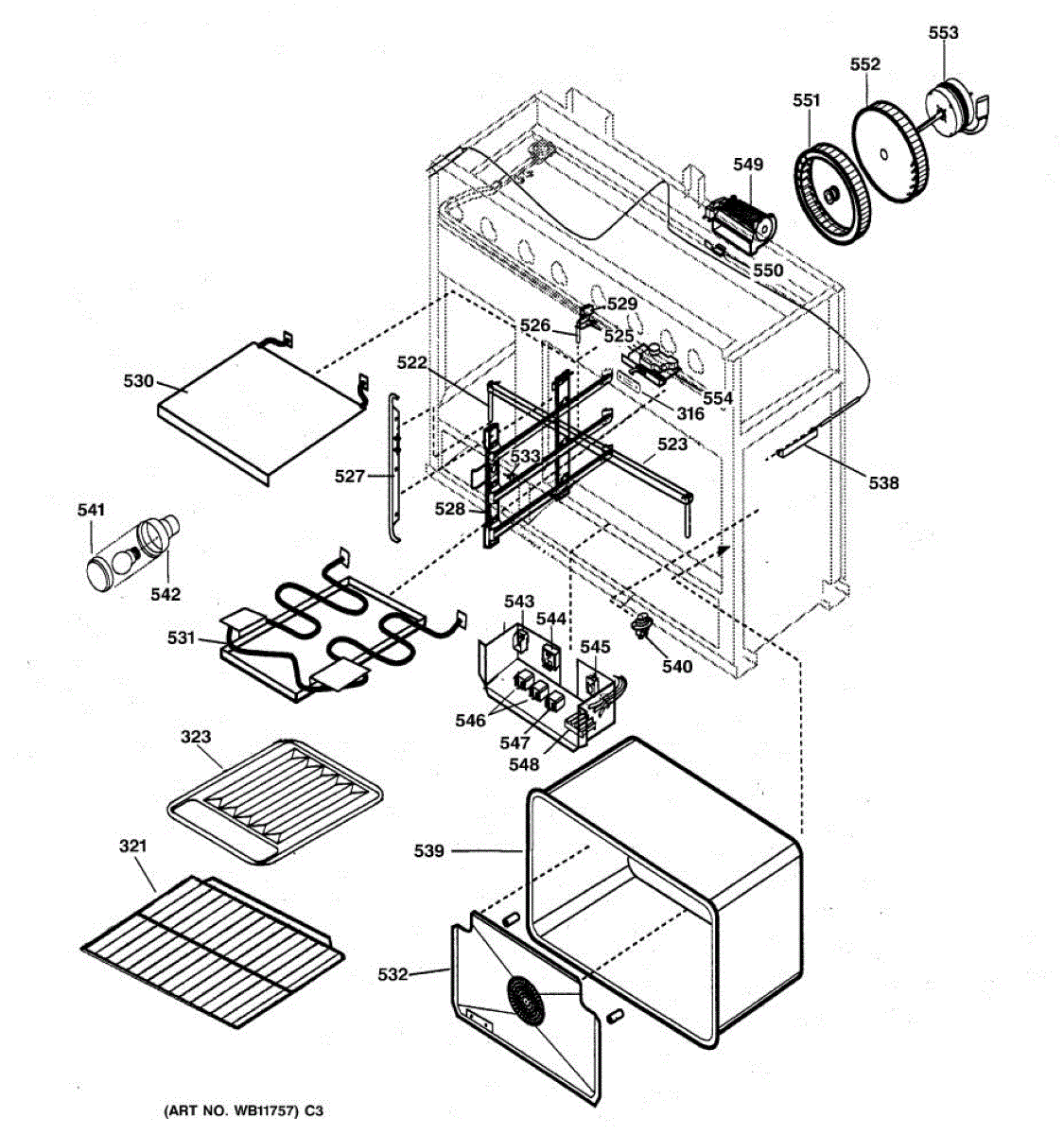

Parts for Ge ZDP36N4RD2SS: 02 - Oven Assembly Parts

27-inch broiler pan for electric ranges. Installs in oven cavity to catch grease and drippings during broiling. Replace if cracked, warped, or missing.

This is a mounting bracket that holds a microswitch in place inside the range. It ensures the switch is properly positioned to detect door closure or other mechanical functions within the appliance. Replace this bracket if it is bent, broken, or missing, which can cause the microswitch to malfunction or fail to register properly.

Replace the left-hand edge guard weld assembly on your range. Protects and finishes edges of the cooktop. Order a new one if cracked, bent, or missing.

This convection baffle directs airflow in the oven to promote even baking and protect internal components from direct heat. It restores proper air circulation and helps eliminate uneven cooking or hot spots. What it does:

• Guides convection fan airflow for more consistent oven temperatures
• Shields the fan motor and internal electronics from heat and debris
• Helps reduce hot spots or uneven baking when damaged or missing
• Replaces a warped, cracked, or missing baffle that rattles or interferes with the fan

• One convection baffle (single replacement part)

• Designed for rear oven mounting; verify orientation before fastening
• Disconnect power to the appliance at the breaker before starting work
• Minimal tools typically required; handle edges carefully to avoid cuts

A threaded fastener that secures oven rack support brackets to the oven wall, allowing racks to slide in and out smoothly. Located on the side walls inside the oven cavity, replacement is needed when screws are stripped, corroded, or missing causing rack instability.

Fix a non-functioning oven clock, timer, or self-clean cycle with this range oven timer control board. Restores timed baking and countdown features.

Fix an oven door that won't lock during self-cleaning cycle with this door lock motor. Installs near the upper door frame to secure closure.
