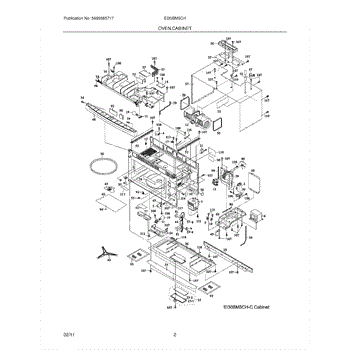

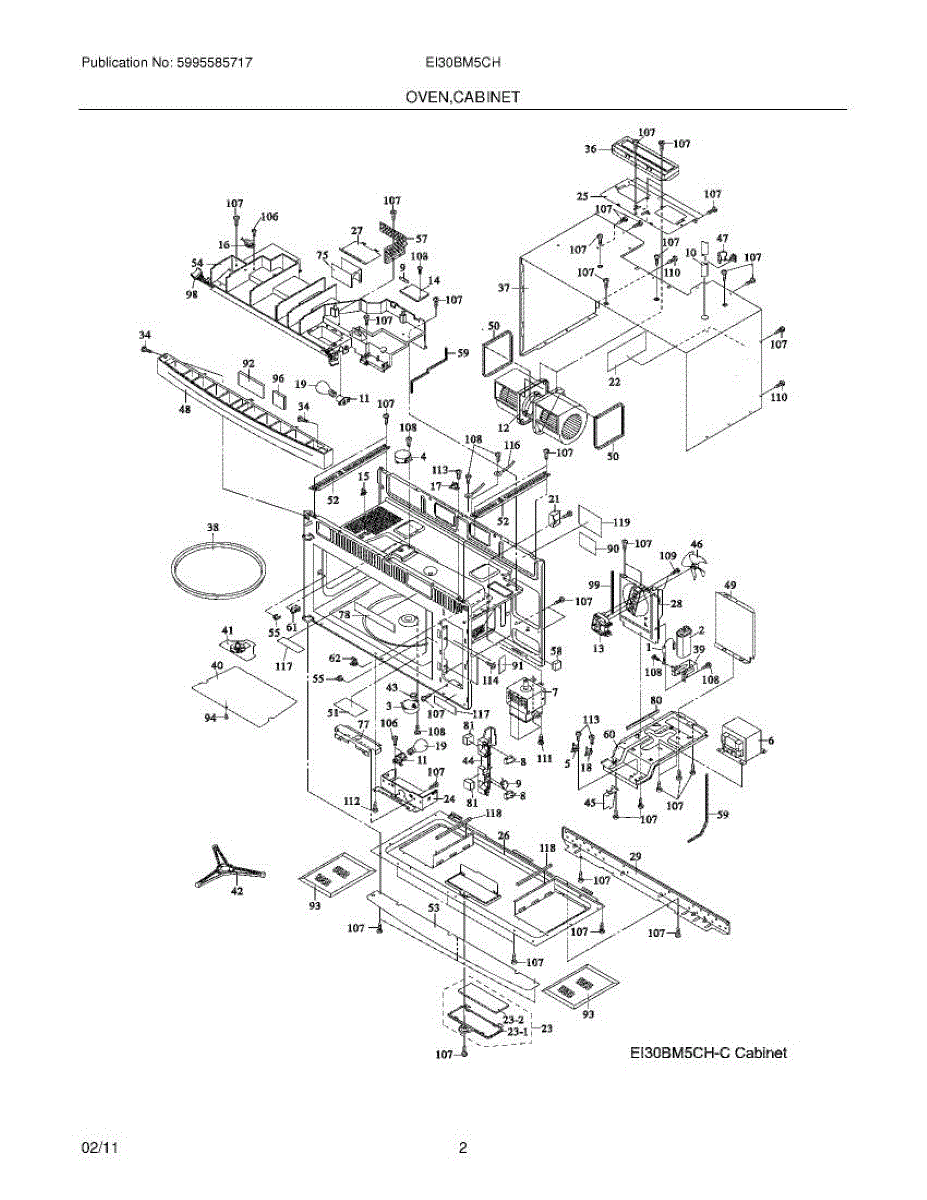

Parts for Electrolux EI30BM5CHBC: 03 - Oven, Cabinet Parts

This rectifier is the microwave's high-voltage diode. It converts AC to DC in the high-voltage circuit so the magnetron can heat. Replacing a failed rectifier can restore reliable heating performance.

• Converts alternating current to direct current in the microwave's high-voltage circuit
• Works with the transformer and capacitor to power the magnetron
• A failed rectifier can cause no heat while the unit runs, intermittent heating, or unusual humming
• Blocks reverse voltage to help protect high-voltage components

• Disconnect power before servicing; microwaves contain high-voltage circuits
• The high-voltage capacitor can retain a dangerous charge even when unplugged—discharge per service procedures
• Observe polarity and match the original orientation during installation
• Route and secure leads as originally installed to avoid arcing or damage

This control switch regulates heat to a surface burner so the cooktop reaches and holds the selected temperature. Restores responsive burner control and consistent cooking performance. What it does:

• Sends variable power to a surface burner to adjust heat levels as you set the knob
• Commonly replaces a switch that causes a burner to stay cold, not heat, or only work at one setting
• Can fix clicking, intermittent operation, or loss of variable control on the affected element
• Works with the cooktop's control knob and wiring harness to manage element output

• One replacement infinite burner control switch

• Disconnect power to the appliance before beginning any work
• Remove the cooktop or control panel as needed to access the switch; keep track of mounting hardware
• Match wire locations and connector orientation when reattaching harness; take a photo first if helpful

The Door Switch is an OEM replacement part for Frigidaire wall ovens. It is a component located on the oven door that detects when the door is opened and closed. The door switch works alongside the control board to regulate oven operations based on door position.

Symptoms of a bad door switch can include:

• Oven failing to automatically go into bake or warm modes after door closure
• Interior lights not turning on when the door is opened
• Control buttons/display remaining constantly lit instead of dimming
• Oven not heating or functioning properly in different modes

Causes relate to normal wear over extended use as the door switch mechanism cycles with frequent door openings and closings. Moisture exposure or impacts could also degrade switch performance.

This OEM Frigidaire switch is compatible with Amana, Jenn-Air, KitchenAid, and some Electrolux wall oven models as well.

This is a replacement refrigerator water filter cartridge that helps reduce taste and odor from your drinking water and ice for cleaner, better-tasting results. Ideal for refrigerators that use an inline/cartridge-style filter. What it does:

• Filters chlorine taste and odor to improve water and ice flavor
• Helps reduce common particulates and sediments from the water flow
• Restores normal water dispensing performance when the original filter is exhausted
• Commonly replaced when water tastes off, ice smells, or water flow is reduced

• Replace with the refrigerator powered off or water supply shut off when possible
• Follow refrigerator manufacturer instructions for proper seating, alignment, and filter reset
• Flush several gallons of water through the dispenser after installation to clear air and loose carbon fines
• Dispose of the used cartridge according to local regulations

This interior refrigerator lamp provides reliable lighting inside the fresh-food compartment so you can see contents clearly. It replaces a dim or non-working lamp to restore normal interior illumination. What it does:

• Provides interior lighting for the refrigerator compartment
• Replaces a burned-out, flickering, or intermittently working lamp
• Helps you find food and check expiration labels without opening the compartment longer than necessary
• Works with the existing lamp housing and socket when compatible

• One interior refrigerator lamp

• Disconnect power to the appliance before replacing the lamp to avoid electrical shock
• Allow the lamp and surrounding area to cool before handling
• Handle the lamp carefully to avoid breakage; dispose of broken bulbs per local regulations
• Check the socket and appliance light switch for faults if the lamp does not light after installation.

This original wiring diagram is the appliance's printed electrical schematic, giving a clear reference to wire routing, connector ID, and circuit layout to help with safe diagnosis and parts replacement. What it does:

• Provides the factory electrical schematic for the appliance to identify wire colors, terminal numbers, and component connections
• Helps troubleshoot electrical faults by showing how components are wired together
• Serves as a reference when replacing controls, harnesses, or connectors
• Restores a missing, torn, or illegible schematic that came attached to the appliance

• One wiring diagram (schematic) sheet as shown

• Always disconnect power to the appliance before accessing electrical components
• This is a reference document; follow appliance service manual and safety procedures for actual repairs
• Affix the diagram where original schematic was located or keep it with service documentation for future use

A small 3mm x 8mm fastener used to secure panels, brackets, and small components. Replacing a missing or damaged screw helps restore proper fit and reduces vibration or loose parts. What it does:

• Secures trim, panels, brackets or small component mounts.
• Keeps parts aligned so doors and panels fit correctly.
• Stops rattling or vibration caused by loose hardware.
• Useful when a screw is stripped, missing, or damaged.

• Disconnect power or unplug the appliance before you service it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Thread the screw in by hand first, then snug—do not overtighten.
• Keep small parts away from children and dispose of old fasteners properly.

This damper assembly controls airflow between the freezer and refrigerator compartments to help maintain even temperatures. Replaces a faulty damper to restore proper cold-air distribution and reduce temperature imbalances. What it does:

• Opens and closes to regulate cold air flow from the freezer into the fresh-food compartment.
• Commonly used when the refrigerator section is too warm while the freezer remains cold.
• Can stop excessive air flow that causes frost build-up or noisy operation.
• Works with the fridge's control system to modulate compartment temperatures.

• One damper assembly

• Disconnect power before starting work to avoid electrical hazard.
• Access typically through the fresh-food or freezer interior; remove panels as needed.
• Handle the actuator and wiring carefully; ensure connectors are fully seated.
• Test operation after installation and reassemble panels securely.

This glass turntable tray provides a stable, heat-resistant surface that rotates food inside the microwave for more even cooking and reheating. It replaces a damaged or missing tray to restore proper rotation and support. What it does:

• Supports plates, bowls and containers while the microwave's turntable motor rotates them for even heating.
• Transfers rotation from the drive coupling through the roller/guide assembly to the glass tray.
• Restores stable, level rotation when the original tray is cracked, chipped, or missing.
• Helps prevent food spills inside the cavity by providing a flat, easy-to-clean surface.

• One glass turntable tray.

• Handle the glass carefully to avoid chips or cracks; wear gloves if necessary.
• Place tray onto the roller/guide and align with the drive coupling; it turns freely before use.
• Clean with mild detergent and non-abrasive cloth; do not use if the glass is cracked or severely chipped.
• If rotation problems persist after replacing the tray, check the roller/guide and drive coupling for wear.

This support assembly secures and stabilizes an appliance component to the cabinet or frame, restoring proper alignment and reducing vibration. Ideal when a broken or worn support causes movement or instability of the affected area. What it does:

• Provides structural mounting to keep panels, controls, or other components properly aligned.
• Reduces vibration, rattling, or visible sagging caused by a failed or loose support.
• Restores reliable attachment after damage, deformation, or worn mounting points.
• Matches OEM diagram locating for direct-replacement fit when replacing the faulty part.

• Disconnect power and unplug the appliance before starting any repair.
• Follow the OEM diagram for correct placement and fastener locations.
• Use appropriate hand tools and wear gloves to avoid sharp edges; inspect surrounding mounting hardware and replace if damaged.

This latch hook secures the refrigerator/freezer door, helping keep it closed for proper cooling and efficient operation. Replace a worn or broken latch hook to restore a tight door seal and reliable door closure. What it does:

• Engages with the strike or catch to hold the door closed
• Prevents unintended door opening that can cause temperature loss
• Restores smooth latching action when the original hook is damaged or bent
• Simple mechanical part—no electronics or wiring

• One latch hook

• Disconnect power to the appliance before beginning any repair
• Remove the inner door panel or access trim as needed to reach the latch area
• Use appropriate screwdrivers; keep fasteners organized for reassembly
• Test the door closure after installation to ensure proper alignment and seal

This clear light lens covers and protects the interior lamp, directing and diffusing light inside the appliance for better visibility. It replaces a cracked, yellowed, or missing lens to restore even interior illumination. What it does:

• Protects the interior lamp from spills, steam, and physical contact
• Diffuses and directs light for more even illumination inside the compartment
• Restores visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct contact with the bulb for safer operation

• Disconnect power to the appliance before starting any work
• Allow the bulb to cool completely before removing the old lens
• Handle the lens gently to avoid cracking; align tabs or clips and snap into place
• If the lens uses screws, tighten securely but do not overtighten to avoid cracking

A small rubber cushion that cushions and isolates moving parts to reduce noise, vibration, and wear. Fits where a soft bumper or spacer is required to protect surfaces and keep components aligned. What it does:

• Absorbs shock and reduces rattling between parts
• Prevents metal-to-metal contact that can cause noise or wear
• Keeps panels, doors, or assemblies properly spaced and aligned
• Helps stabilize components during operation

• One rubber cushion/buffer

• Turn off and unplug the appliance before servicing to avoid shock or injury
• Inspect the mounting area and clean debris before installing the cushion
• Press or snap the cushion into place; if fasteners are required, use the OEM-specified screws or clips

This small rubber cushion cushions contact points to reduce vibration and prevent metal-on-metal noise or surface wear. It restores quiet, stabilizes moving parts, and helps maintain proper alignment for smooth operation. What it does:

• Acts as a soft bumper between components to absorb shock and reduce rattling.
• Prevents direct contact that can cause scratches, chipping, or wear.
• Helps maintain proper spacing and alignment of panels or assemblies.
• Commonly replaced when torn, flattened, hardened, or missing.

• Designed for a simple swap; remove the old cushion and press the new cushion into place.
• Inspect the mounting surface for debris or damage before installing.
• Use basic hand tools only; disconnect power/unplug appliance if servicing near electrical connections.
• If adhesive is present, allow any adhesive to set according to the adhesive manufacturer's instructions.

This replacement identification label provides the appliance's printed identification and specification info so you can model/serial and ratings at a glance. It restores missing or damaged factory markings for accurate identification. What it does:

• Displays printed identification and specification details used for service and parts lookup
• Helps model/serial and electrical or safety ratings typically found on the appliance
• Useful when original label is faded, torn, or missing and you need clear factory markings
• Keeps essential identification information visible for owners

• Clean and dry the mounting surface before applying; remove oils or residue
• Peel backing and press firmly; align carefully—adhesive is permanent
• Avoid stretching or creasing the label during installation

This adhesive label replaces worn or missing identification and informational markings on the appliance, restoring readable factory markings and safety/usage info. It's a simple cosmetic replacement that helps keep your appliance clearly labeled. What it does:

• Replaces faded, torn, or missing identification or information labels
• Restores readable model/serial/usage markings and safety information
• Helps owners identify the appliance and service parts
• Prevents confusion from illegible or absent labels during maintenance

• Clean and dry the surface thoroughly before applying; remove grease and debris
• Align the label carefully, then press firmly from one edge to the other to avoid bubbles
• Apply at room temperature for best adhesion; allow adhesive to set before use
• Dispose of old label according to local regulations; avoid inhaling adhesive fumes

The Grease Filter is an OEM replacement part for Frigidaire microwaves. It traps grease-laden smoke and particles released from cooking. Color: silver. Measures about 6 inches wide by 8 inches deep.

Causes of a bad grease filter can include clogging from accumulated grease and debris, physical damage from cleaning or handling, or wear and tear over time. A clogged or damaged filter can reduce the efficiency of the range hood, leading to poor ventilation and potential damage to the range hood motor.

Symptoms of a bad grease filter include:

• Reduced airflow or suction
• Excessive smoke or odors during cooking
• Grease buildup on kitchen surfaces
• Visible damage or clogging of the filter

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This small mounting retainer clip secures panels and components in place on your appliance, helping keep parts aligned and reducing rattles. A simple replacement when a worn or broken clip allows loose or misaligned panels. What it does:

• Holds trim, panels, or wiring channels in position to prevent movement and noise
• Restores proper fit where a cracked or missing clip lets parts sag or separate
• Helps maintain seals and component alignment for normal operation
• Works as a direct-fit replacement clip used on specified Frigidaire assemblies

• One mounting retainer clip

• Disconnect power before starting any repair to avoid shock or injury
• Access the clip location by removing the outer panel or trim per your model's service instructions
• Remove the broken clip and press or snap the replacement into the existing mounting slot until fully seated
• If fasteners are present, reuse OEM screws; do not force clips into damaged plastic

Replacement screw used to secure panels, trim, and internal components in Frigidaire appliances. Restores proper fit after repairs and helps eliminate rattling or loose parts for safer, quieter operation. What it does:

• Secures panels, brackets, and trim to maintain correct alignment and fit
• Prevents vibration and rattling caused by loose or missing fasteners
• Use when original screw is missing, stripped, or damaged
• Matches common fastener locations on affected Frigidaire appliances

• Disconnect power and water before starting any repair
• Use the correct driver to avoid stripping the screw head; hand-start to ensure alignment
• Do not overtighten; tighten until snug to avoid damaging threads or plastic parts

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

• Secures panels, brackets, or trim to prevent movement and vibration
• Stops rattling or loose parts caused by missing or damaged screws
• Restores proper fit and alignment of the affected assembly
• Works wherever the OEM-designated screw of this size and thread is required

• Turn power off or unplug the appliance before working on electrical areas
• Use the proper-size driver to avoid stripping the head
• Start threads by hand, then tighten until snug — do not overtighten
• If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing

This is a replacement information label used to display model, serial, wiring, and safety information on the appliance. It restores legible identification and safety markings so service and ownership details remain visible. What it does:

• Provides appliance identification and manufacturer information for service and records
• Displays safety warnings and basic operating or wiring notes as printed on the original
• Restores a worn, torn, or missing decal so important information is readable

• Clean and dry the mounting surface before applying for best adhesion
• Align carefully; labels are typically adhesive-backed and are not reusable once removed
• If servicing electrical components nearby, disconnect power before beginning work
• For exact placement, match the new label to the original location on the appliance
