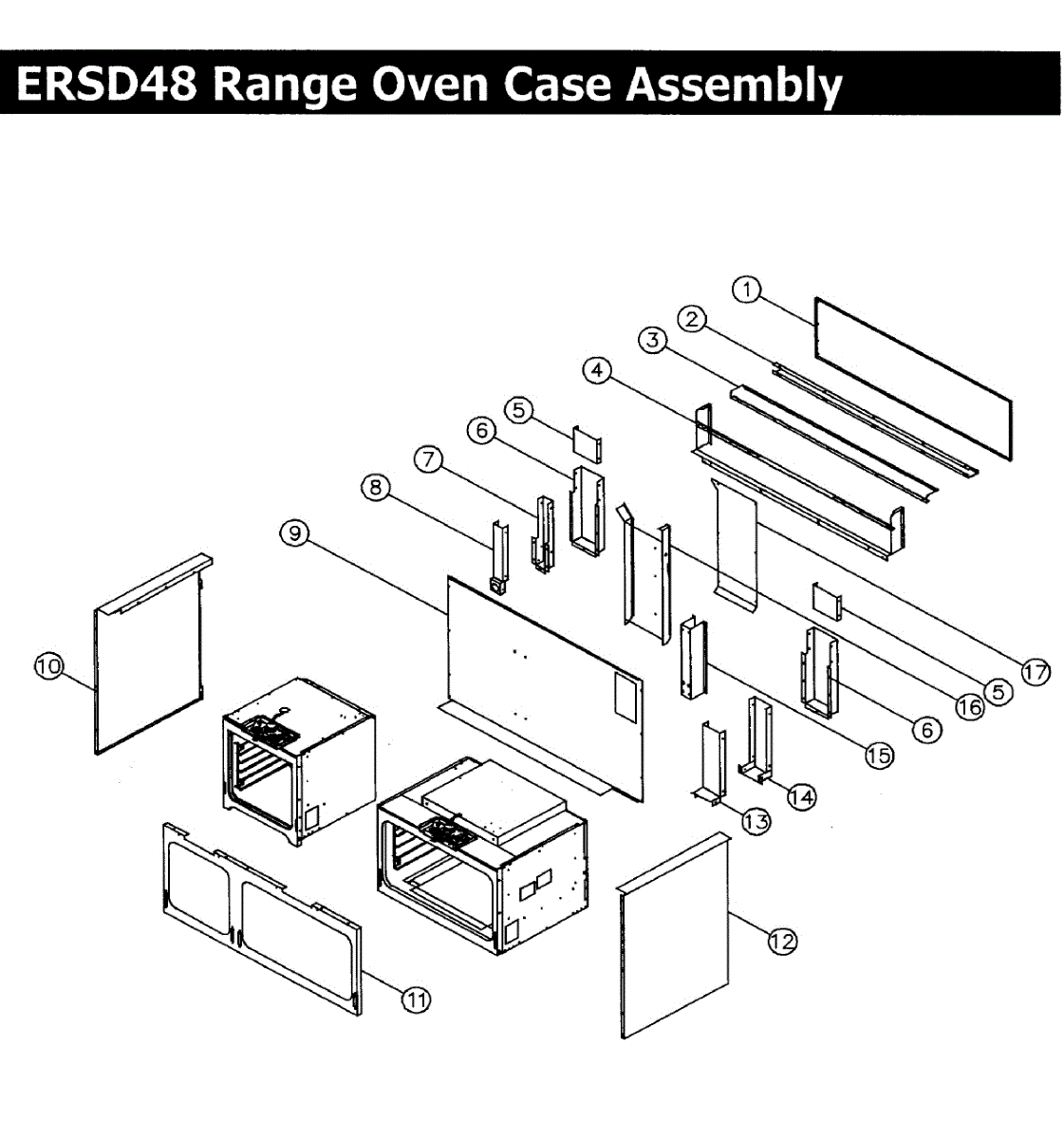

Parts for Dacor ERSD48NGH: Oven Case Parts

This backsplash assembly replaces the rear backguard panel on compatible ranges and wall ovens, restoring the appliance's finished rear surface and protecting internal components from heat and spills. It's a direct-fit structural and cosmetic rear panel. What it does:

• Covers and protects control and vent openings at the rear of the cooking appliance
• Restores a finished exterior appearance after panel damage or replacement
• Helps shield internal wiring and components from grease, heat, and splashes
• Supports proper airflow and vent alignment when installed correctly

• One backsplash assembly

• Designed for direct replacement—part number matches the original before installing
• Disconnect power (or gas supply where applicable) and ensure the appliance is cool before starting
• Installation may require removal of the cooktop or rear access panels and basic hand tools

This service back cover protects the appliance's rear components and provides a finished outer surface for safe operation. It restores protection and helps reduce dust, debris, and accidental contact with internal parts. What it does:

• Covers and shields internal components mounted at the appliance rear to prevent contact and contamination
• Helps maintain proper airflow routing and reduces access to wiring and connectors
• Reduces noise by providing a stable outer panel for the rear area
• Commonly replaced when the original cover is damaged, cracked, or missing

• Always disconnect power (unplug or switch off breaker) before starting repairs
• Handle edges carefully; back covers and mounting openings can have sharp metal edges
• Use existing screws or replace with OEM-recommended fasteners; verify fit before final installation

This is the right-hand service side panel that replaces a damaged or worn exterior panel to restore the appliance's finish and protective enclosure. It keeps internal components covered and helps maintain the appliance's original appearance. What it does:

• Replaces a cracked, dented or corroded right side exterior panel
• Protects internal components from dust and incidental contact
• Restores the appliance's finished look and prevents sharp exposed edges
• Helps maintain proper airflow pathways by returning the cabinet to its intended shape

• Disconnect power to the appliance before starting any repair.
• Remove trim and fasteners as required; keep hardware for reinstallation.
• Handle panel edges carefully to avoid cuts; use gloves.

This left service side panel replaces a damaged or missing inner side panel to restore support and protect internal components. It helps maintain proper fit and appearance while allowing access for service when needed. What it does:

• Provides a finished protective barrier along the refrigerator/freezer side to shield wiring and components
• Restores proper internal spacing and panel alignment for reliable operation
• Helps prevent debris and moisture from reaching internal parts
• Useful when the original side panel is cracked, warped, or removed during repairs

• One left service side panel

• Intended for technicians or experienced DIYers;
• Power off and unplug appliance before beginning any work
• Handle panel carefully to avoid scratching; use appropriate fasteners as specified by OEM

This service bracket replaces the rear mounting/cover bracket that supports and protects internal components. It restores proper rear-panel alignment and helps keep wiring and parts secure for reliable operation. What it does:

• Secures the appliance's rear panel and internal assemblies in place
• Protects wiring and components from abrasion or contact with the cabinet
• Helps restore proper fit and alignment after repair or damage
• Can reduce rattles or movement caused by a loose/replacement rear bracket

• One service bracket, as shown

• Disconnect power before beginning
• Handle sharp sheet-metal edges with care and wear gloves
• Reuse original fasteners when possible; replace damaged clips or screws
• Verify panel alignment and secure all fasteners before restoring power
