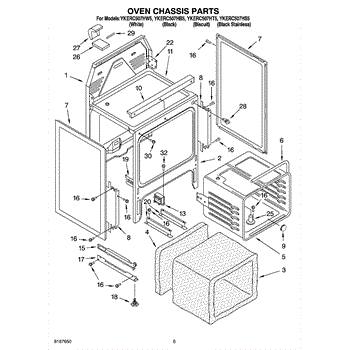

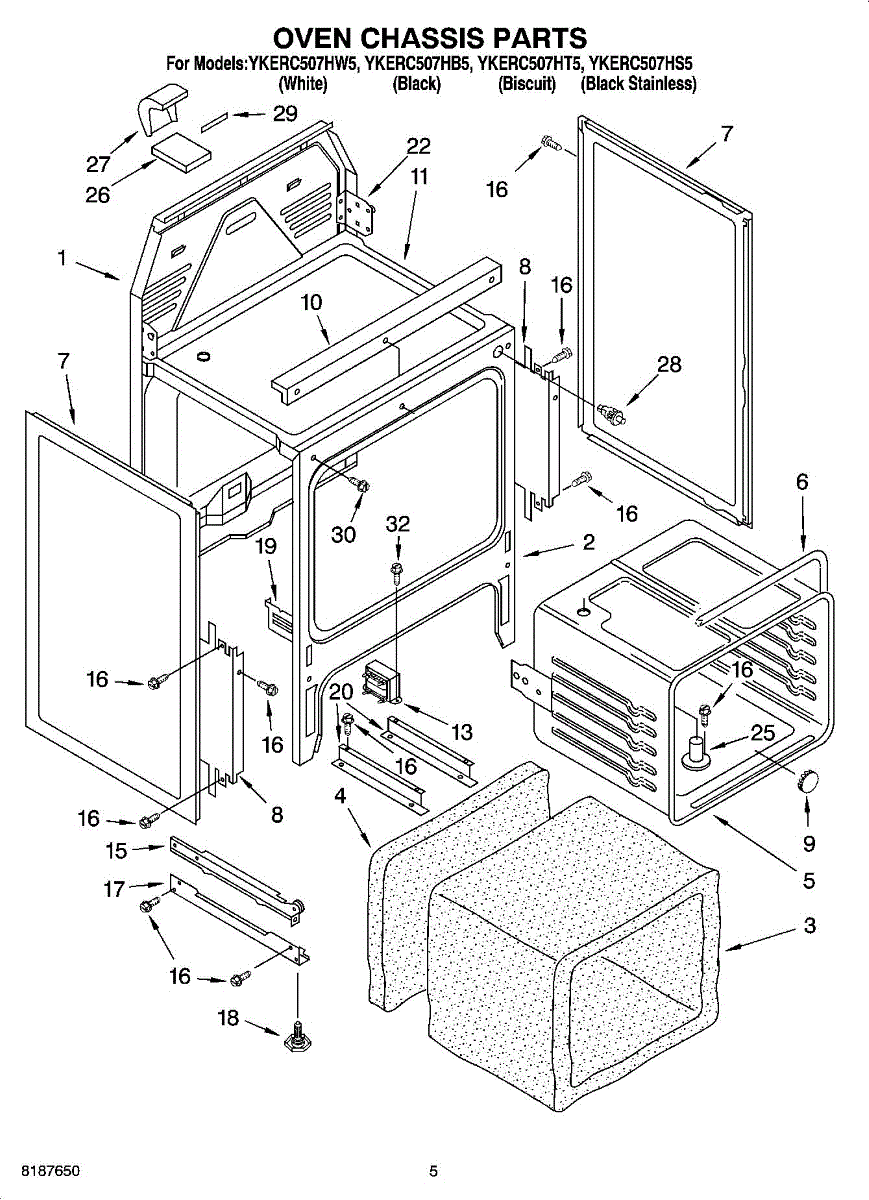

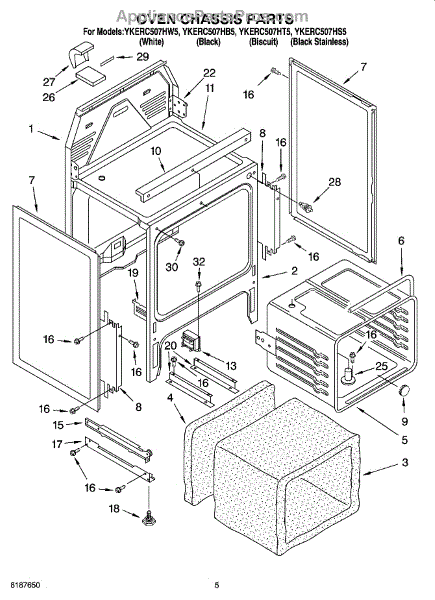

Parts for Whirlpool YKERC507HS5: 04 - Oven Chassis Parts

Color: White.

Color: Black.

13.0 mm.

This replacement transformer steps down household 120VAC, 60Hz power to the low voltage used by the appliance's electronic control. Replacing a failed transformer can restore power to the display/clock and control circuits so cooking functions respond properly. What it does:

• Converts 120VAC line power to low-voltage for the control board/clock and related circuits
• Helps provide stable power to the display and control relays
• Helps resolve: blank or intermittent display, unresponsive controls, oven not starting, or visible heat damage to the original transformer

• One transformer

• Disconnect power at the breaker before servicing; verify no voltage is present
• Note and label all wire positions or take photos before removal; transfer connections one-for-one
• Mount securely and route leads away from sharp edges and hot surfaces
• Inspect wiring and the control board for shorts before restoring power

This is the left side drawer rail. For right side use 9750224.

This is the right side drawer rail. For left side use 9750223.

Mounting screw for securing components in compactors, cooktops, dishwashers, and ranges. Replace if screw is stripped, missing, or damaged.

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

Works for both left and right sides.

Door light switch.

Size: 8 x 3/8 inch.

Size: 8 x 3/8 inch.
