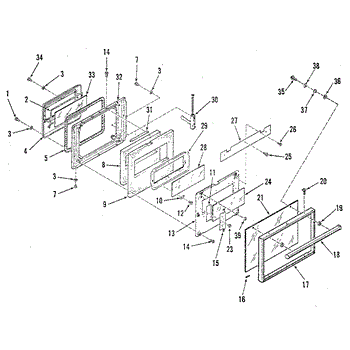

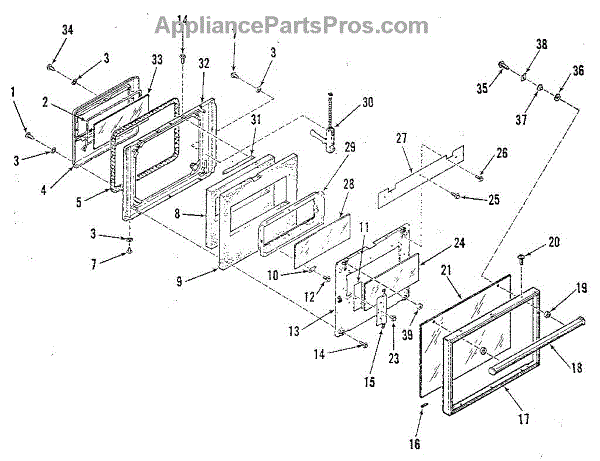

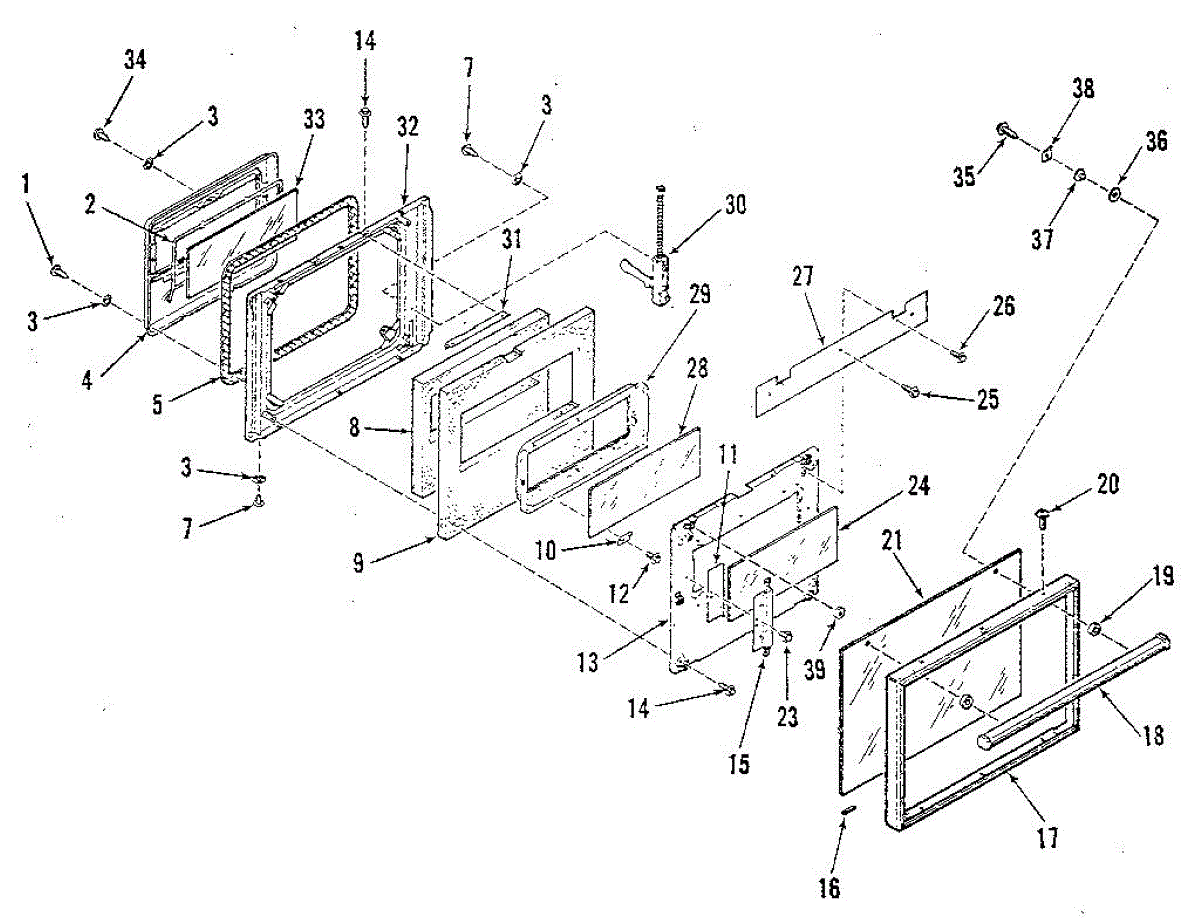

Parts for Kenmore 911.4088896 (9114088896, 911 4088896): Oven Door Section Parts

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This inner oven door glass seal cushions and seals the inner glass pane inside the door, helping contain heat and keep the glass stable and quiet. Replace a cracked or flattened seal to maintain safe, consistent oven performance.

• Seats and cushions the inner door glass panel
• Seals the perimeter of the pane to limit heat and air leaks
• Helps prevent debris and moisture between glass layers
• Can reduce rattling or shifting of the inner glass
• When worn, contribute to longer preheat times or temperature inconsistency

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the oven to cool completely.
• Remove the door and separate the inner panel per your service instructions.
• Note the seal's routing and orientation; install the new seal without stretching or twisting.
• Wear cut-resistant gloves and handle glass carefully during reassembly.

This oven door gasket runs around the door perimeter to seal the oven cavity. Replacing a worn seal restores proper heat retention for faster preheat, steadier temperatures, and more consistent cooking results.

• Provides the heat-resistant seal between the oven door and oven cavity
• Helps maintain set temperature and overall cooking performance
• Wear can cause heat escaping at the door, longer preheat, temperature swings, and uneven baking
• Cracks, fraying, flattening, or hardened spots indicate it's time to replace

• Disconnect power and shut off gas; let the oven cool completely
• Open the door and note the routing of the original gasket
• Remove the old seal and clean the channel/retainers; install the new gasket without stretching it
• Ensure corners are fully seated and the door closes evenly; refer to your model's service manual for specifics

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

Package of 12
