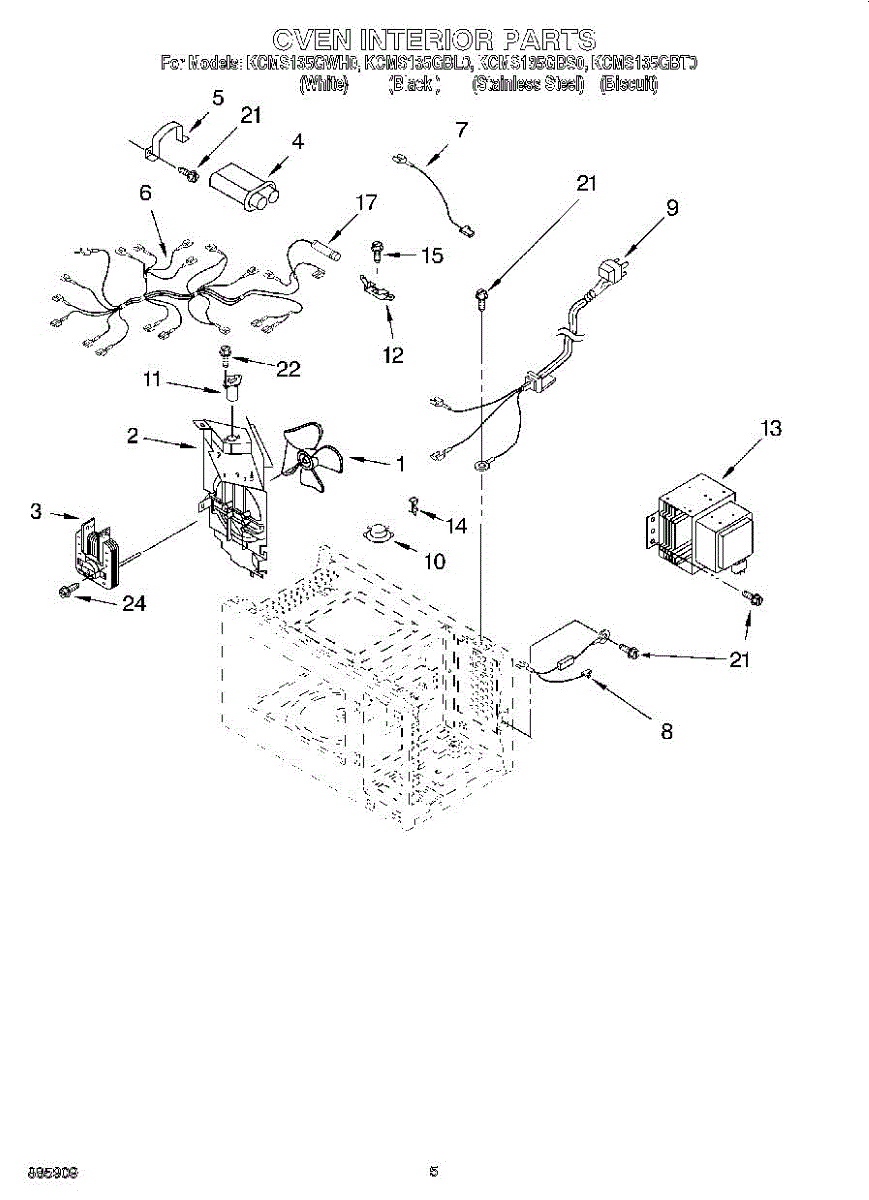

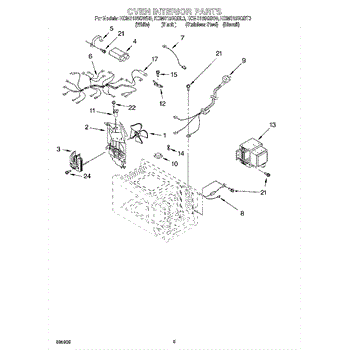

Parts for Kitchenaid KCMS135GBL0: 05 - Oven Interior, Literature Parts

This capacitor stores and releases electrical energy to help power your microwave's magnetron and other components. It works with the transformer to provide the high voltage needed for microwave operation. If your microwave won't heat food, makes unusual noises, or trips circuit breakers, a faulty capacitor is often the cause.

This is a high voltage diode wire assembly used in the microwave's power circuit. It works with the capacitor and magnetron to convert electrical current and generate microwave energy for cooking. Replace this part if the microwave runs but does not heat, or if the diode has visibly burned or shorted out.

This is a genuine replacement screw used to fasten appliance panels, trim, and components. It restores secure attachment and helps eliminate rattles or loose parts for safe, reliable operation. What it does:

• Secures panels, brackets, trim pieces, or internal components
• Stops vibration-related noise caused by loose or missing fasteners
• Restores proper alignment and fit of assembled parts
• Provides the correct thread and length for the intended factory location

• One screw

• Use the correct screwdriver or bit to avoid stripping the head
• Hand-start the screw to ensure correct thread engagement before final tightening
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working in areas near electrical components

Microwave won't turn on or has no power? A blown fuse is often the cause. This safety fuse protects circuits from shorts. Requires cover removal to replace.

Fastener screw

Mounting screw for dryers. Secures panels, components, or housing. Replace if stripped, missing, or damaged during disassembly and repair work.
