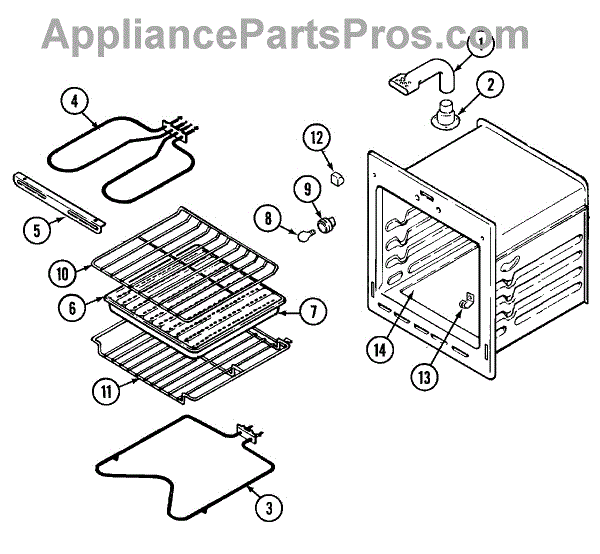

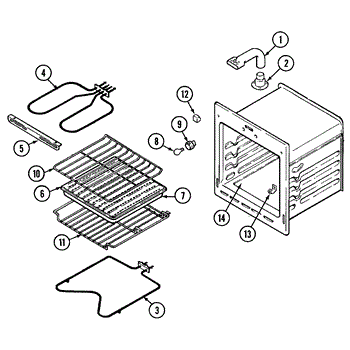

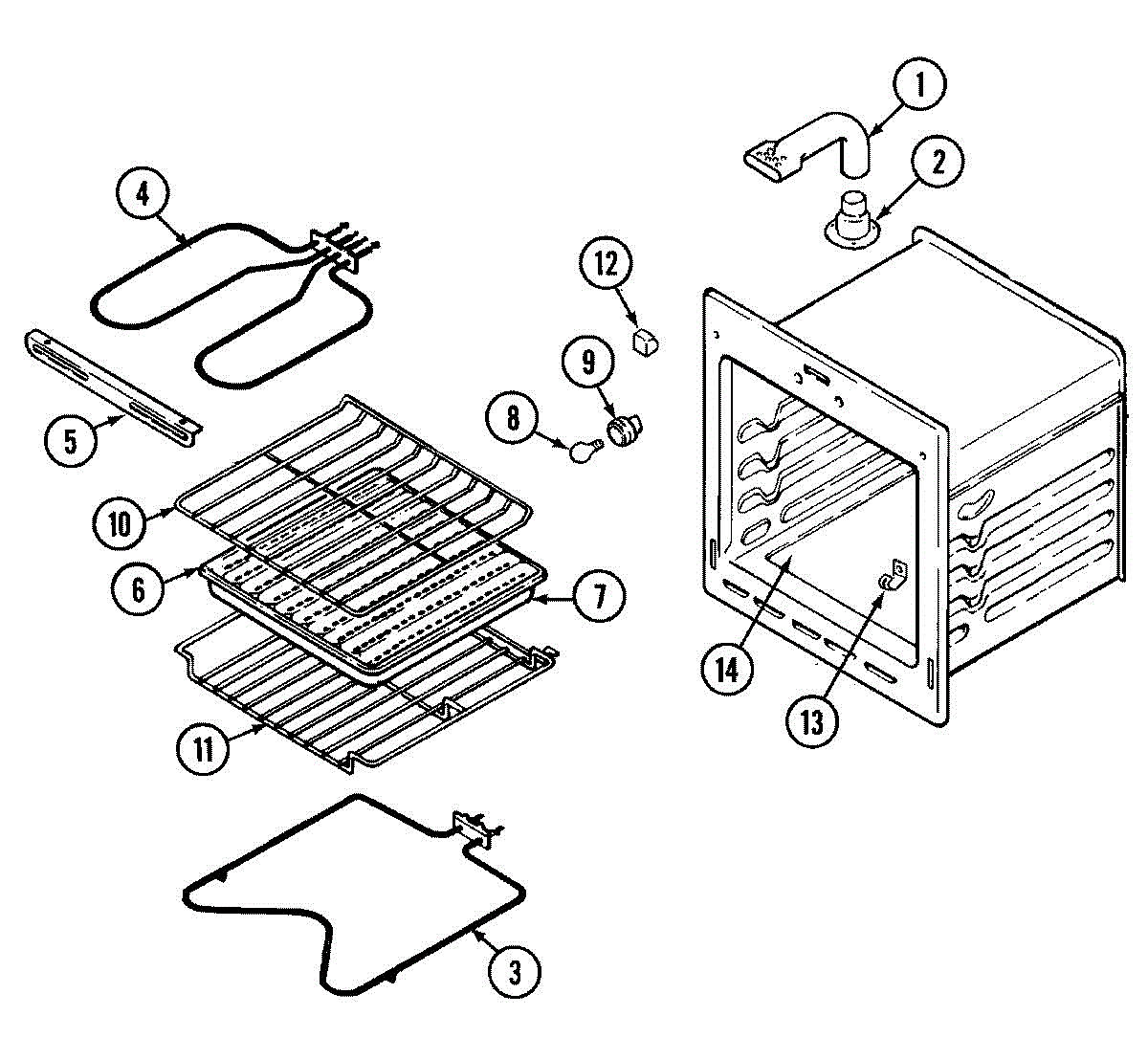

Parts for Magic Chef 9612WUV: 05 - Oven Parts

The Range Element Kit is an OEM part for Whirlpool ranges. This kit typically includes elements used for heating the oven or stovetop, ensuring efficient and even cooking or baking. The element measures 16" wide and 16" from the mounting plate to the other side. The terminal depth is 3", and the total element length is 19". It is rated at 2100 watts and 240 Volts.

Over time, heating elements can become worn out or damaged due to repeated use, exposure to high temperatures, or electrical issues. A malfunctioning element can lead to uneven cooking, longer cooking times, or the range not heating up at all.

Symptoms of a bad Range Element include:

• The element not heating up
• Uneven cooking or baking results
• Visible damage such as burns or breaks in the element
• Sparks or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Element is an OEM part for Whirlpool ranges. This part provides the intense, direct heat necessary for broiling. This part is located at the top of the oven cavity and is essential for achieving high temperatures needed for tasks like browning and searing.

Causes of a bad broil element can include electrical issues such as short circuits, damage from spills or food debris, and general wear and tear from repeated use.

Symptoms of a bad Broil Element include:

• The oven not reaching broil temperatures
• Inconsistent or uneven broiling
• The element not glowing red when in use
• Visible signs of damage or burning on the element

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Color: chrome. Measures about 18 inches wide by 17 inches deep.

This mounting clip secures a thermostat, temperature sensor, or capillary bulb in the correct position so it can sense temperature accurately and control the appliance. Replacing a damaged or missing clip helps prevent loose components and erratic readings. What it does:

• Holds the thermostat or sensor firmly against its mounting surface for proper thermal contact
• Helps maintain stable, accurate temperature regulation
• Replaces a bent, broken, or missing clip that won't hold securely
• Common symptoms include a dangling sensor/bulb, rattling, or inconsistent temperature response

• 1 clip

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely before service
• Access the thermostat/sensor area and note original orientation and routing
• Move the component into the new clip and secure it at the original mounting location
• Avoid kinking a capillary tube or damaging sensor leads; the clip is fully seated

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This part has been discontinued by the manufacturer and is no longer available.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing
